Home >> Pontiac >> 2005 >> Vibe FWD L4-1.8L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor, Traction Control

Steering Angle Sensor, Traction Control

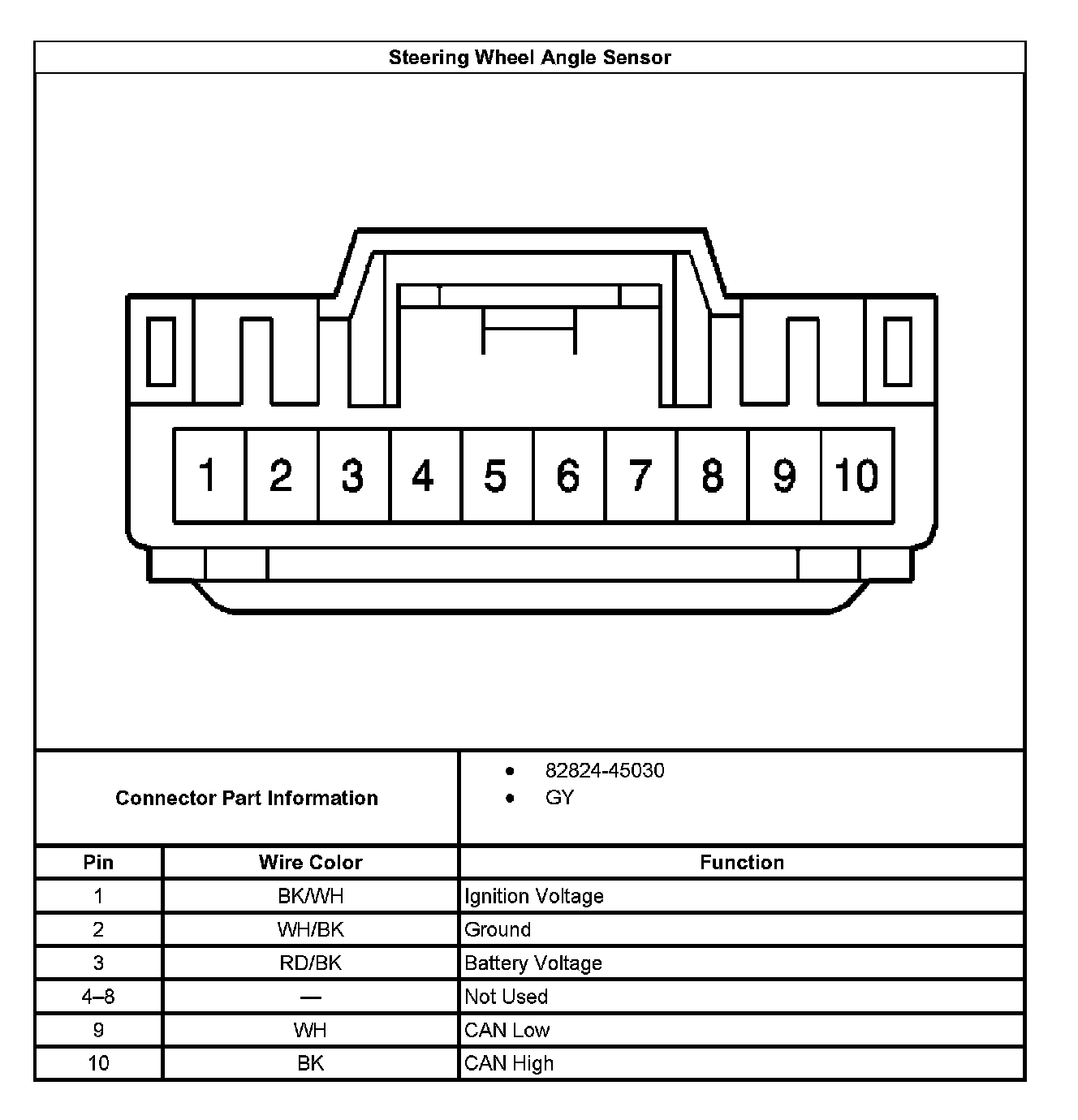

Steering Wheel Angle Sensor:
