Home >> Pontiac >> 2005 >> Vibe FWD L4-1.8L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Coolant Temperature Sensor/Switch (For Computer)

Coolant Temperature Sensor/Switch (For Computer)

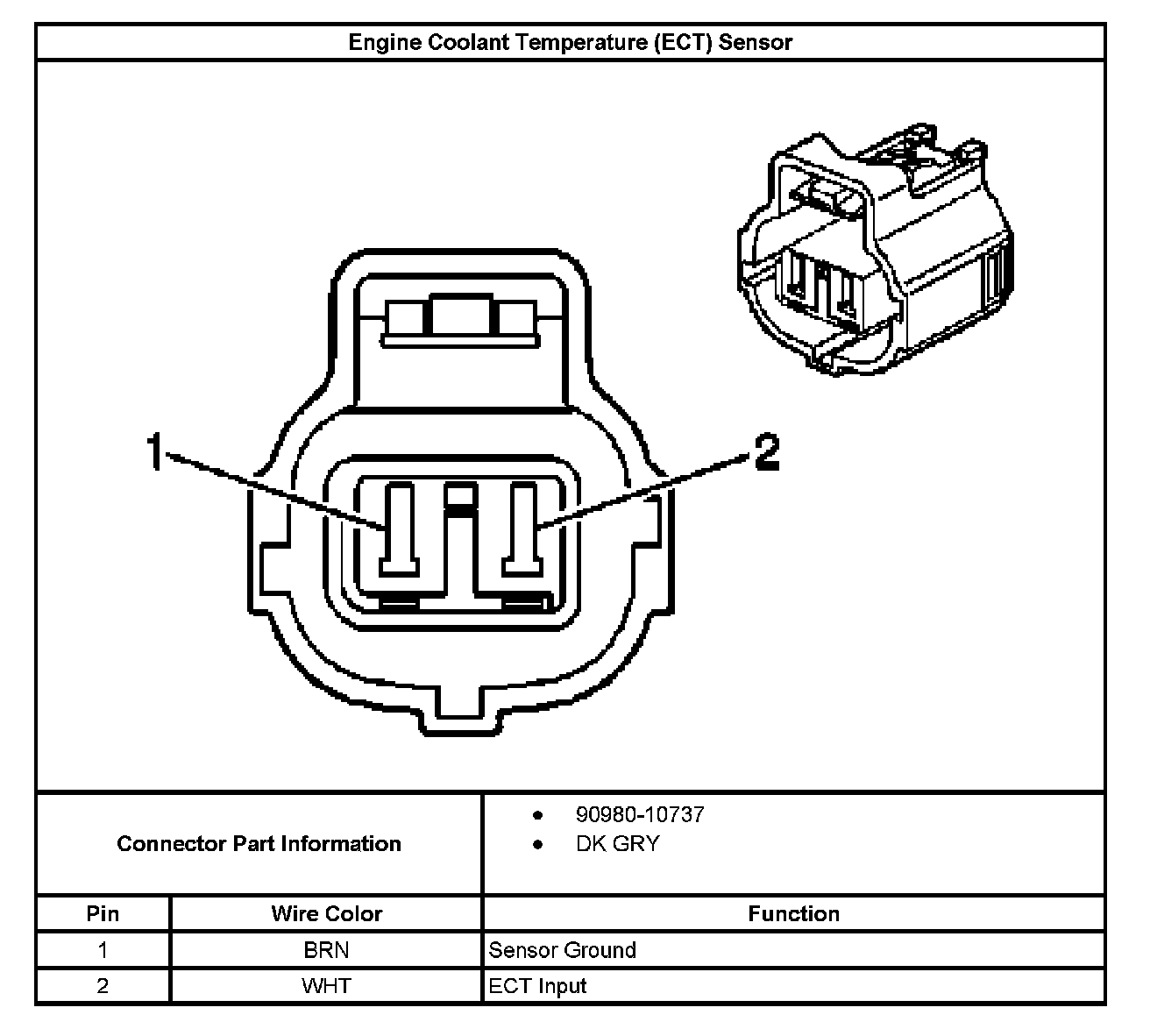

Engine Coolant Temperature (ECT) Sensor:
