Vibe FWD L4-1.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor

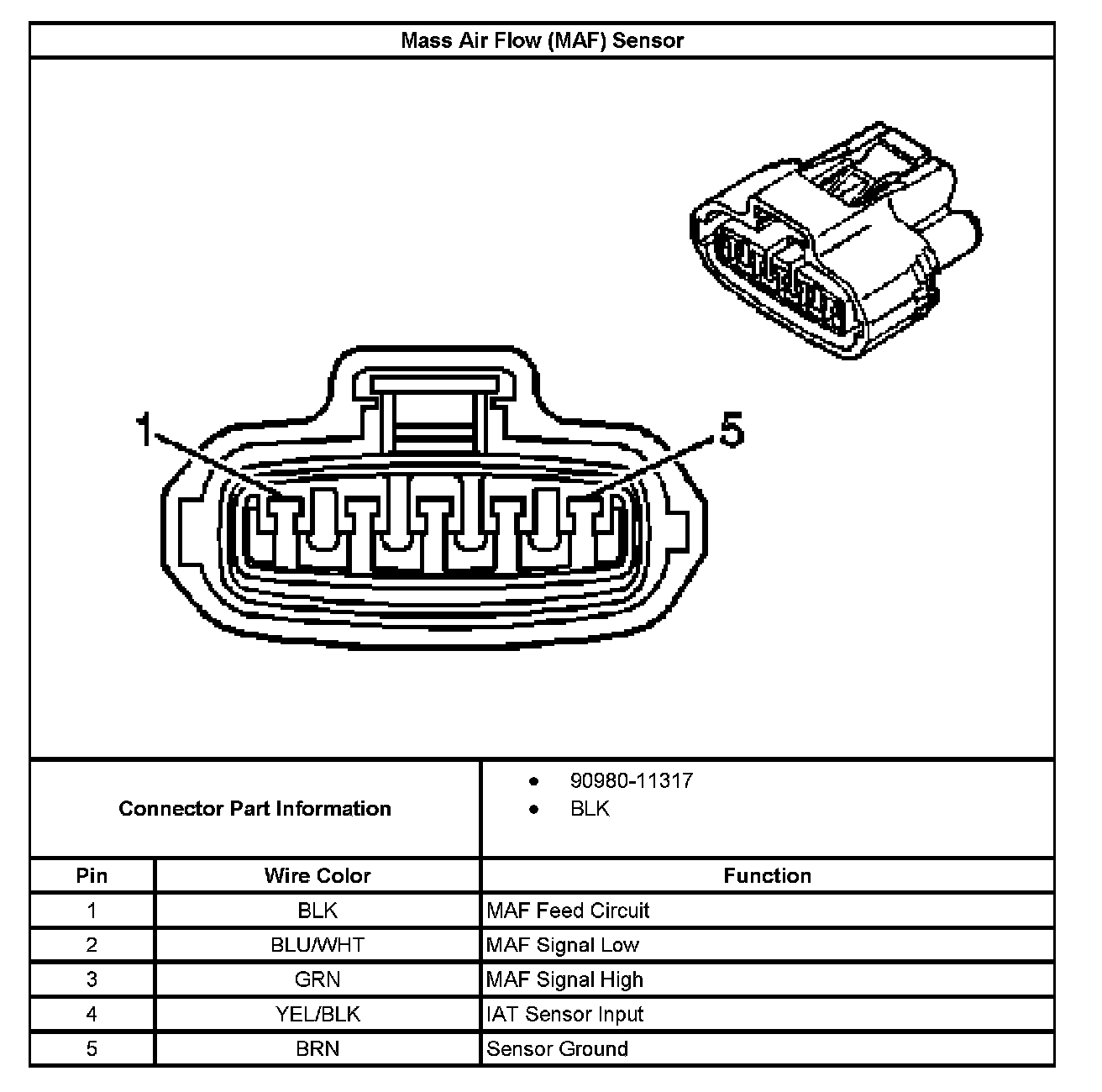

Mass Air Flow (MAF) Sensor:
