Powertrain Control Module (PCM) C3 (Without RPO Code NU3)
Powertrain Control Module (PCM) C3 (Without RPO Code NU3)

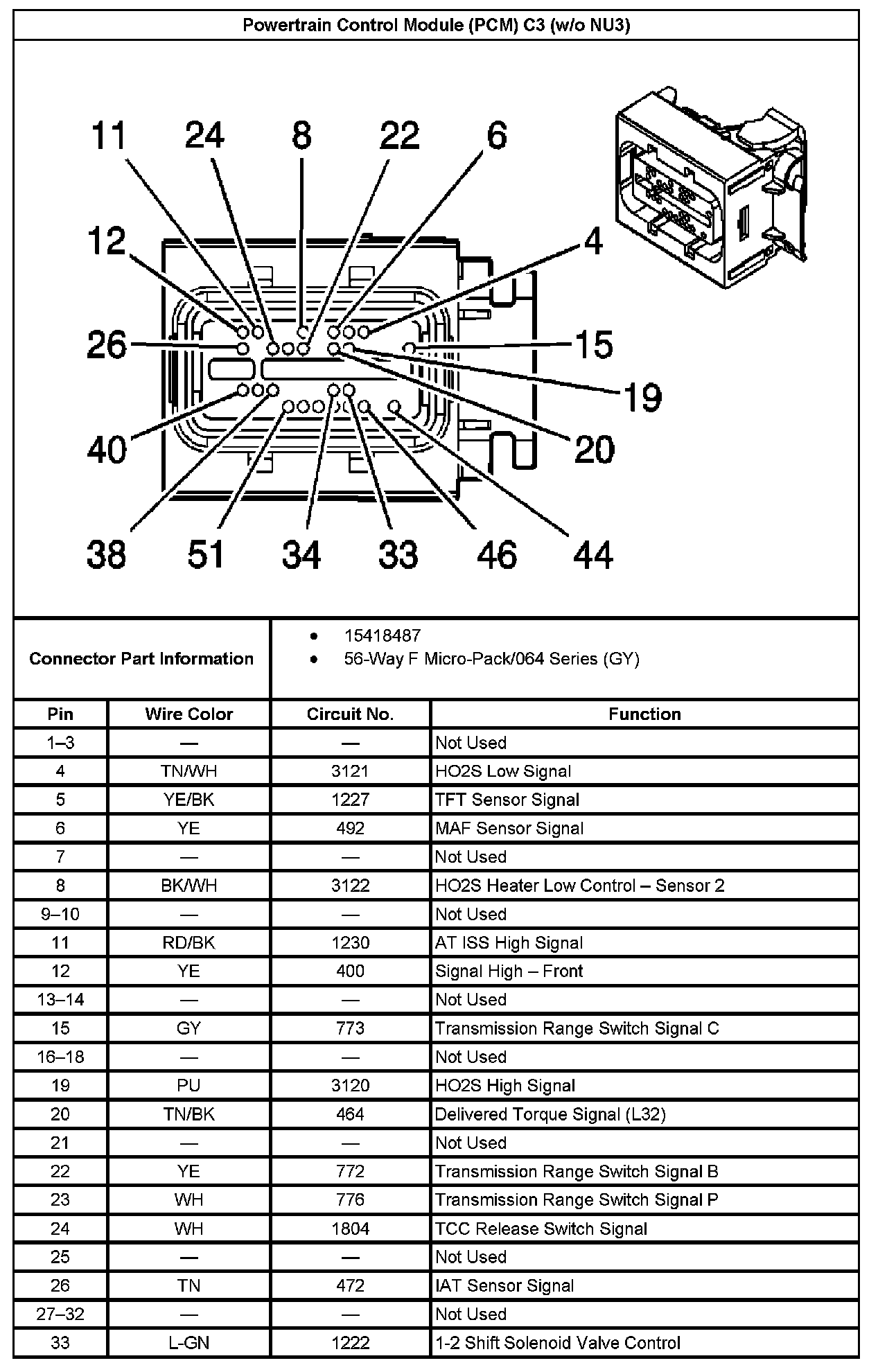

Powertrain Control Module (PCM) C3 (Without RPO Code NU3) Part 1:

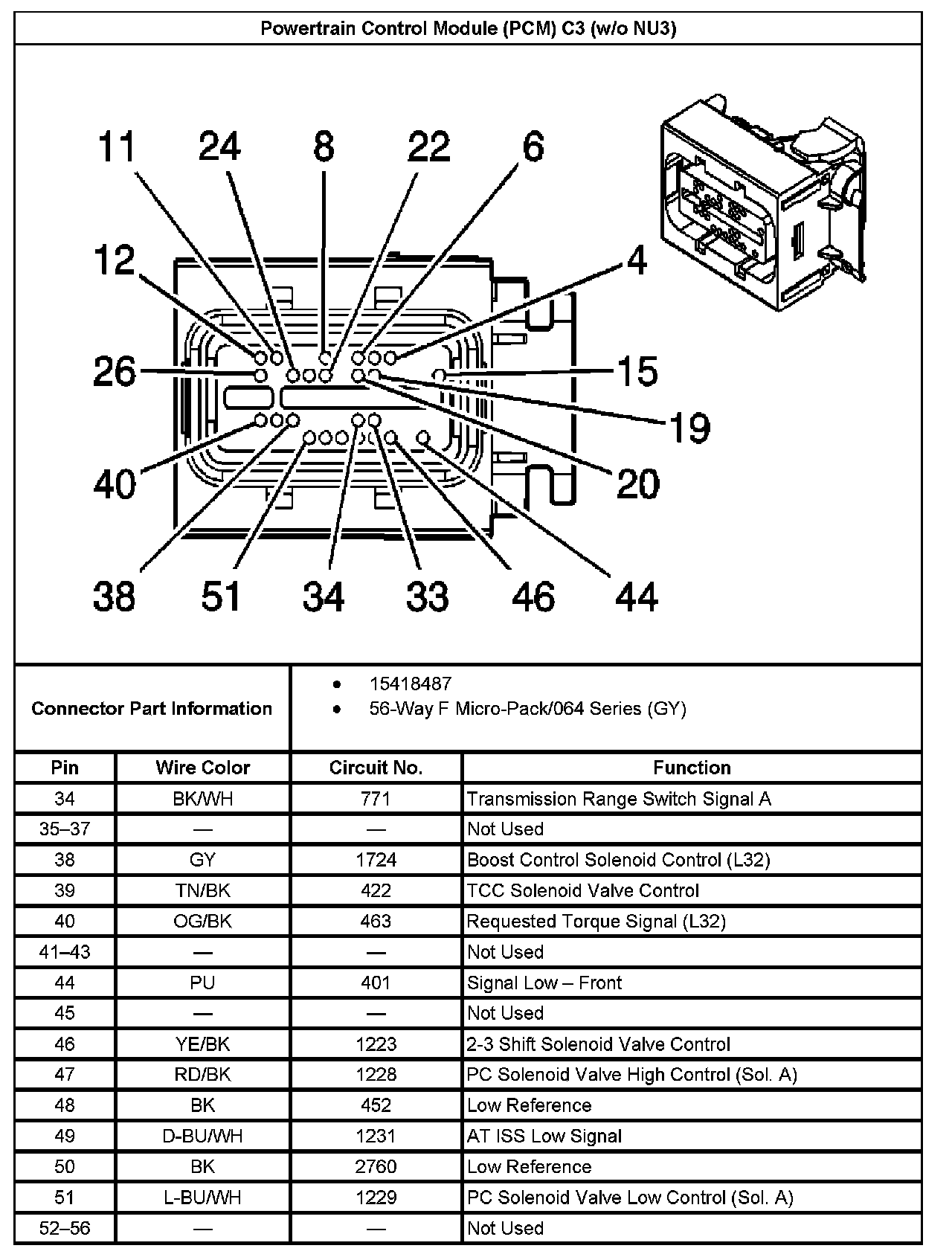

Powertrain Control Module (PCM) C3 (Without RPO Code NU3) Part 2:
