Grand Prix V6-3.8L VIN 2
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Connector Views
Connector Views

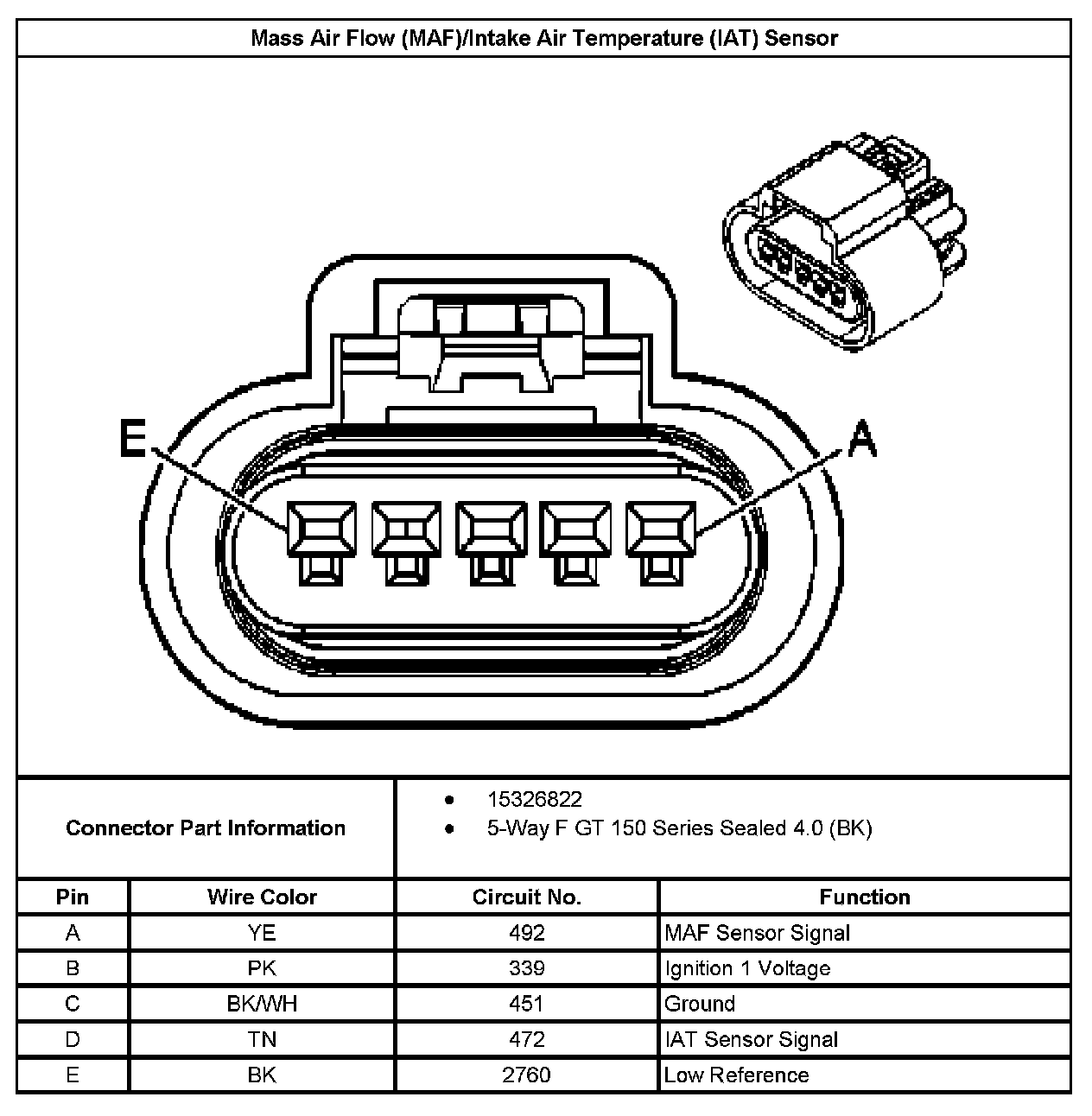

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:
