Home >> Pontiac >> 2005 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Inflatable Restraint Front End Discriminating Sensor

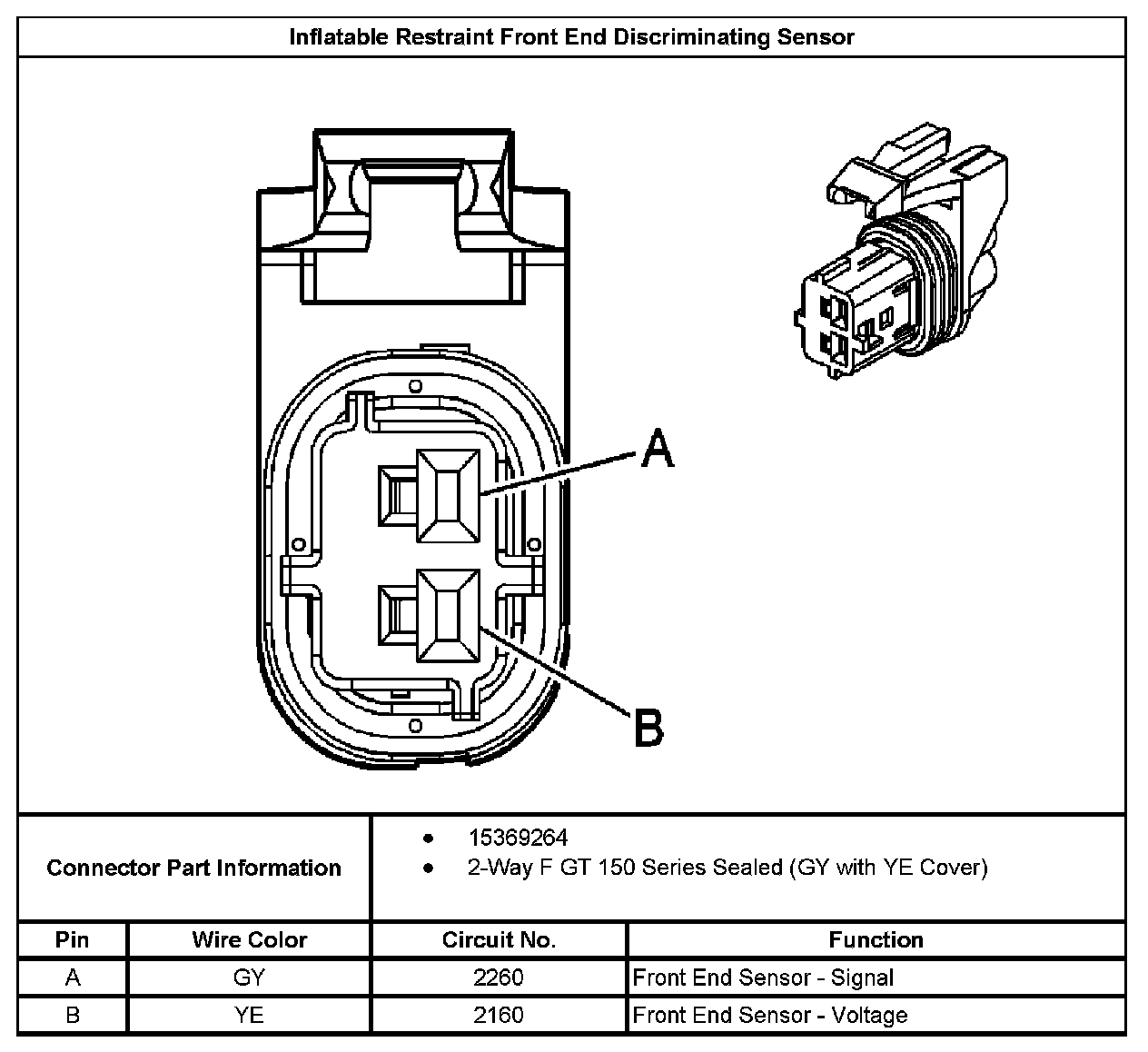

Inflatable Restraint Front End Discriminating Sensor

Inflatable Restraint Front End Discriminating Sensor:
