Home >> Pontiac >> 2005 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Components

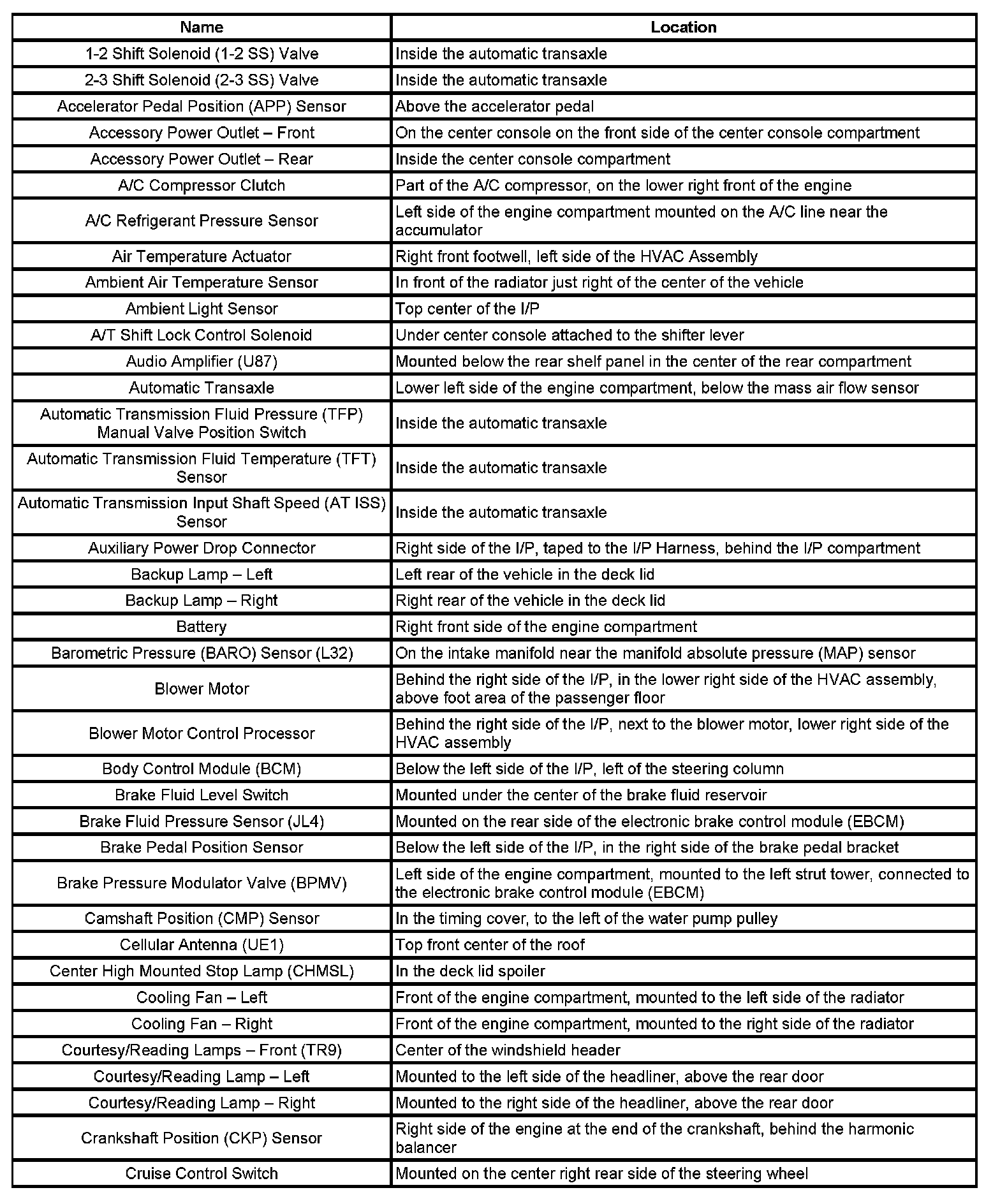

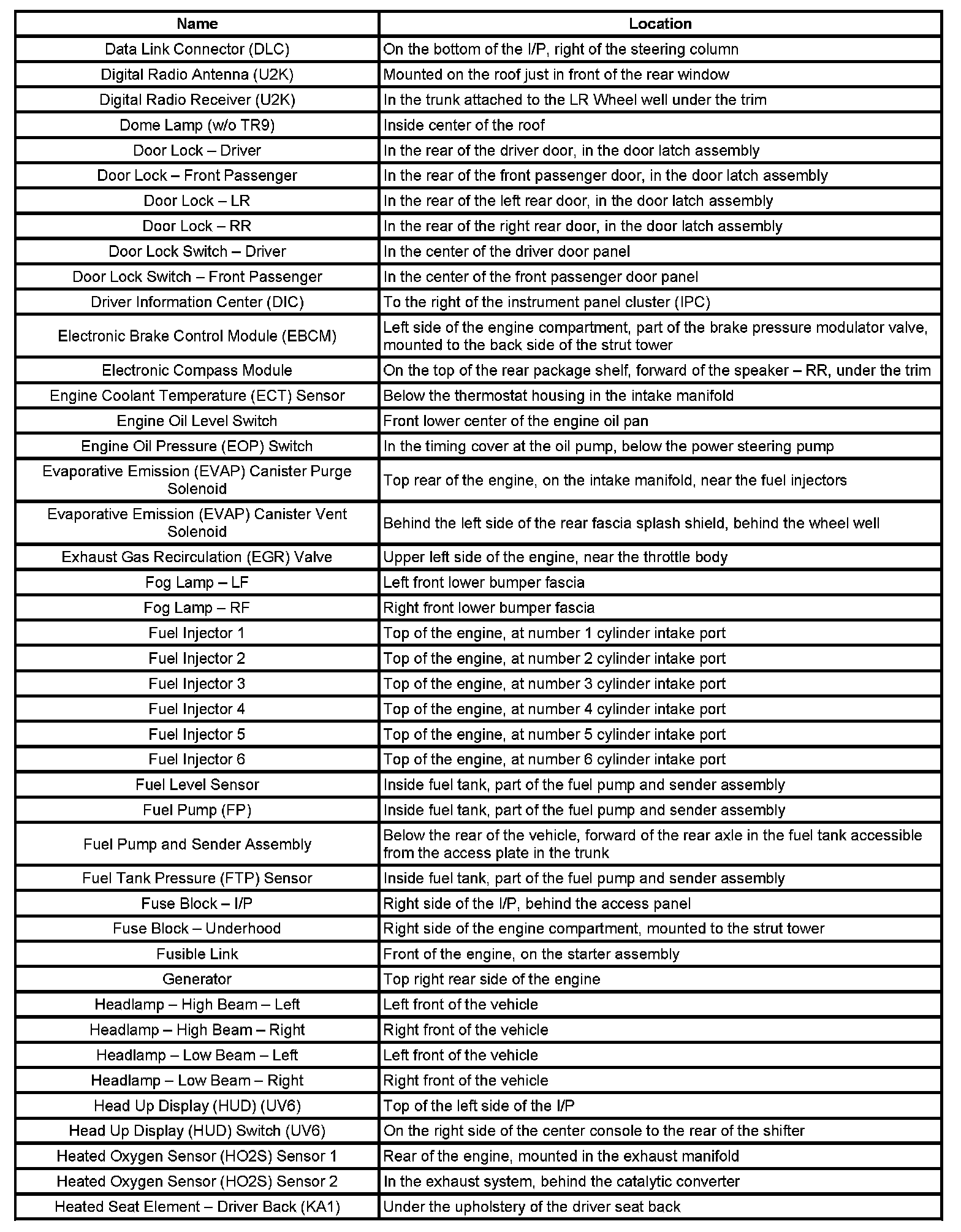

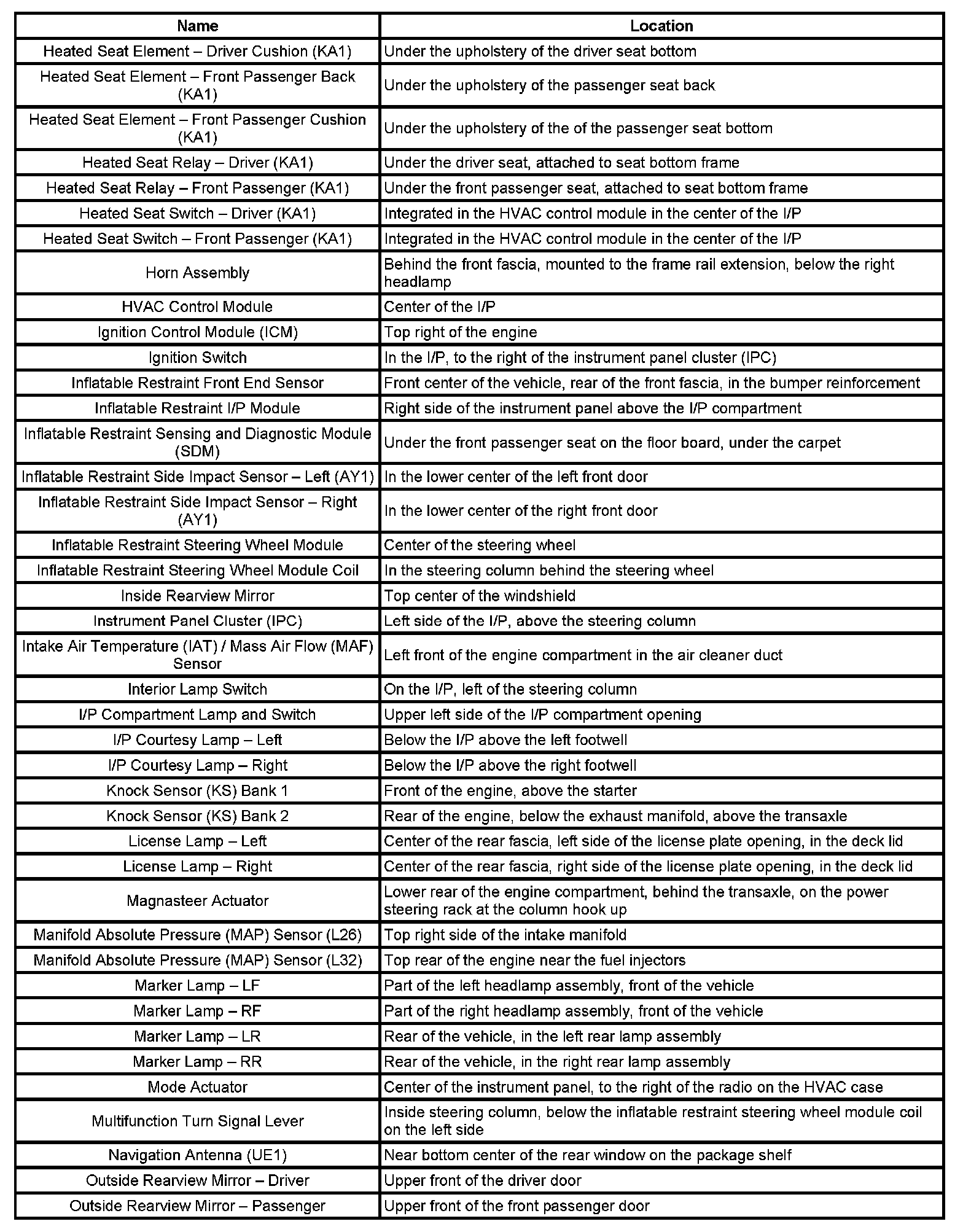

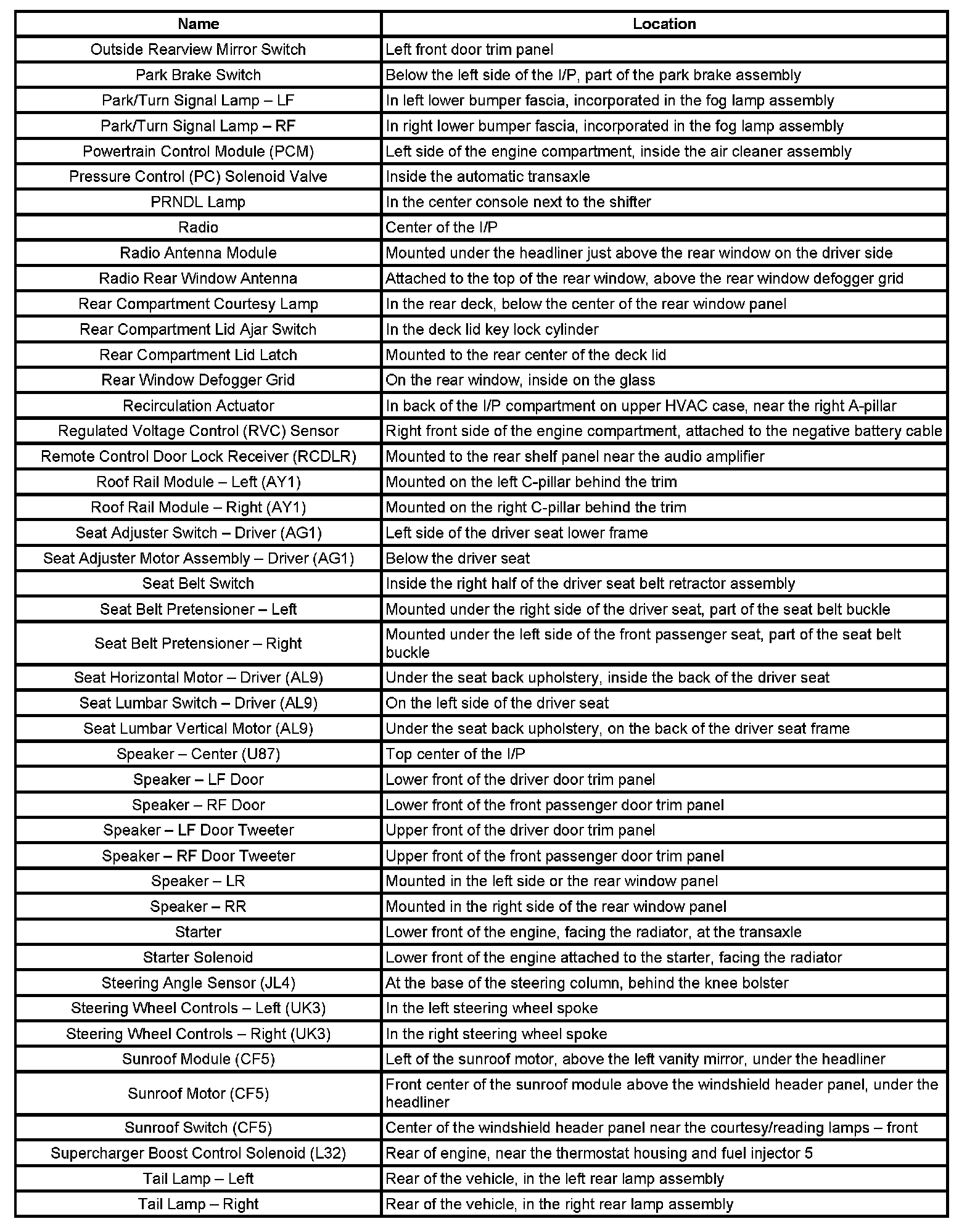

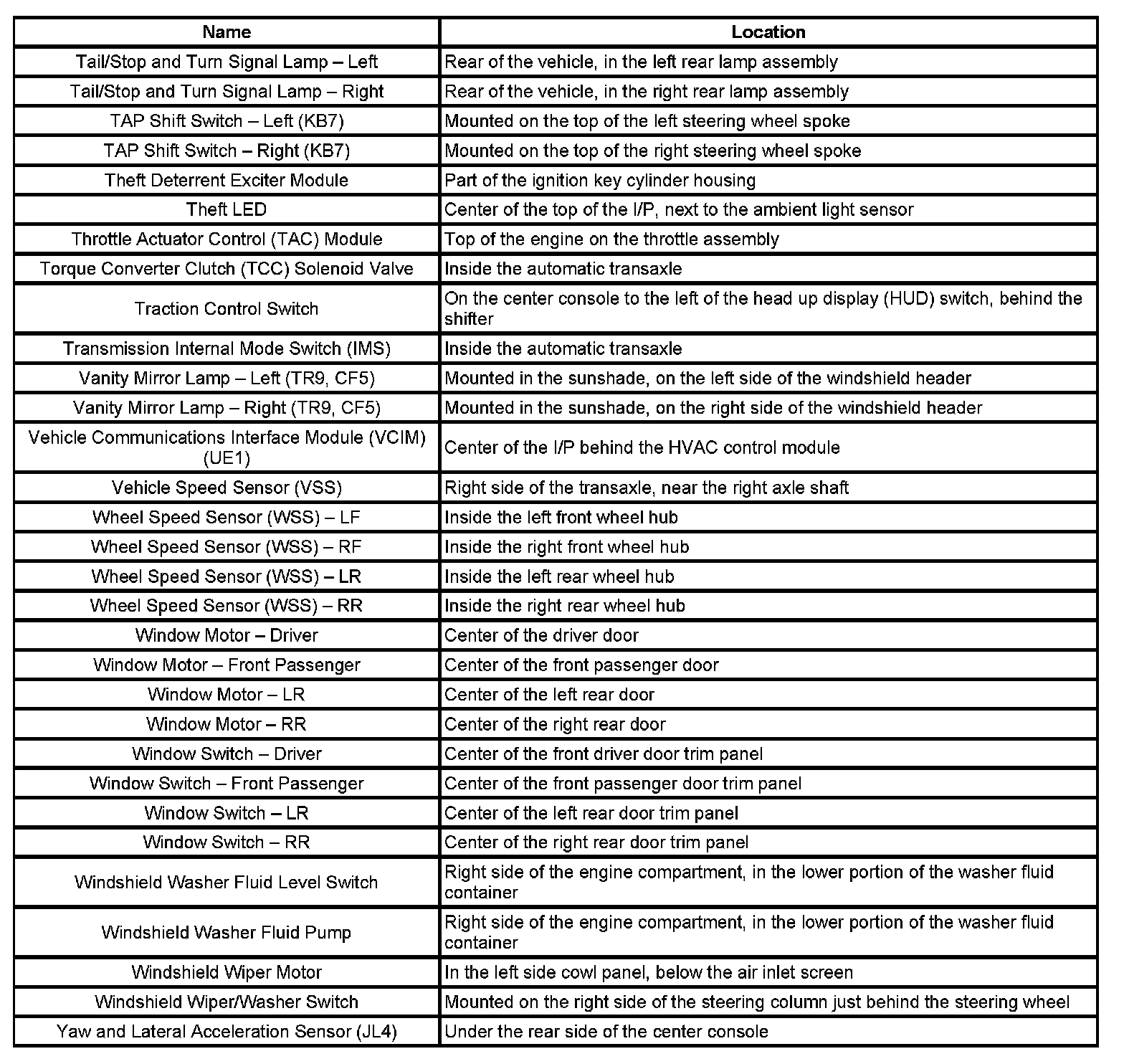

Components

1-2 - Cr:

Da - He:

He - Ou:

Ou - Ta:

Ta - Ya:
