Pontiac
>>
2005
>>
Grand AM L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

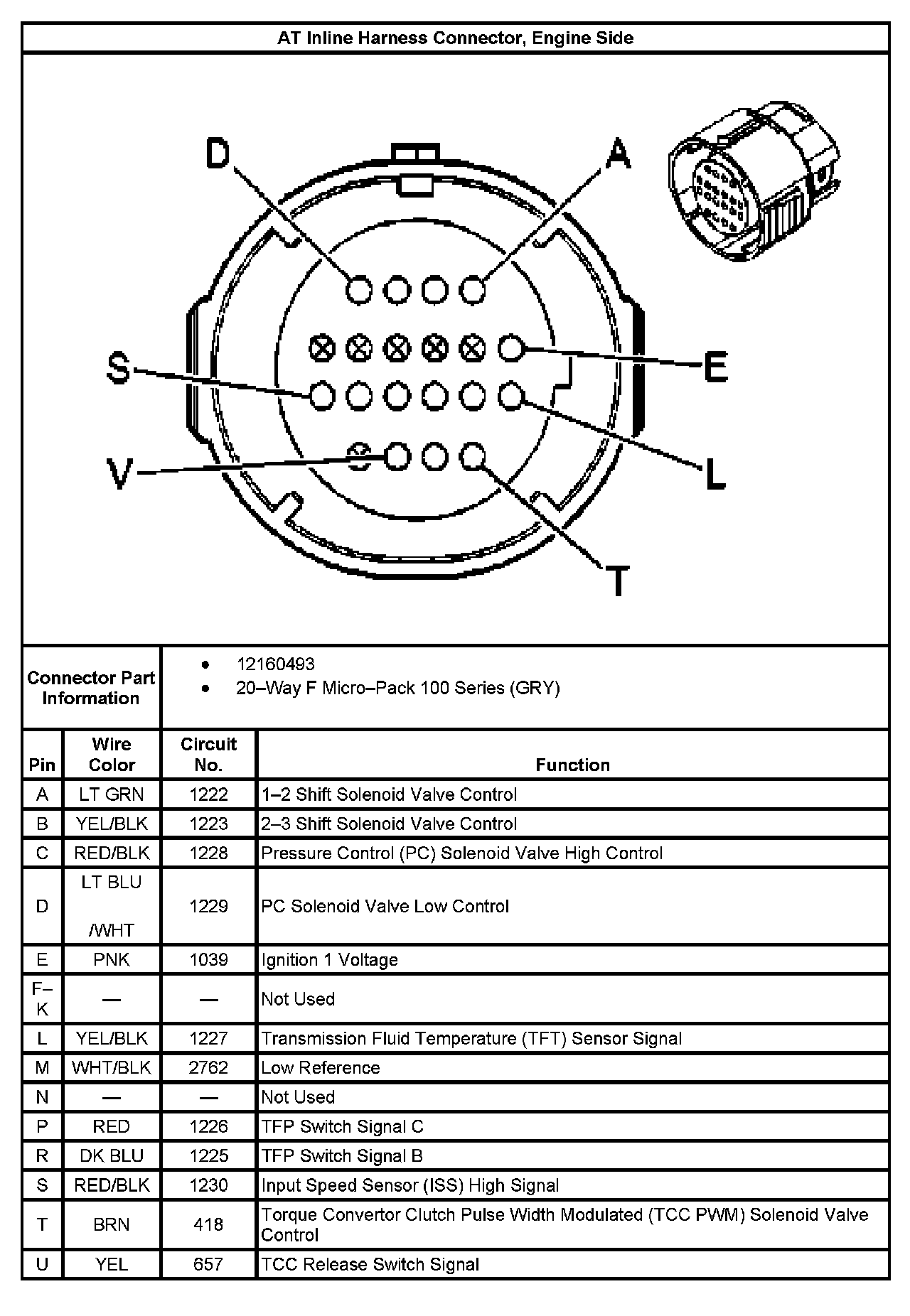

AT Inline Harness Connector, Engine Side:
AT Inline Harness Connector, Engine Side:

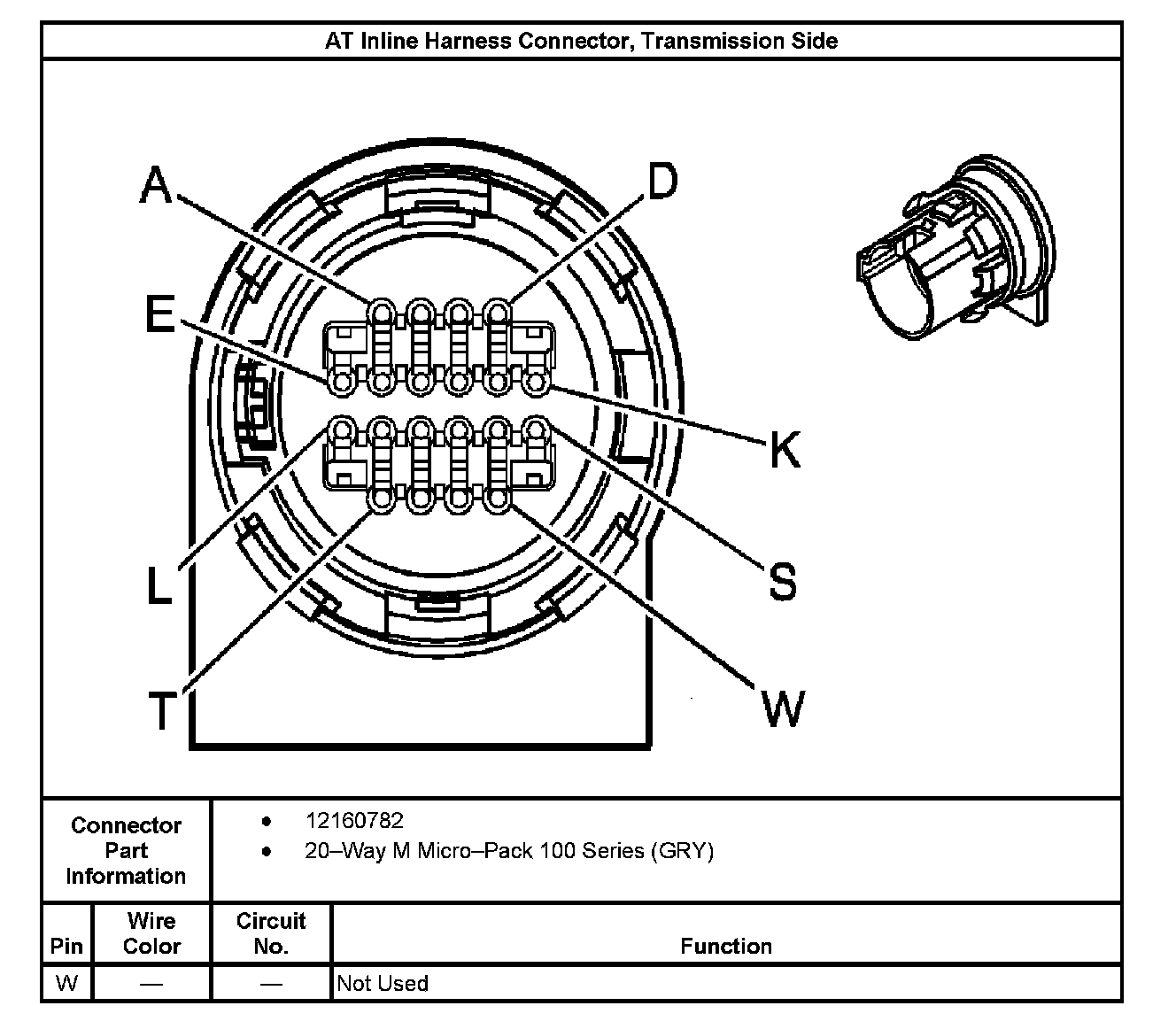

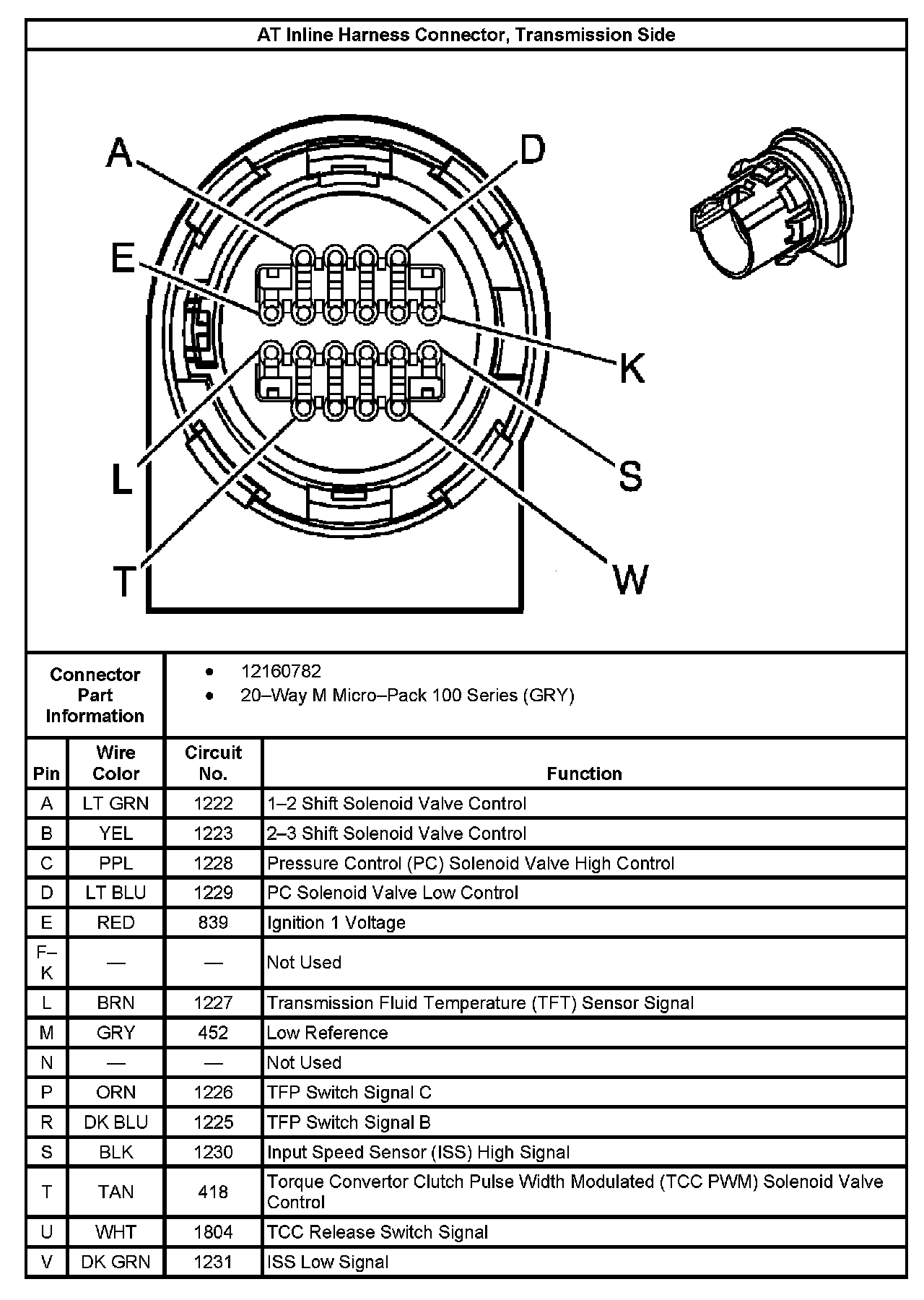

AT Inline Harness Connector, Transmission Side:
AT Inline Harness Connector, Transmission Side:
