Transmission Position Sensor/Switch: Diagrams

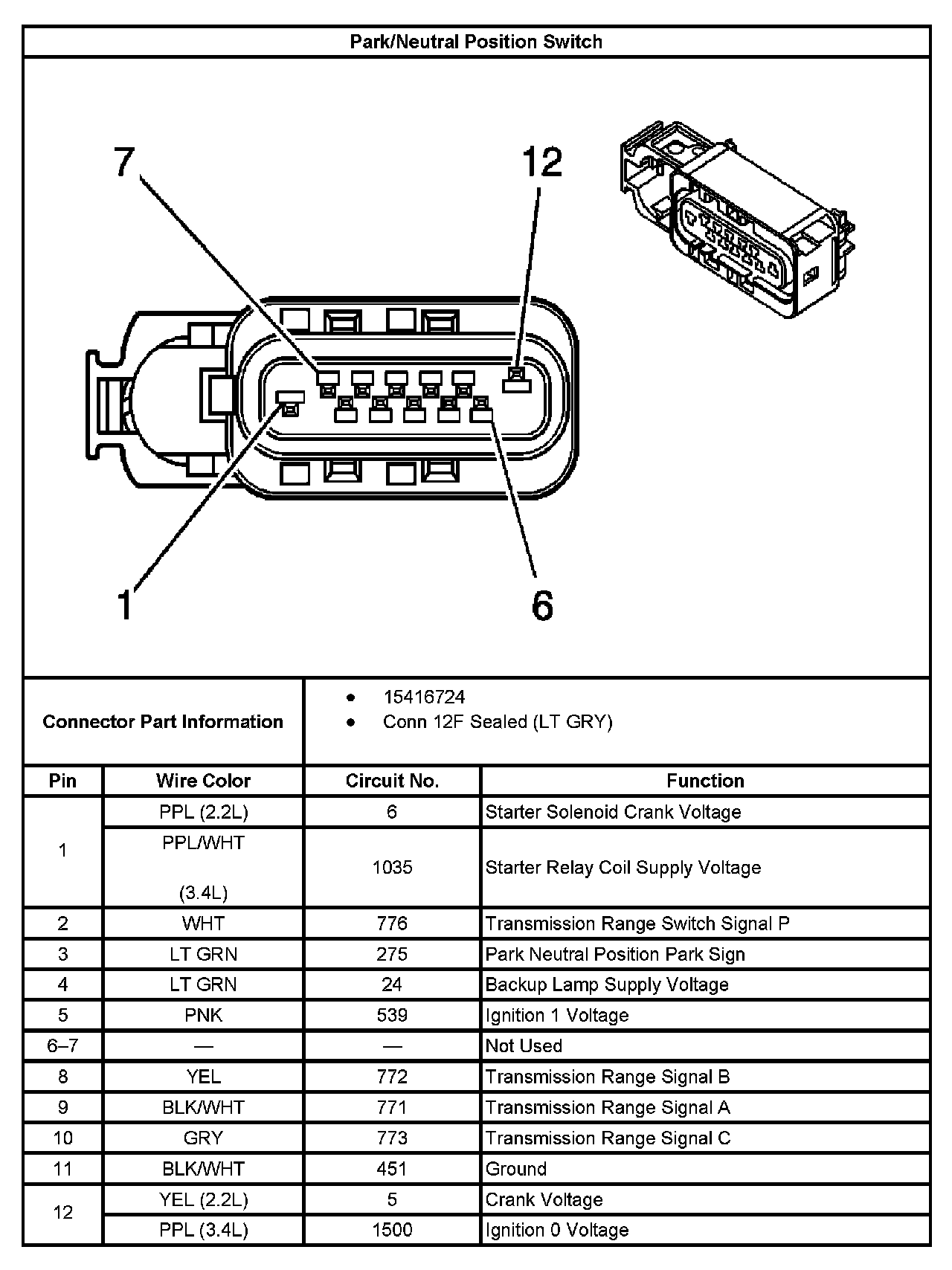

Park/Neutral Position Switch:

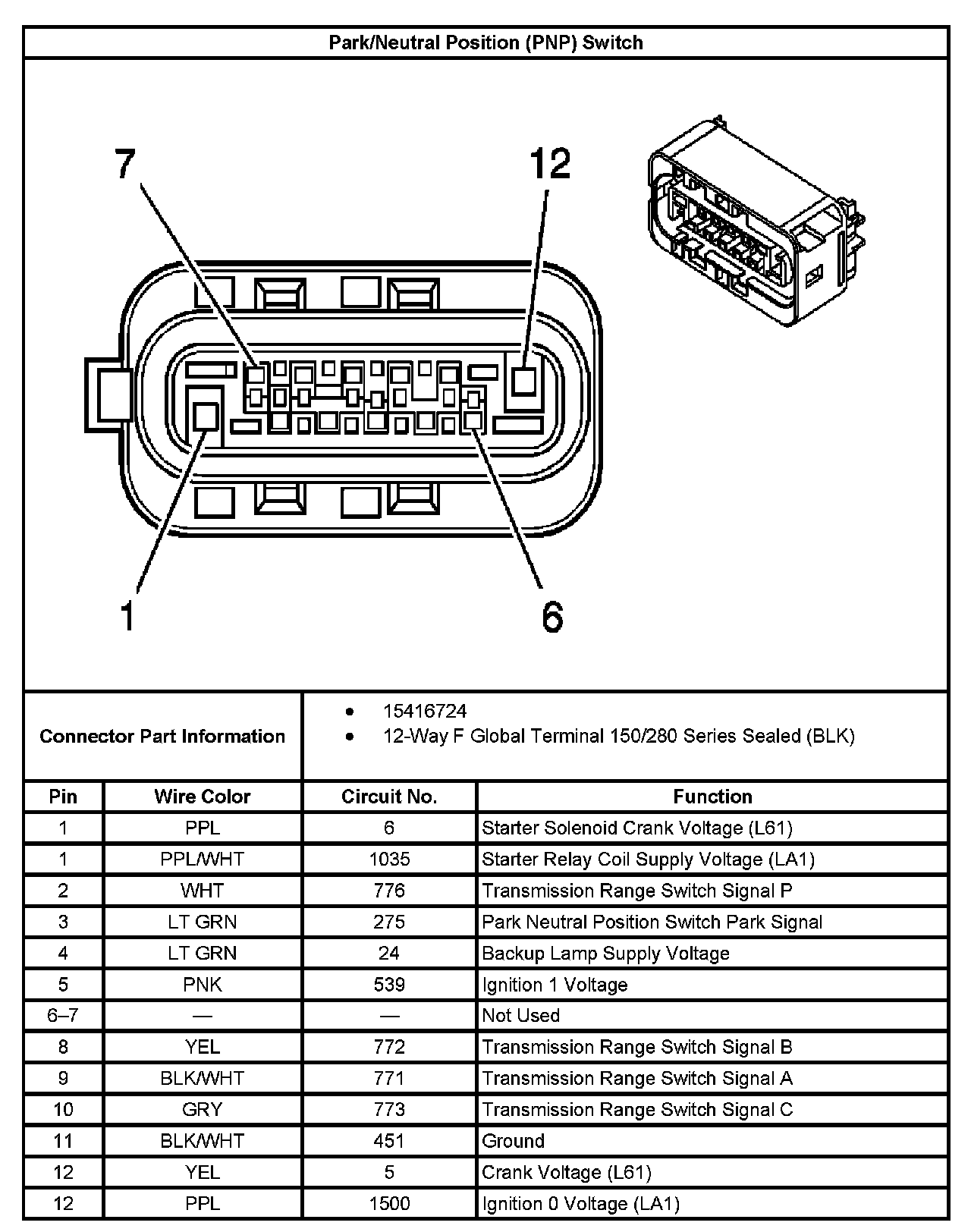

Park/Neutral Position (PNP) Switch:
