Home >> Pontiac >> 2005 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Driver

Window Switch - Driver

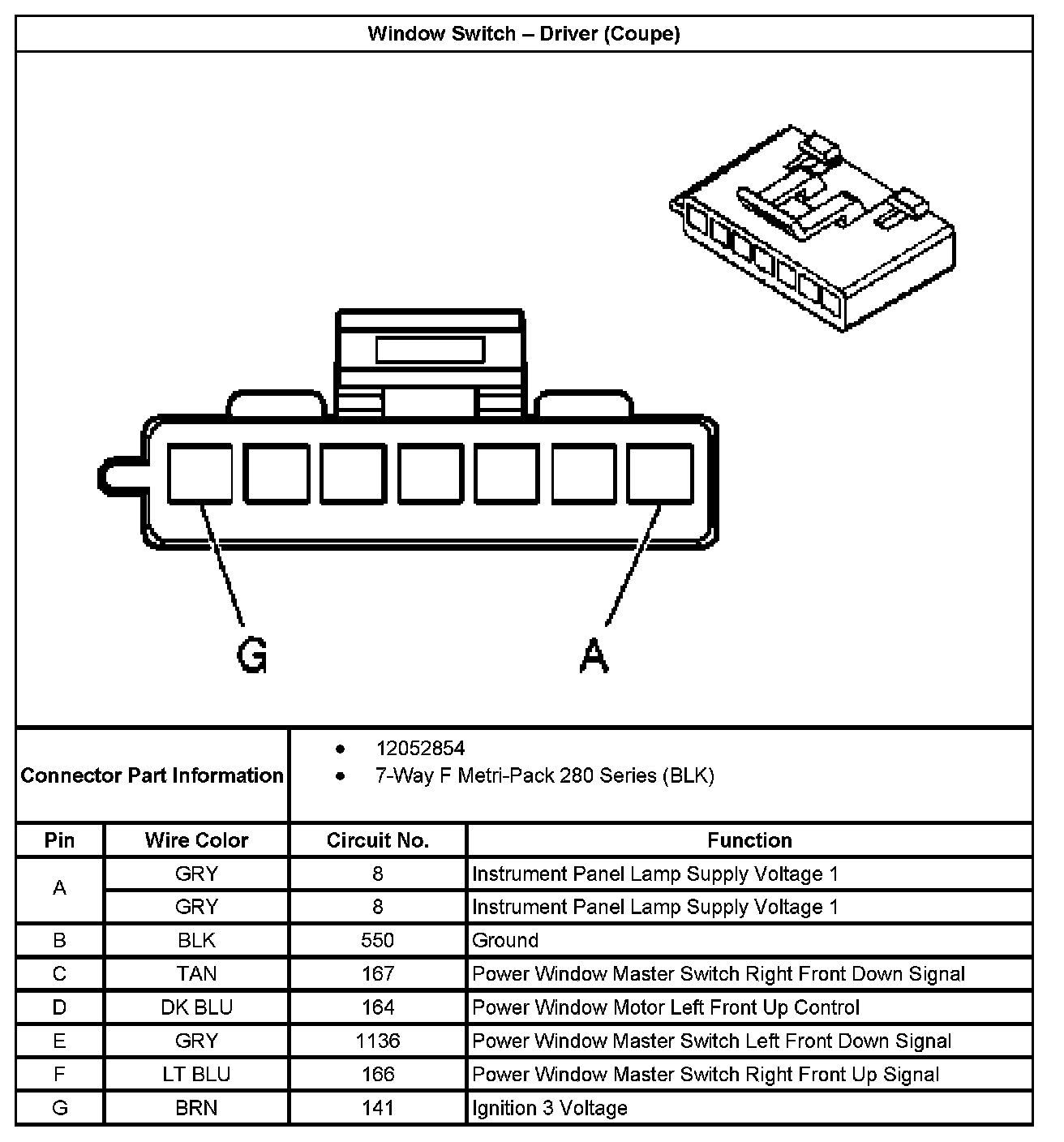

Window Switch - Driver (Coupe):

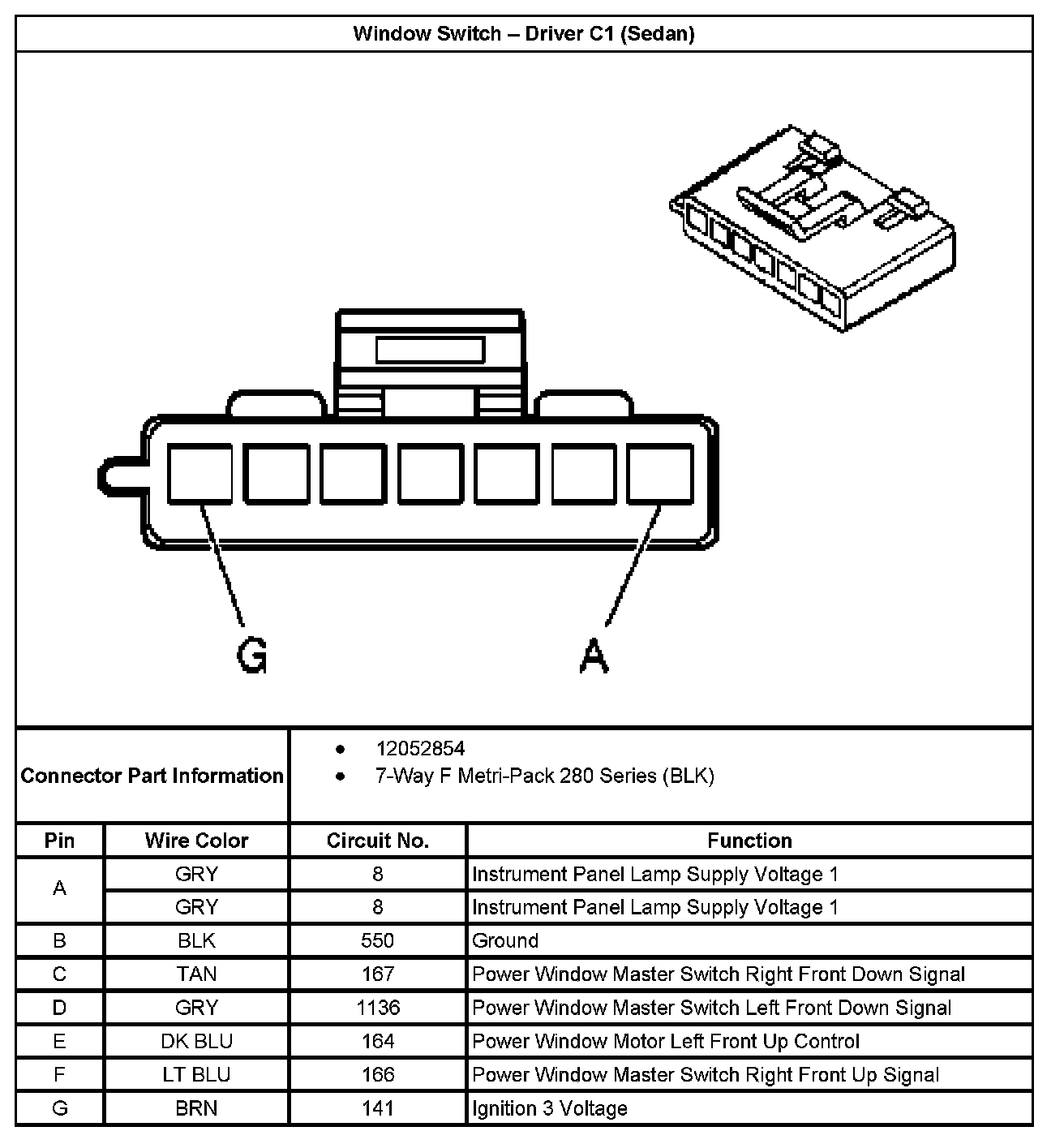

Window Switch - Driver C1 (Sedan):



Window Switch - Driver C2 (Sedan):
