Home >> Pontiac >> 2005 >> GTO V8-6.0L VIN U >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Locations

Power Seat Control Module: Locations

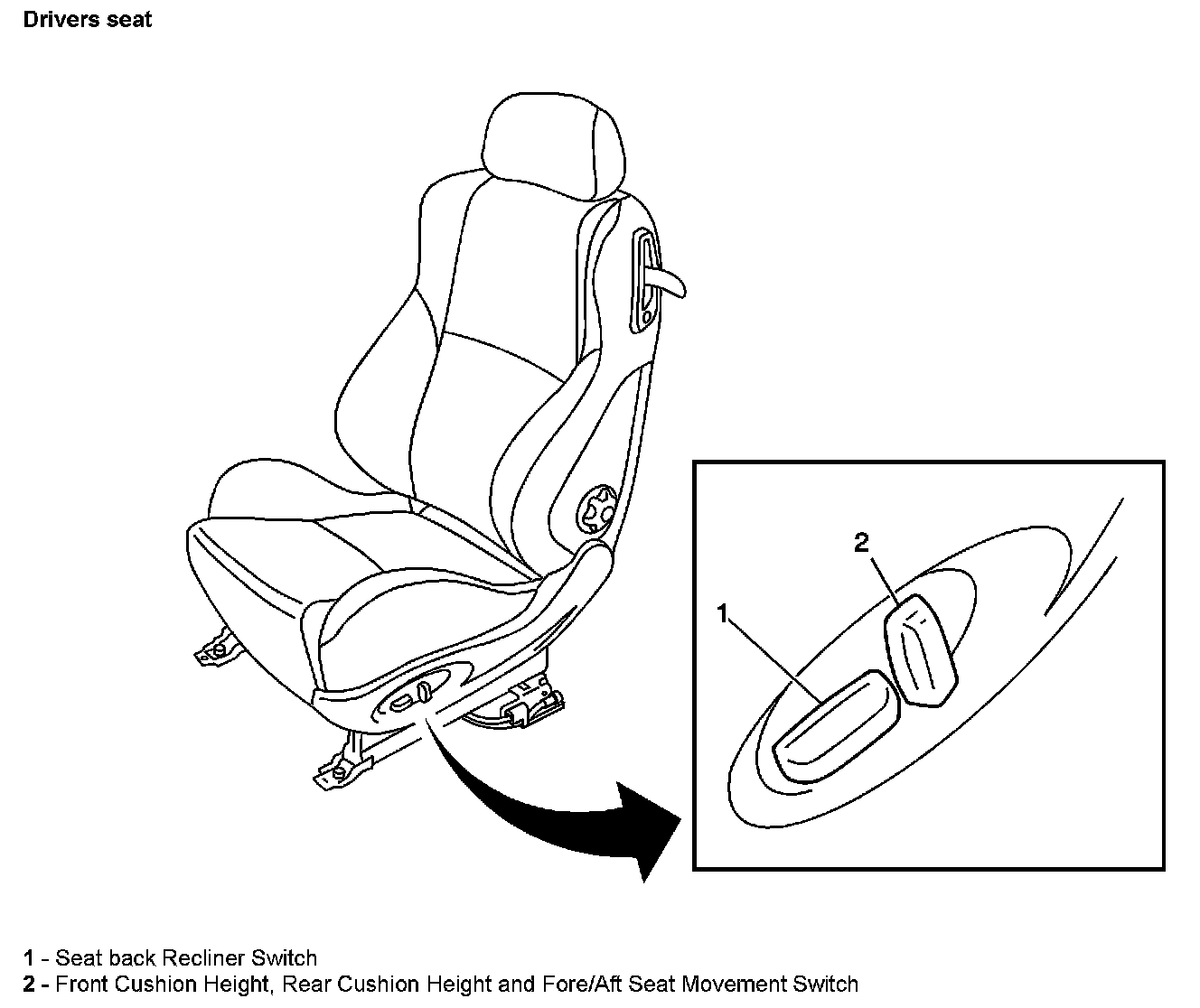

Drivers Seat Part 1:

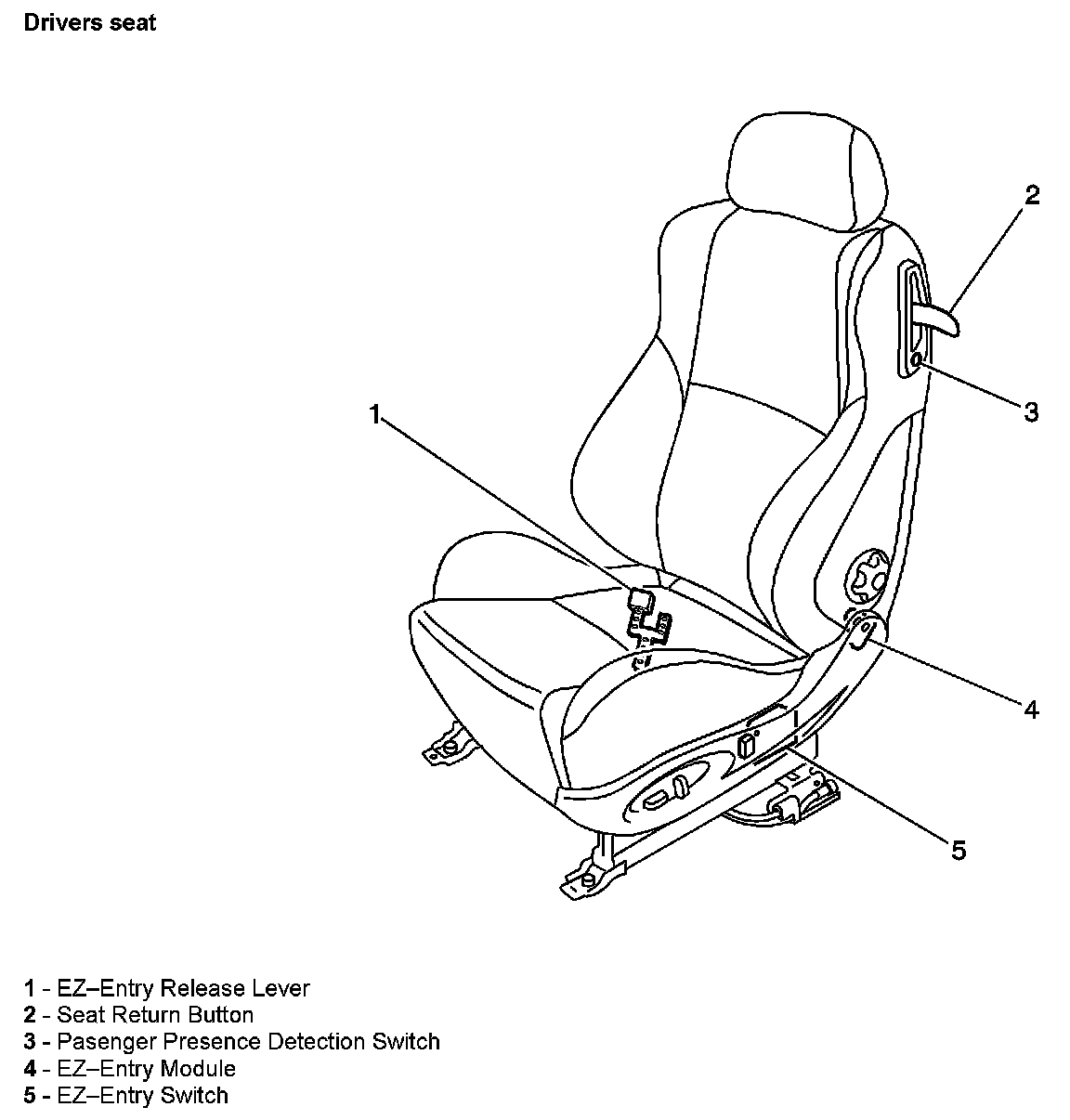

Drivers Seat Part 2:
