Removal Procedure
WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

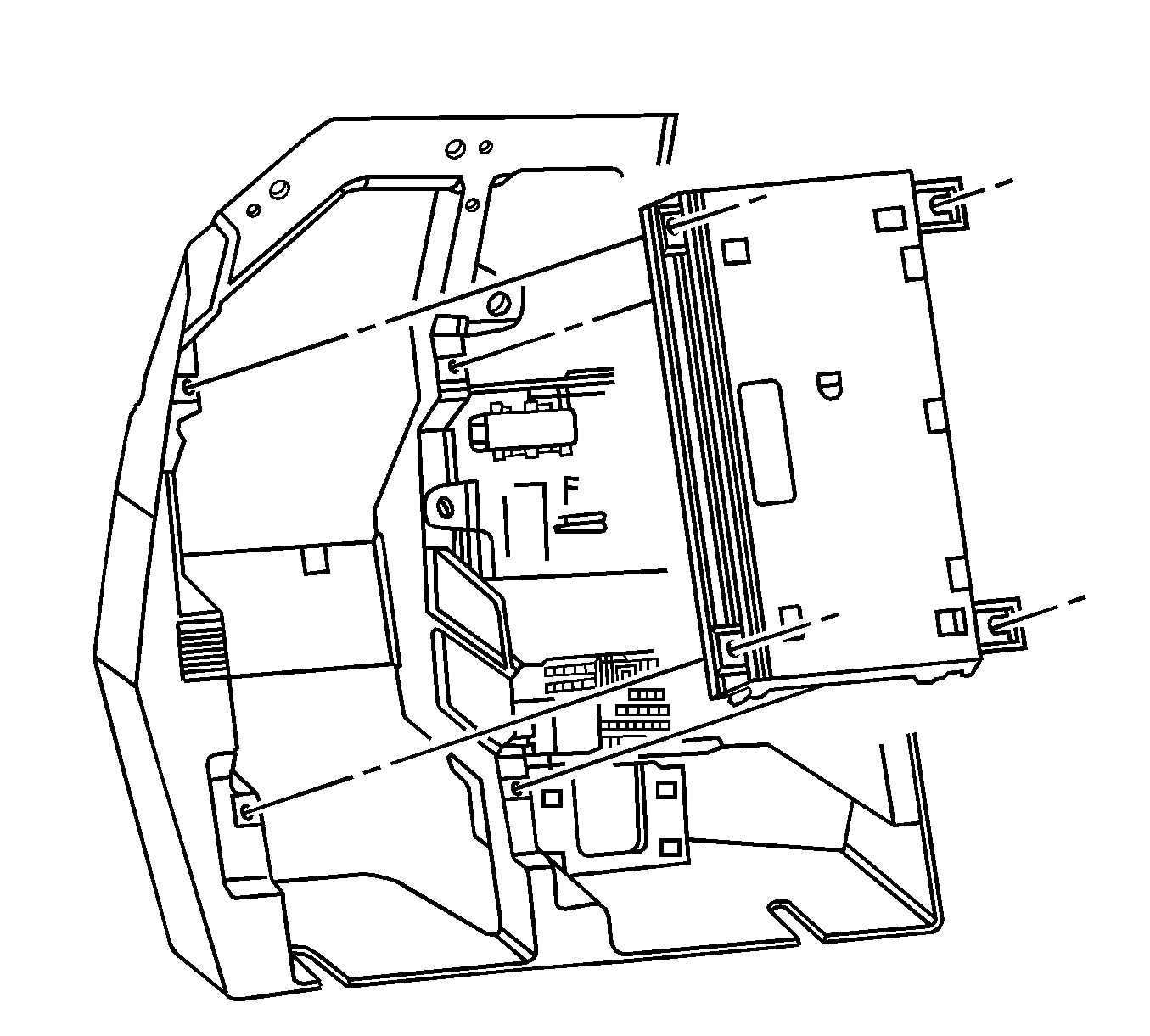

- Fold the passenger side carpet back exposing the electrical center.
- Remove the 4 amplifier retaining screws from the electrical multi-use bracket.
Courtesy of GENERAL MOTORS CORP.
- Remove the amplifier from the bracket.
- Disconnect the electrical leads to the amplifier.
