Home >> Pontiac >> 2005 >> G6 V6-3.5L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

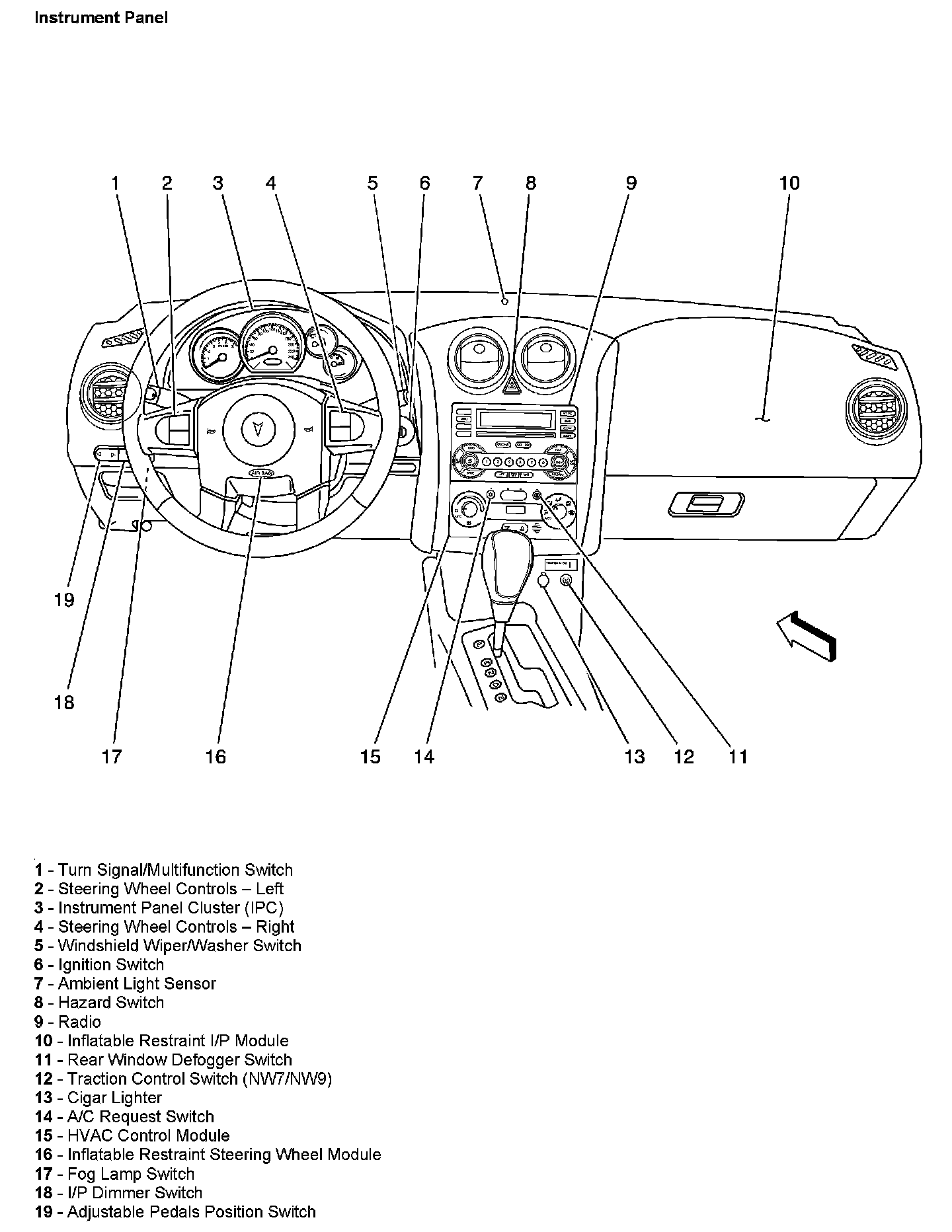

Instrument Panel:
