Home >> Pontiac >> 2005 >> G6 V6-3.5L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module

Sunroof / Moonroof Module

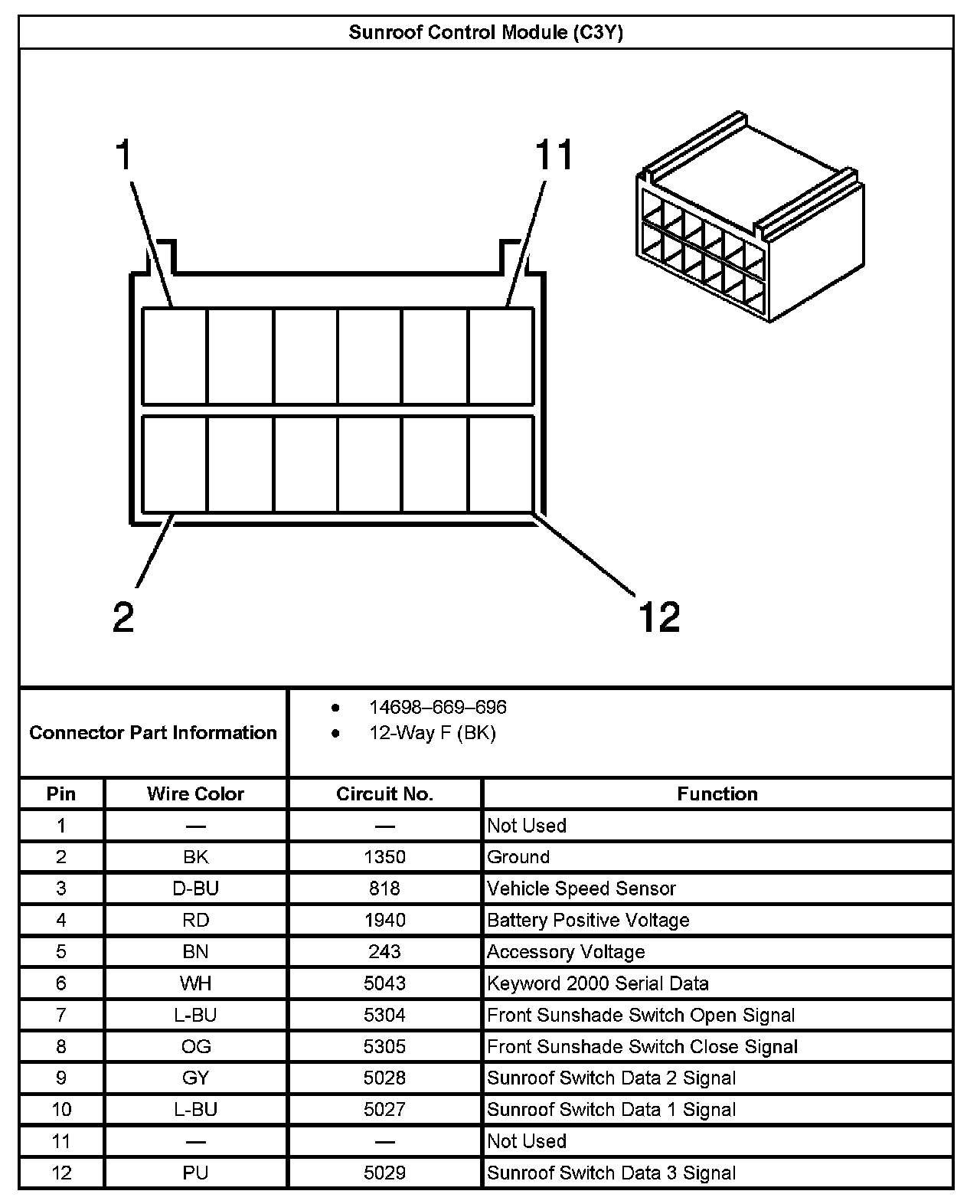

Sunroof Control Module (With RPO Code C3Y):

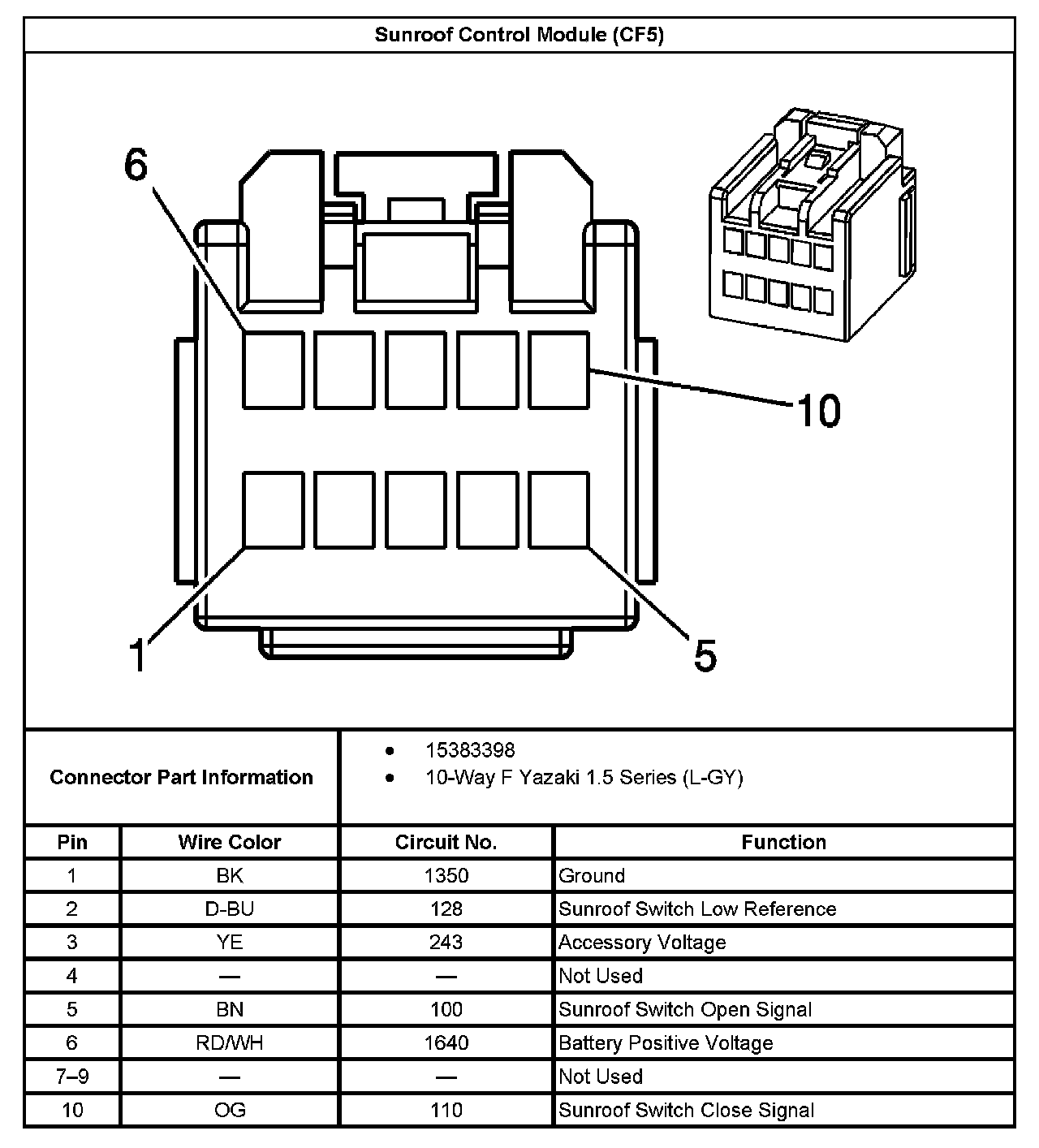

Sunroof Control Module (With RPO Code CF5):
