Installation Procedure

    Fig 1: Control Assembly
    GM1556723Courtesy of GENERAL MOTORS CORP.
  1. Install the control assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the control assembly bolts.

    Tighten:  Tighten the control assembly to bracket bolts to 25 N.m (18 lb ft).

  3. Release the park brake.

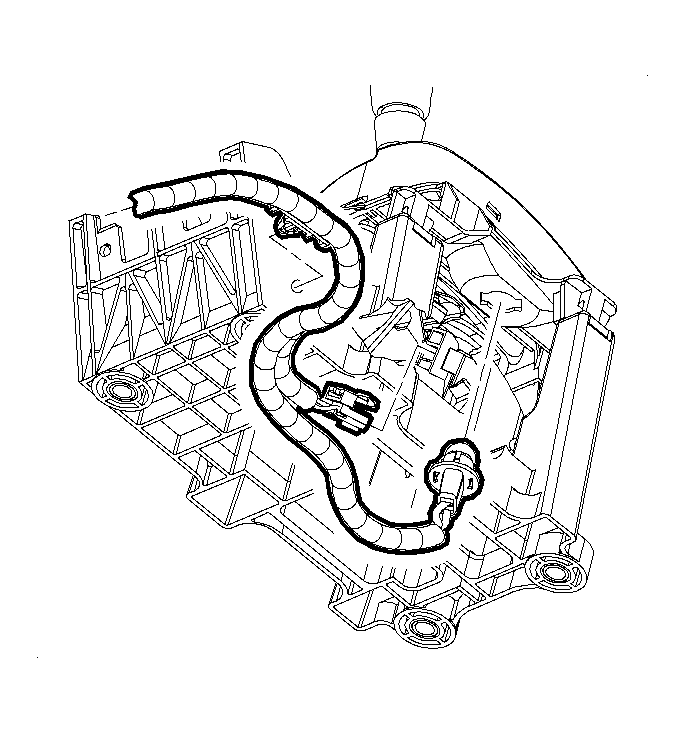

    4. Fig 2: Disconnecting Control Assembly Electrical Connectors
    GM944353Courtesy of GENERAL MOTORS CORP.
  4. Connect the control assembly electrical connectors.
    5. Fig 3: Park Lock Cable
    GM1556721Courtesy of GENERAL MOTORS CORP.
  5. Install the park lock cable (1) onto the control assembly using a new clip.
  6. Connect the park lock cable (2) onto the control assembly pin.
    7. Fig 4: Shift Cable
    GM1556719Courtesy of GENERAL MOTORS CORP.
  7. Install the shift cable (1) onto the control assembly. Secure with a new shiftier cable retainer clip.
  8. Connect the shifter cable (2) onto the control assembly pin.
  9. Install the console. Refer to Console Replacement Instrument Panel, Gages, and Console.
