Home >> Pontiac >> 2005 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Splice Packs Views

Splice Packs Views

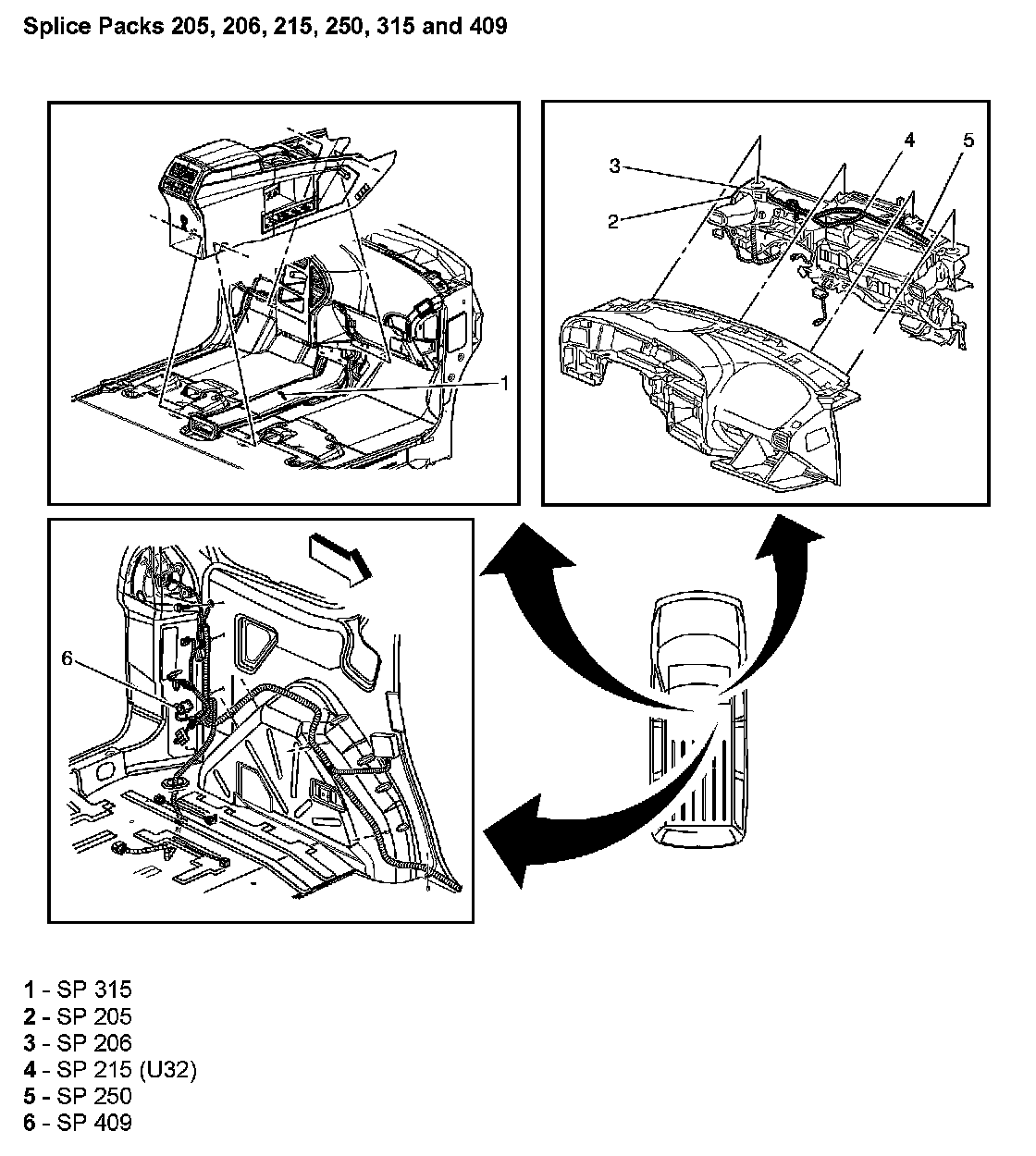

Splice Packs 205, 206, 215, 250, 315 And 409:
