Home >> Pontiac >> 2005 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Fuse Block - Center Console

Fuse Block - Center Console

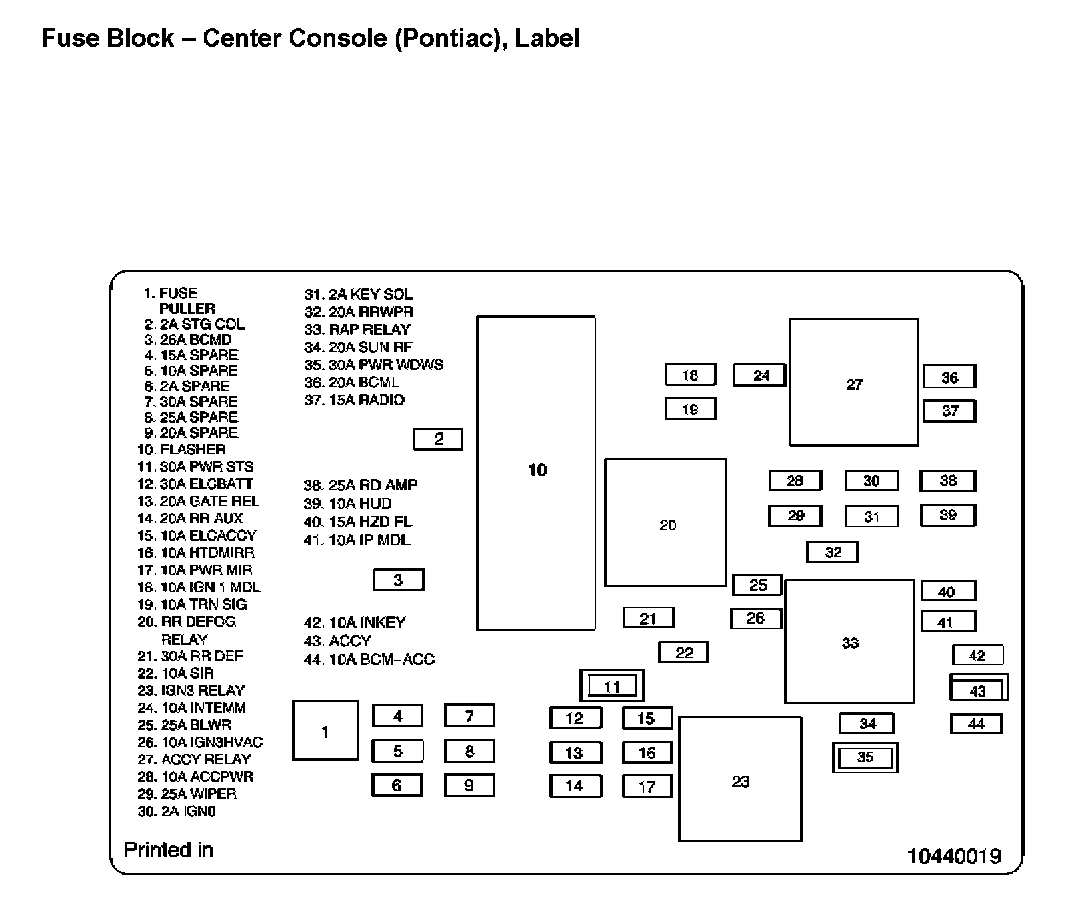

Location View:

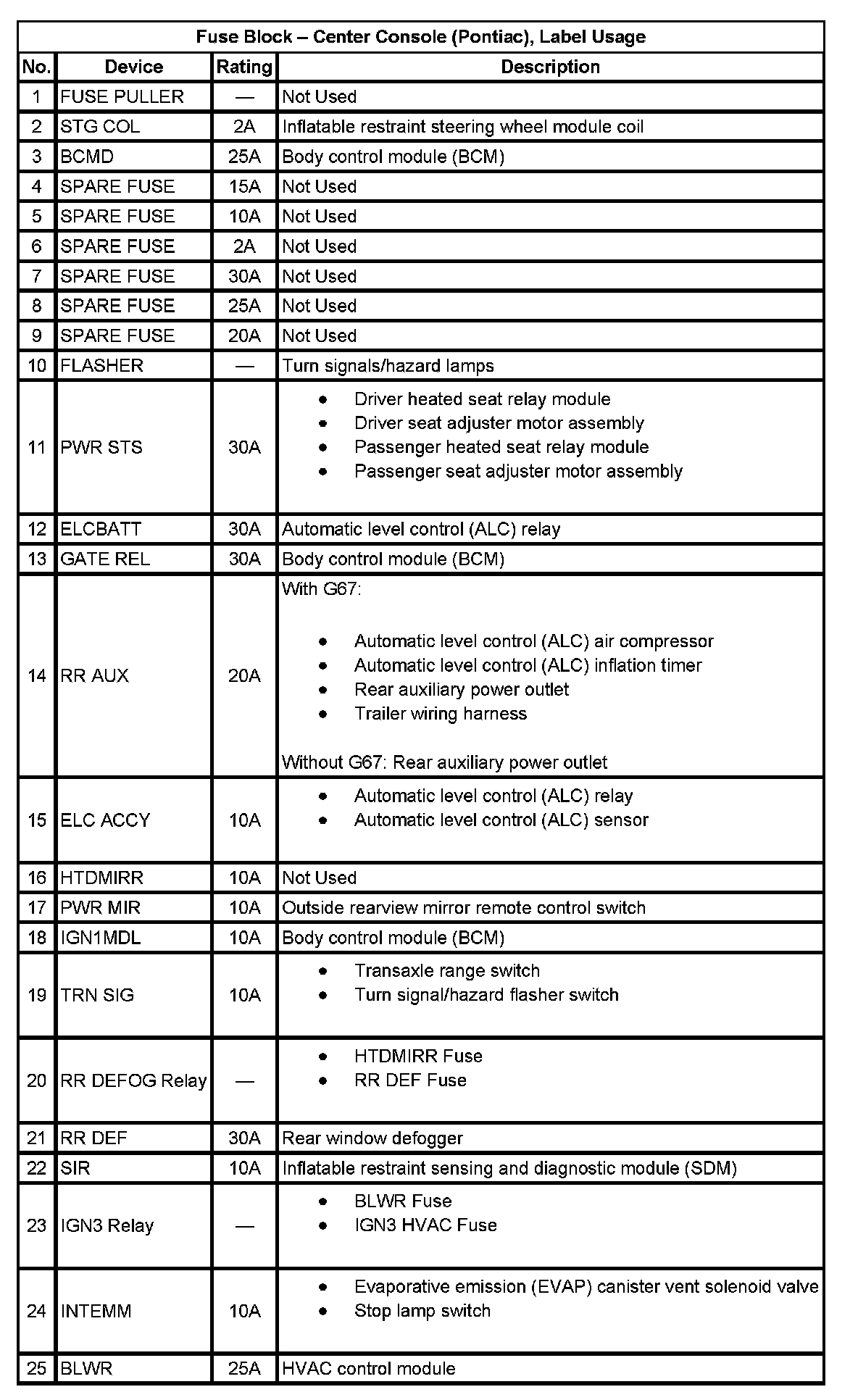

Application Table Part 1:

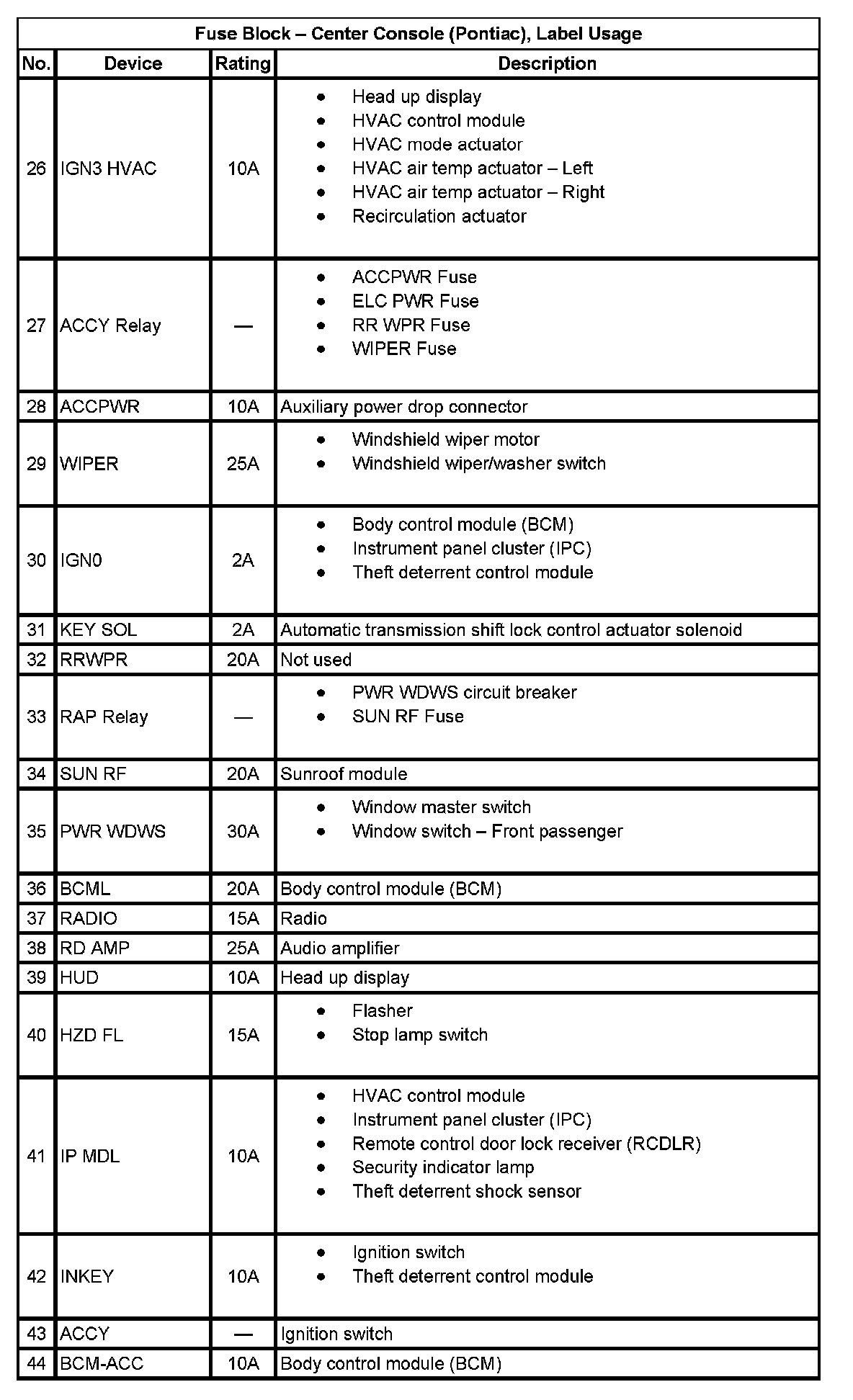

Application Table Part 2:
