Home >> Pontiac >> 2005 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

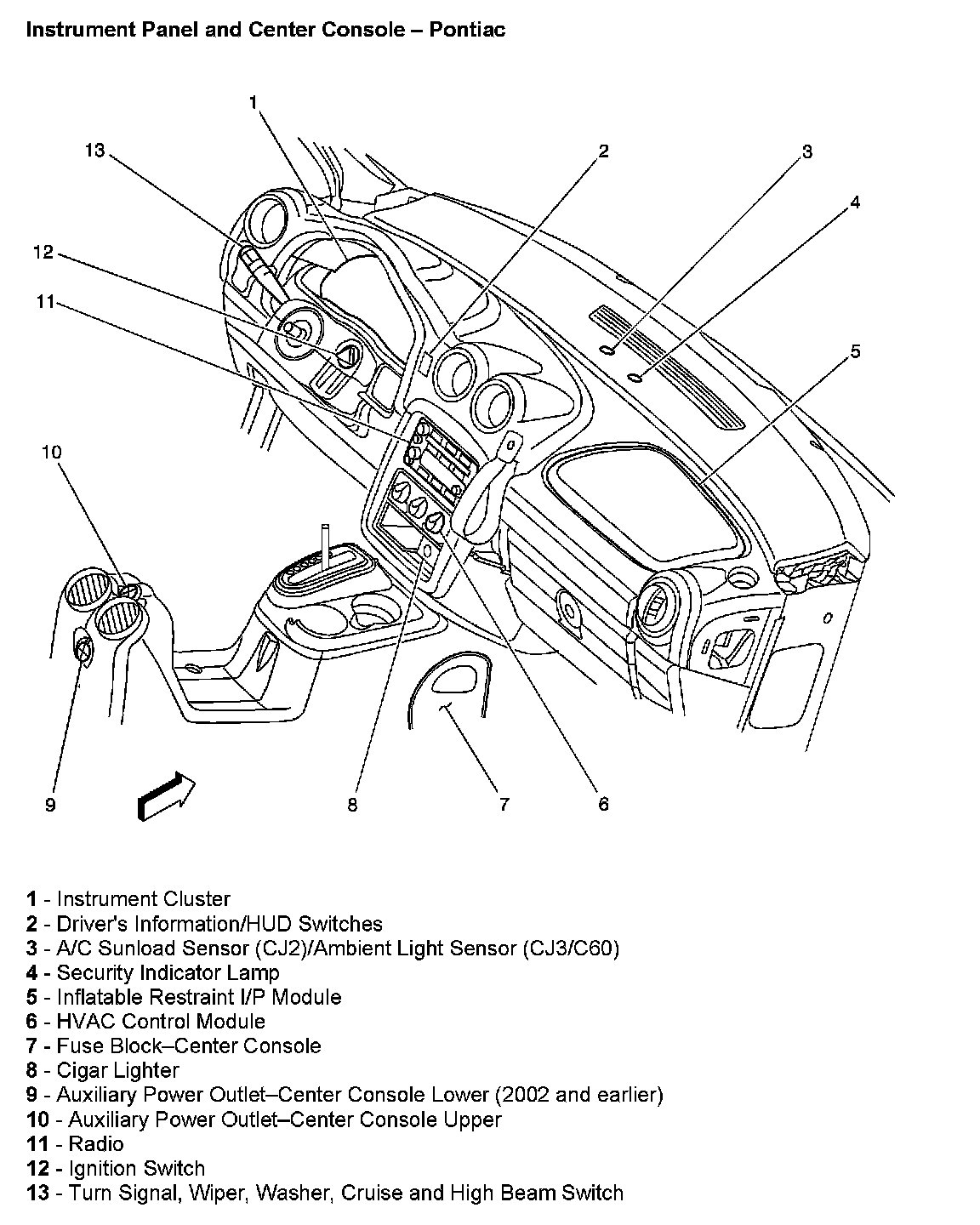

Instrument Panel And Center Console:



Computer/Integrating Systems Component Views:
