Fuse Block - Center Console C2
Fuse Block - Center Console C2

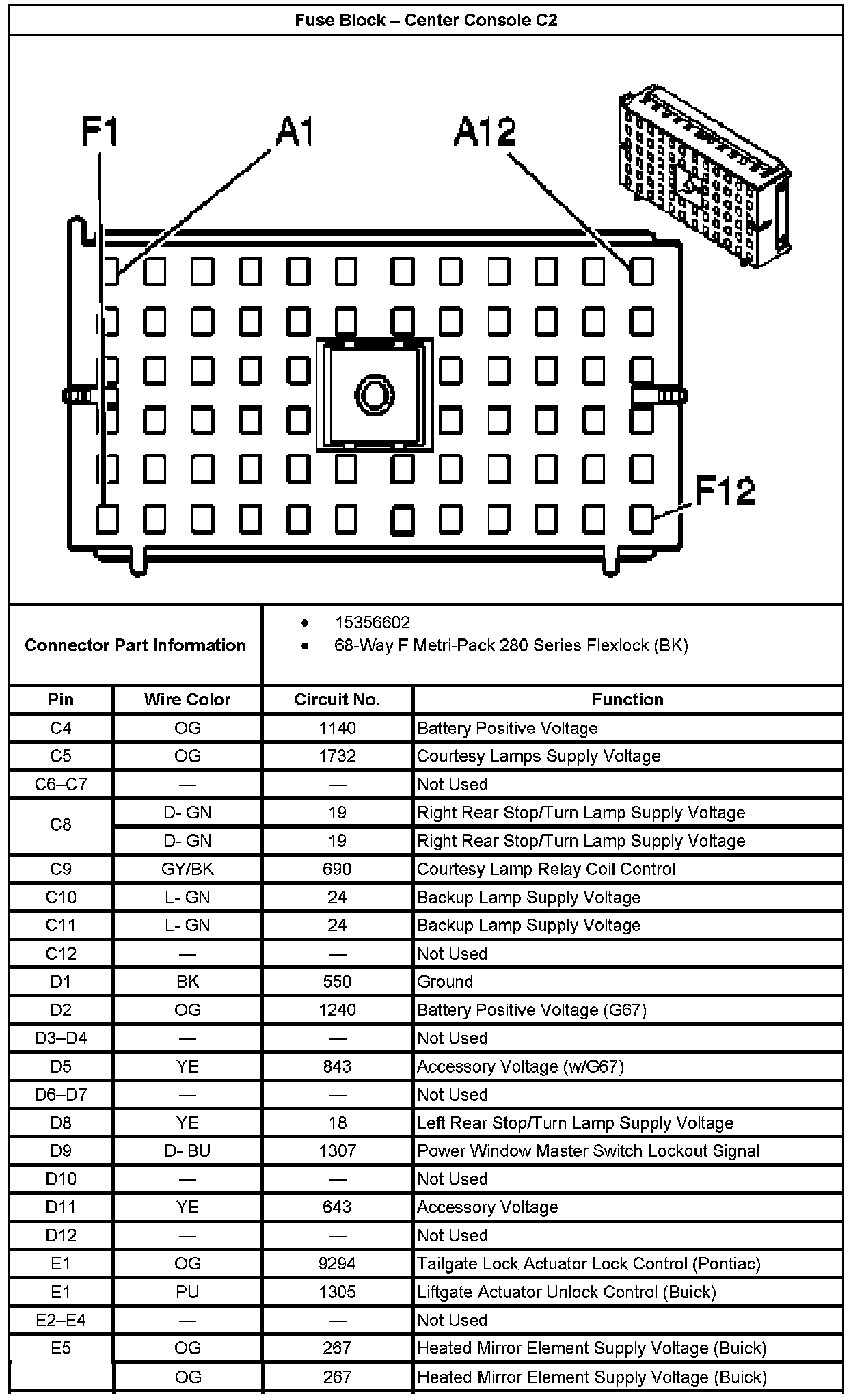

Fuse Block - Center Console C2 Part 1:

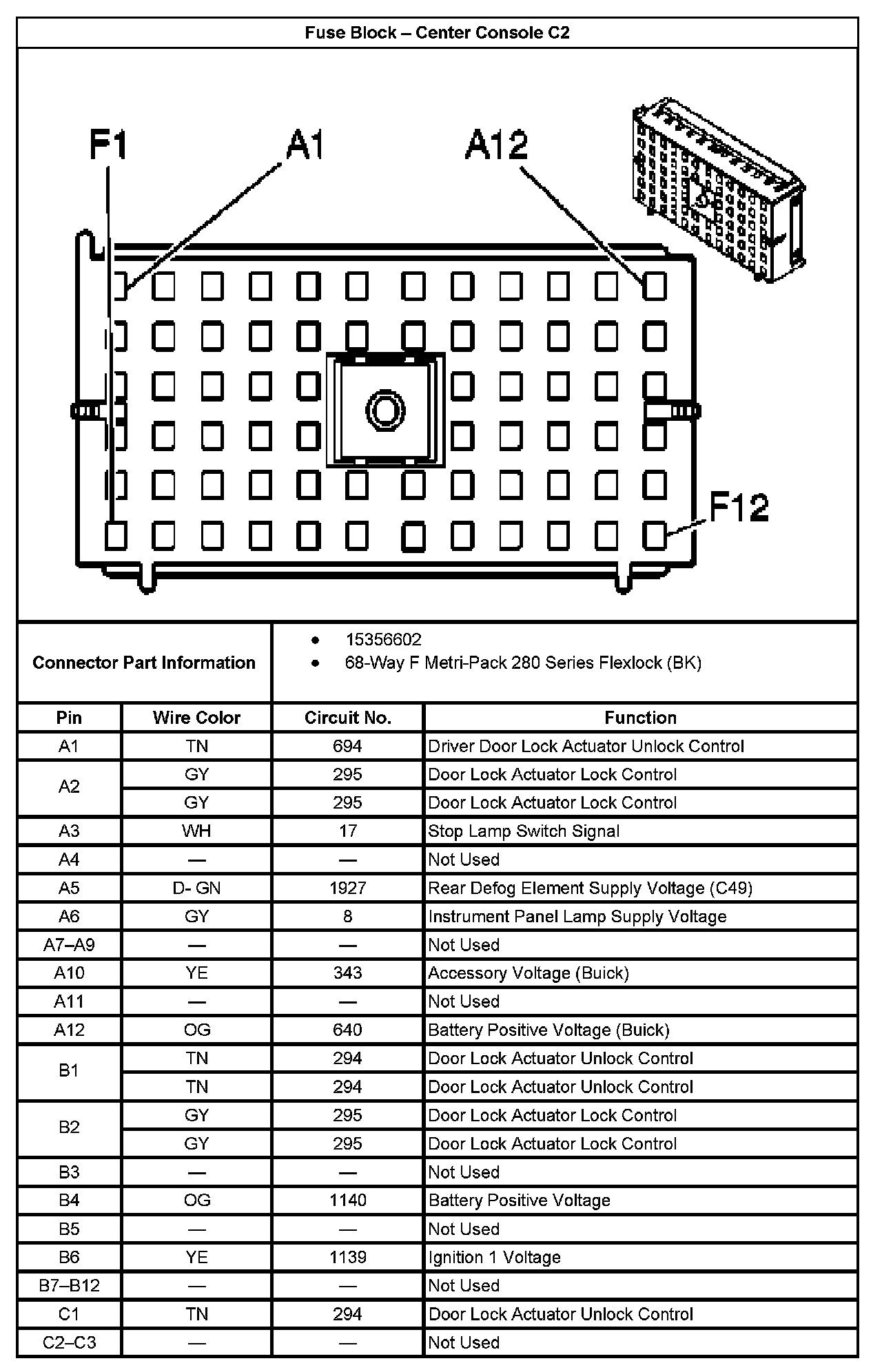

Fuse Block - Center Console C2 Part 2:

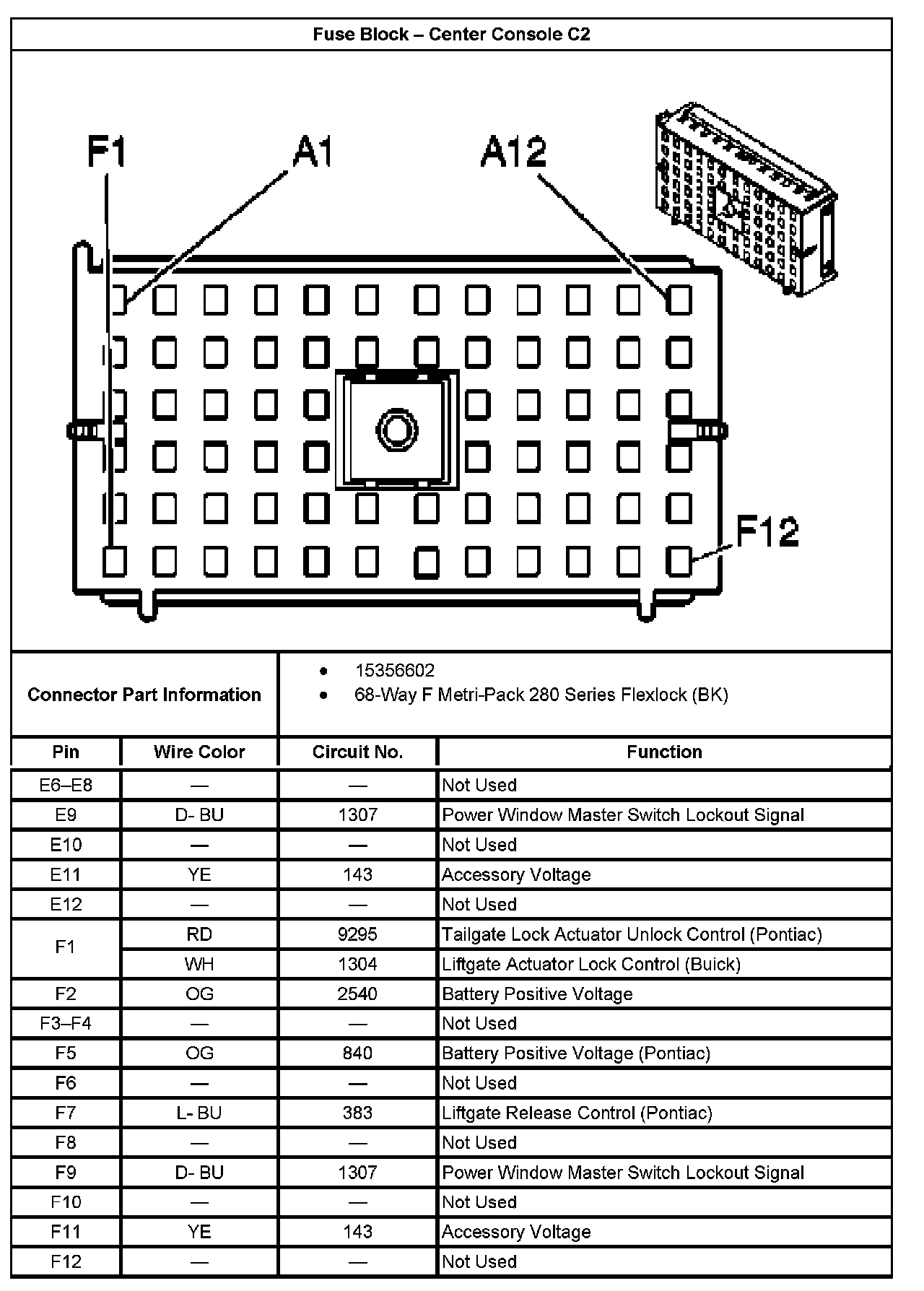

Fuse Block - Center Console C2 Part 3:
