Home >> Pontiac >> 2005 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams >> HVAC System - Manual

HVAC System - Manual

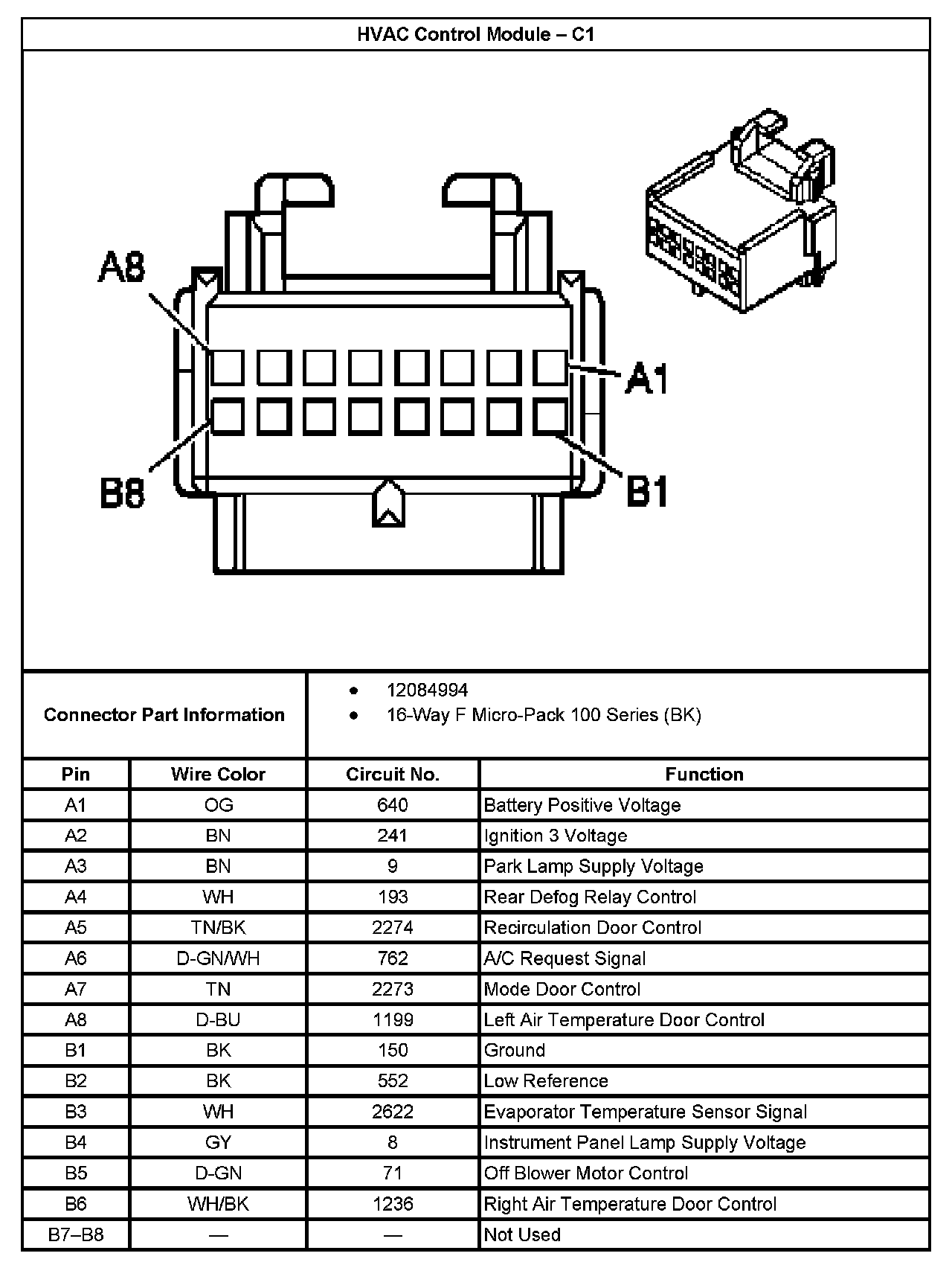

HVAC Control Module - C1:



HVAC Control Module - C2:
