Home >> Pontiac >> 2005 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Accessories and Optional Equipment >> Global Positioning System >> Global Positioning System Module >> Diagrams

Global Positioning System Module: Diagrams

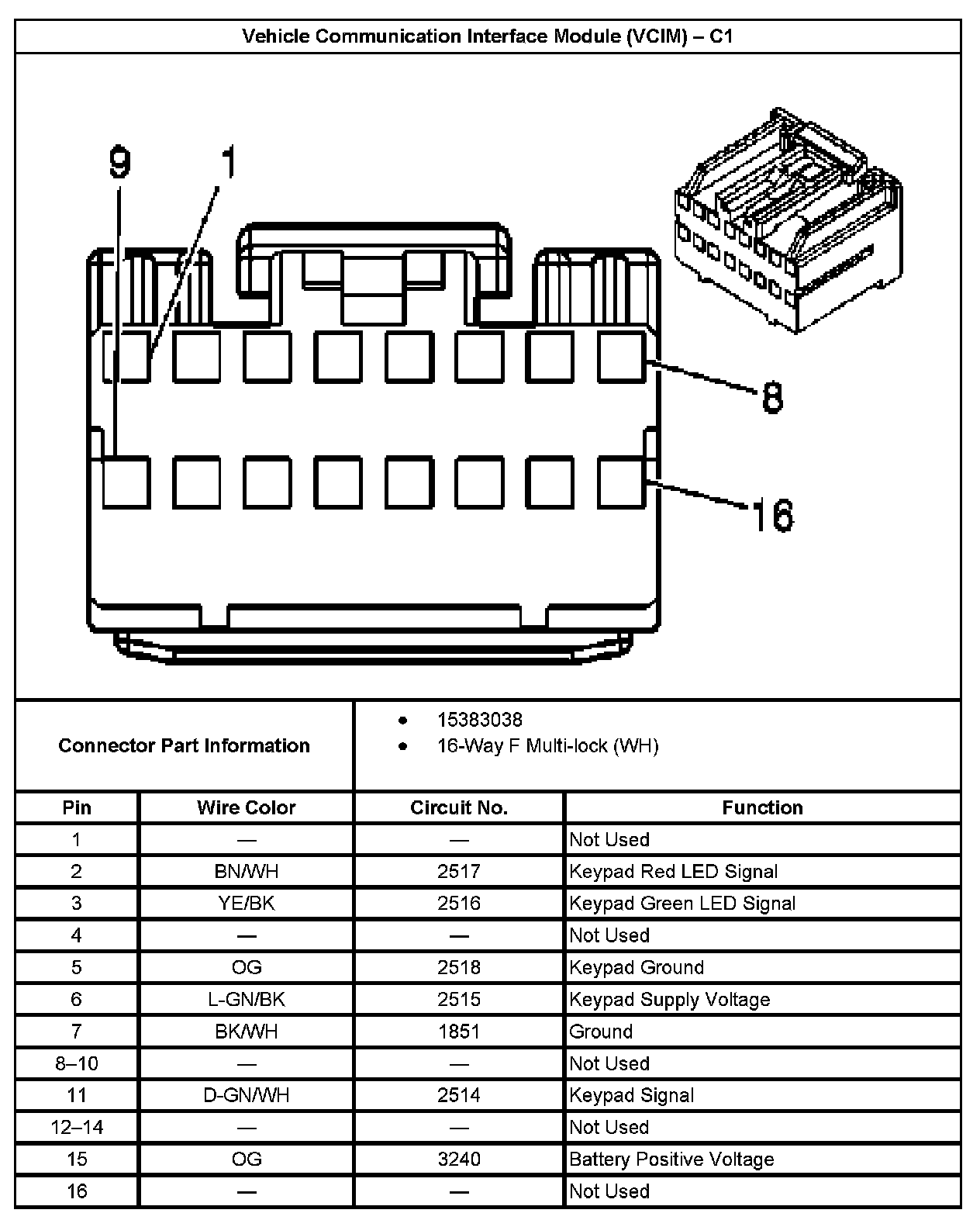

Vehicle Communication Interface Module (VCIM) - C1:

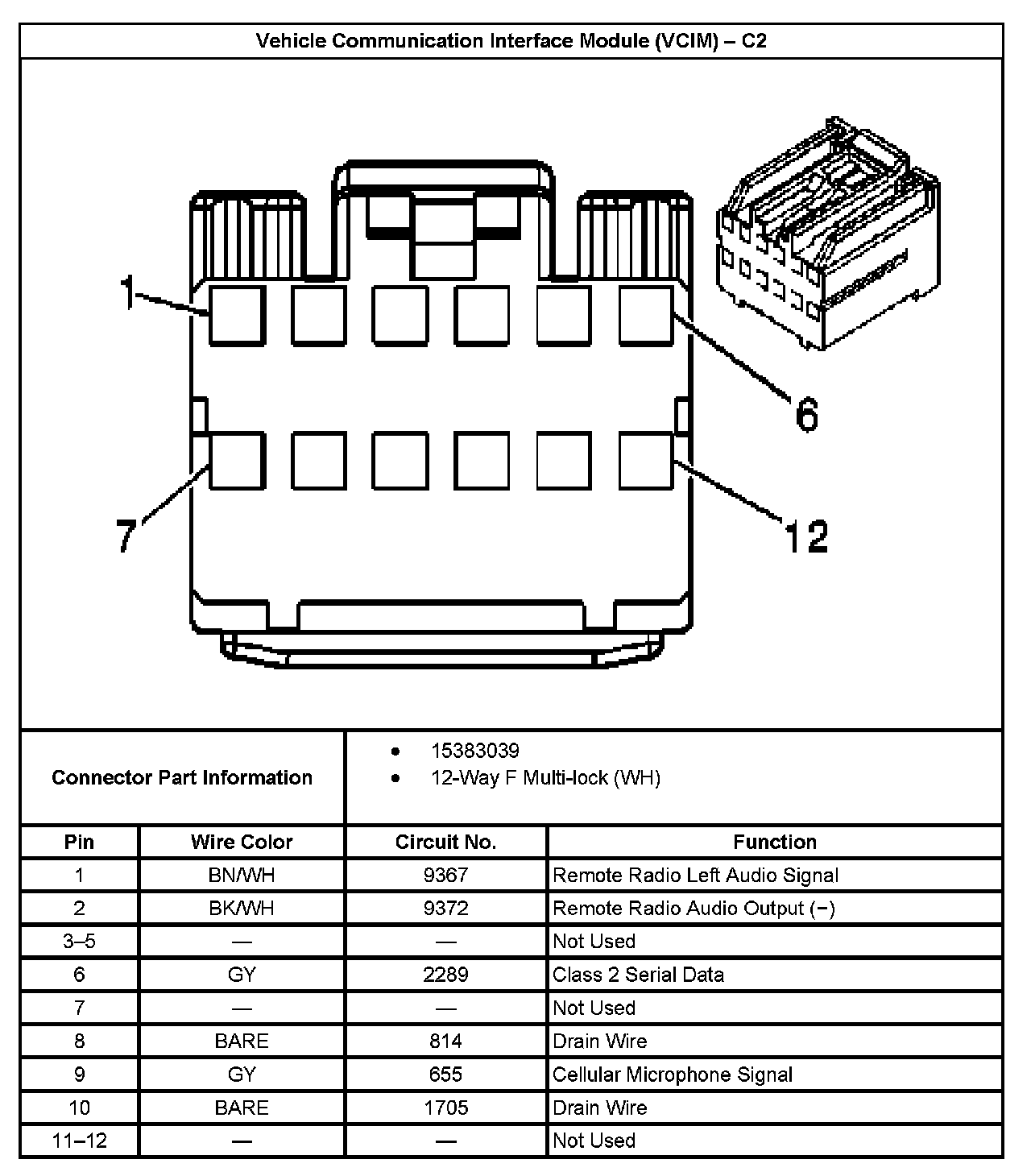

Vehicle Communication Interface Module (VCIM) - C2:
