Differential Assembly

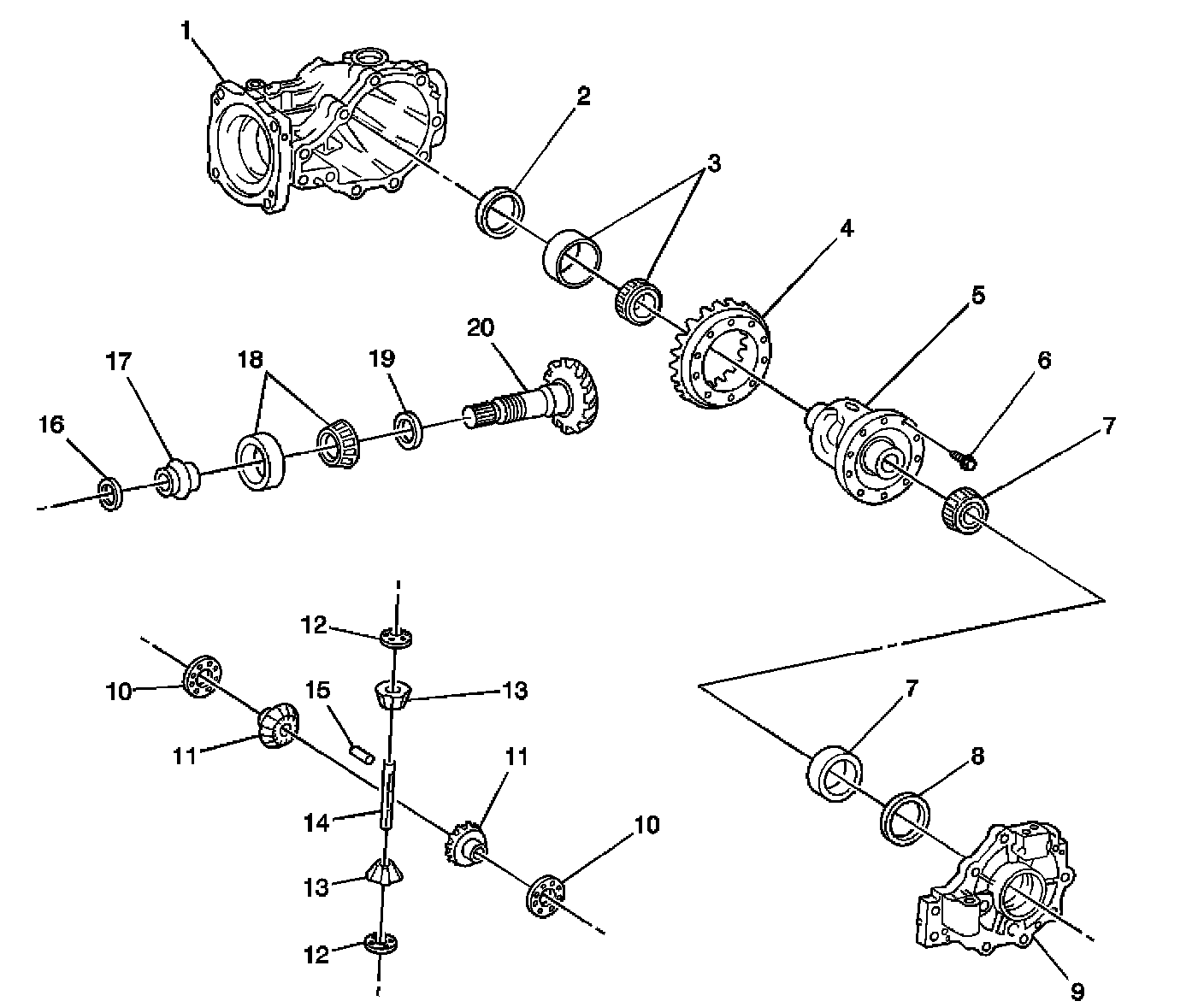

Differential Carrier Assembly Disassembled Views

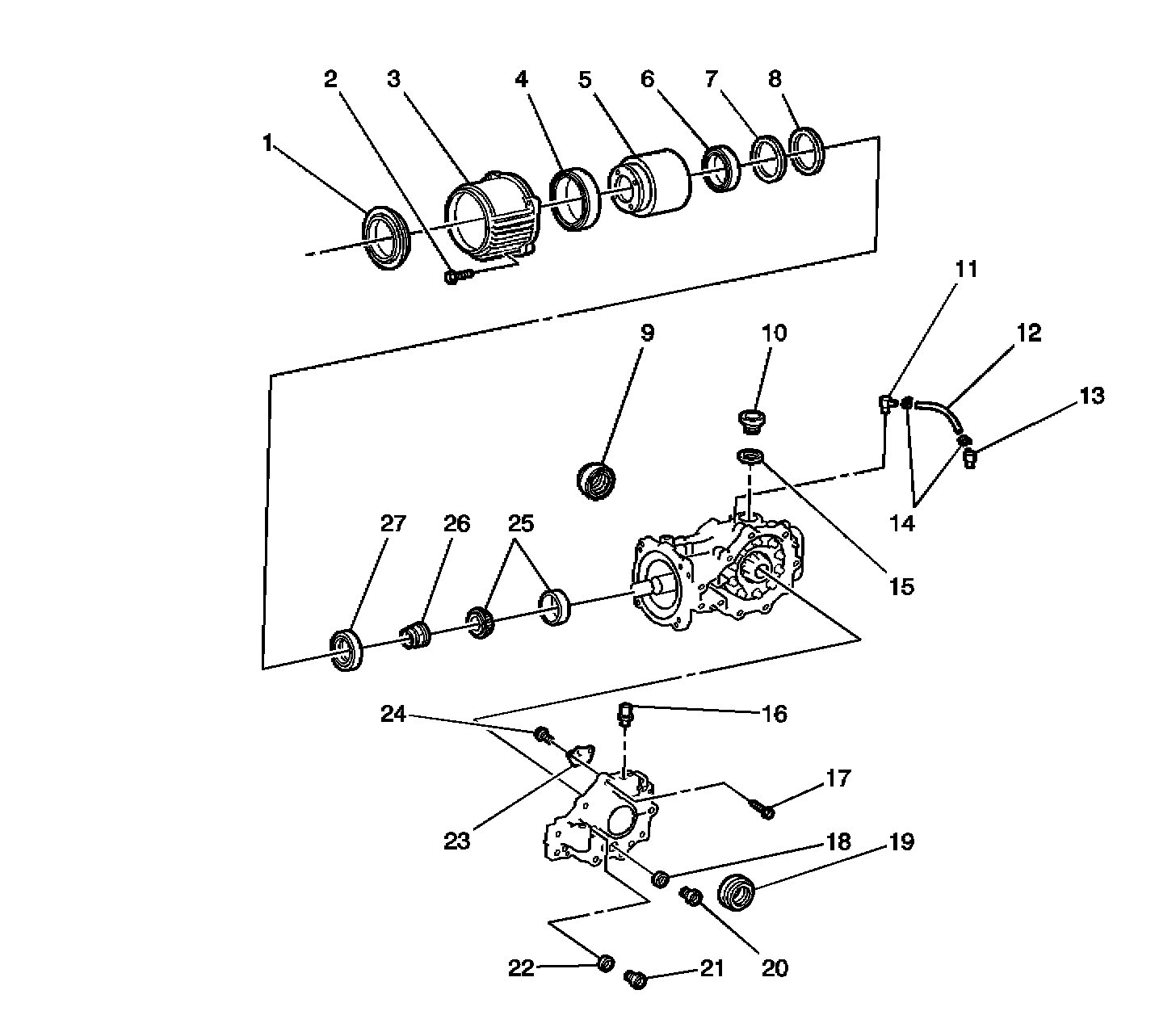

Rear Axle Disassembled View





Rear Axle Internal Components

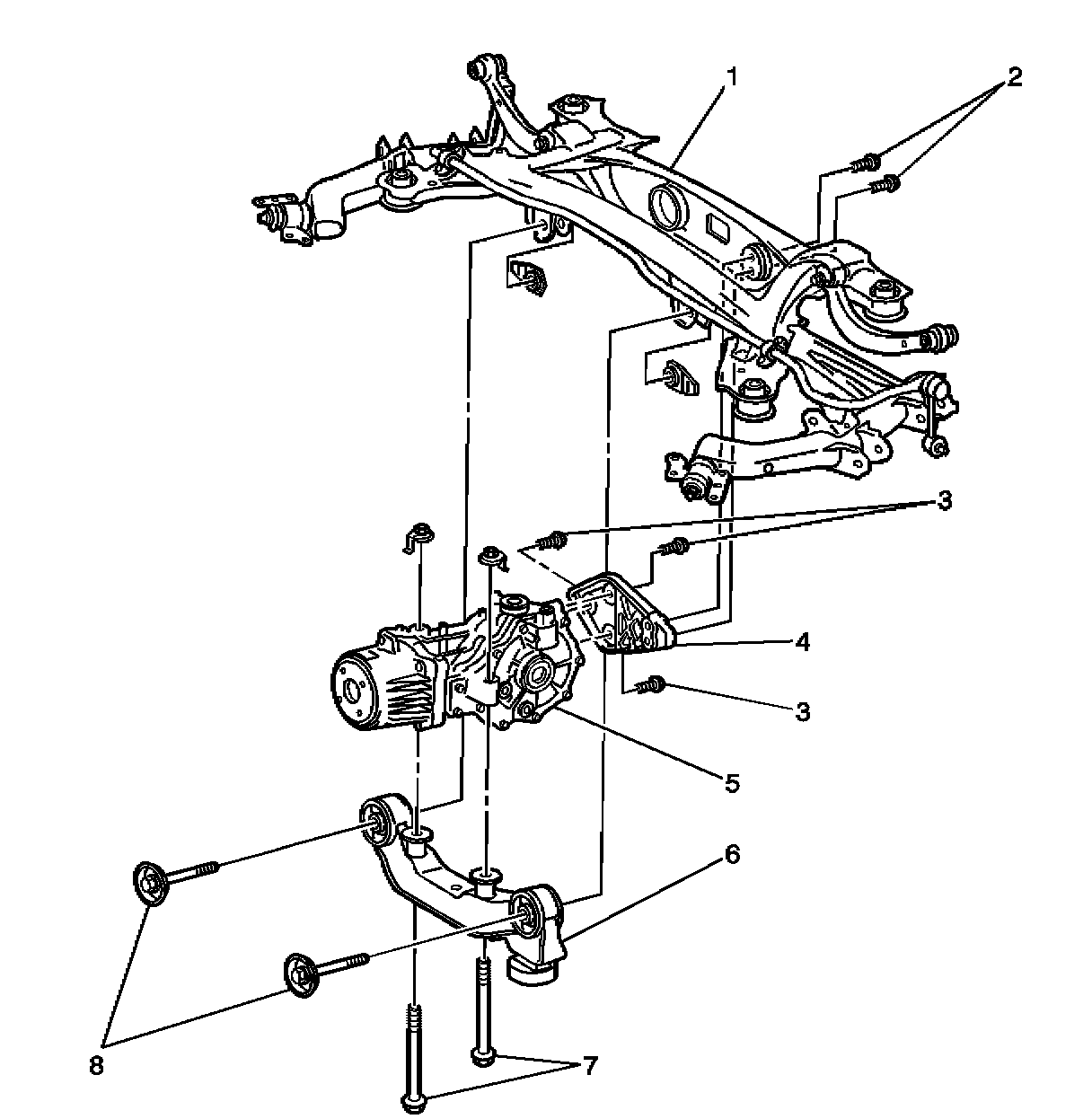

Rear Axle Mounting Components

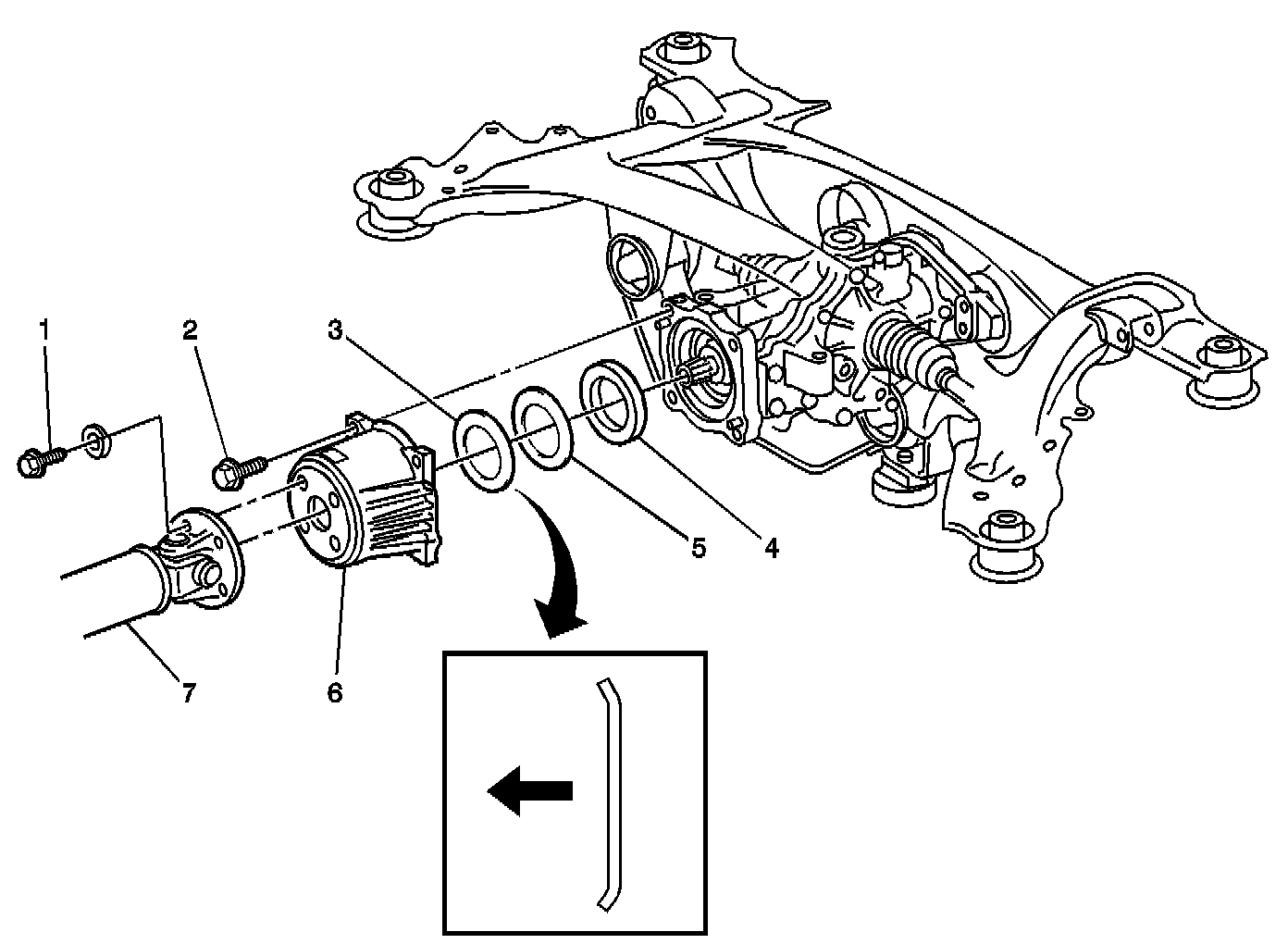

Rear Axle Carrier Coupling Cover
