Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly

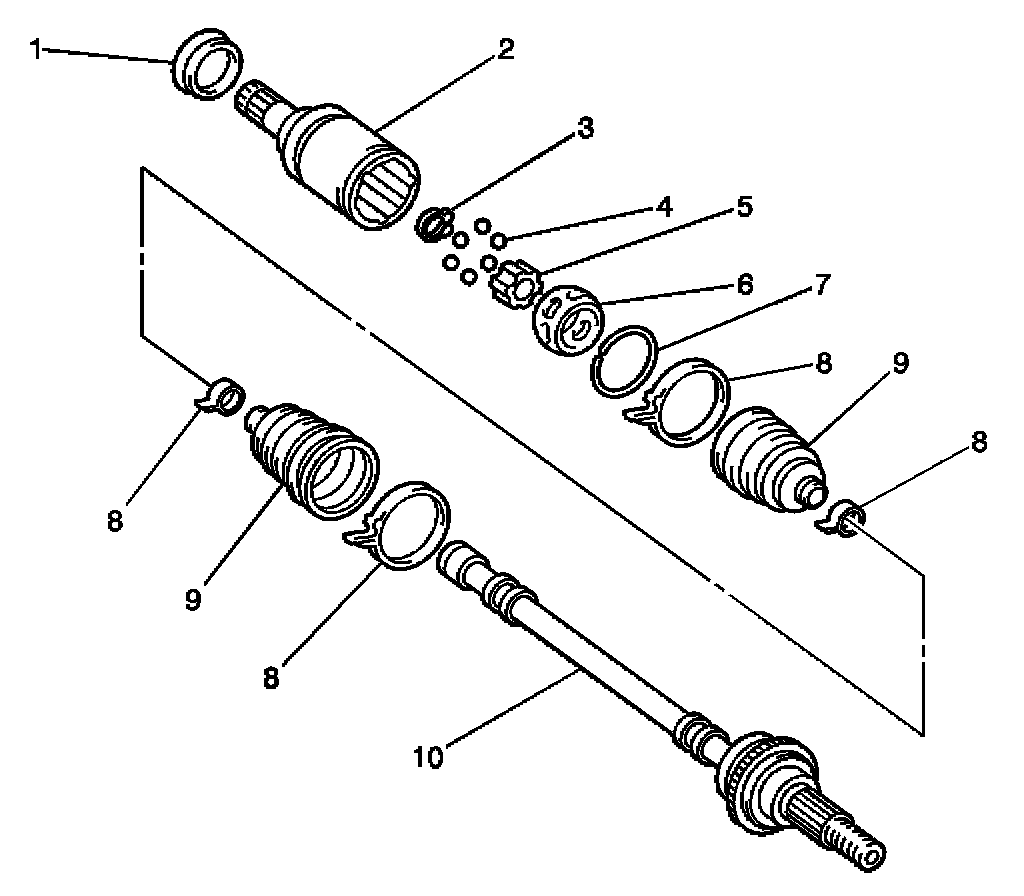

Axle Shaft Assembly

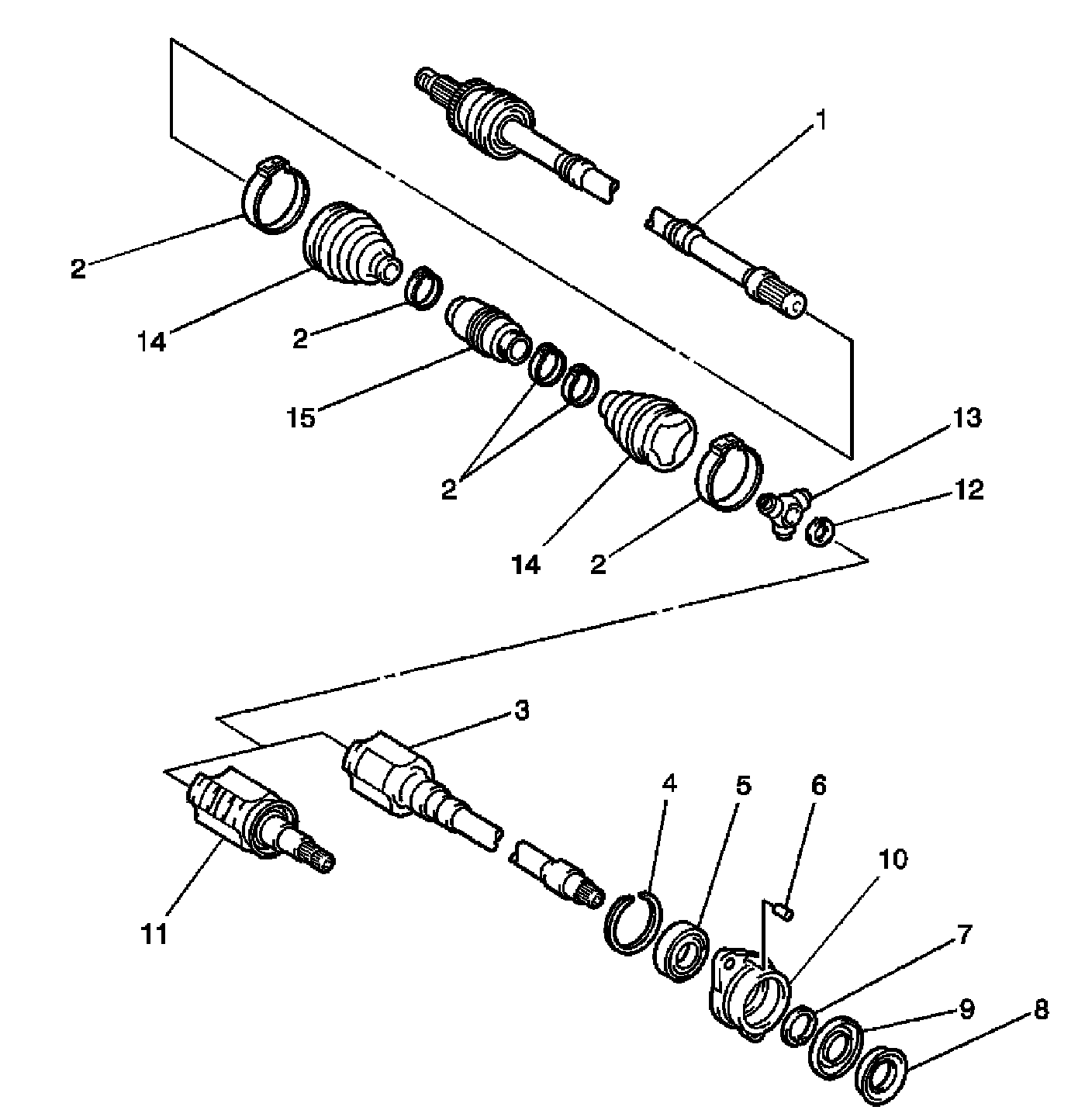

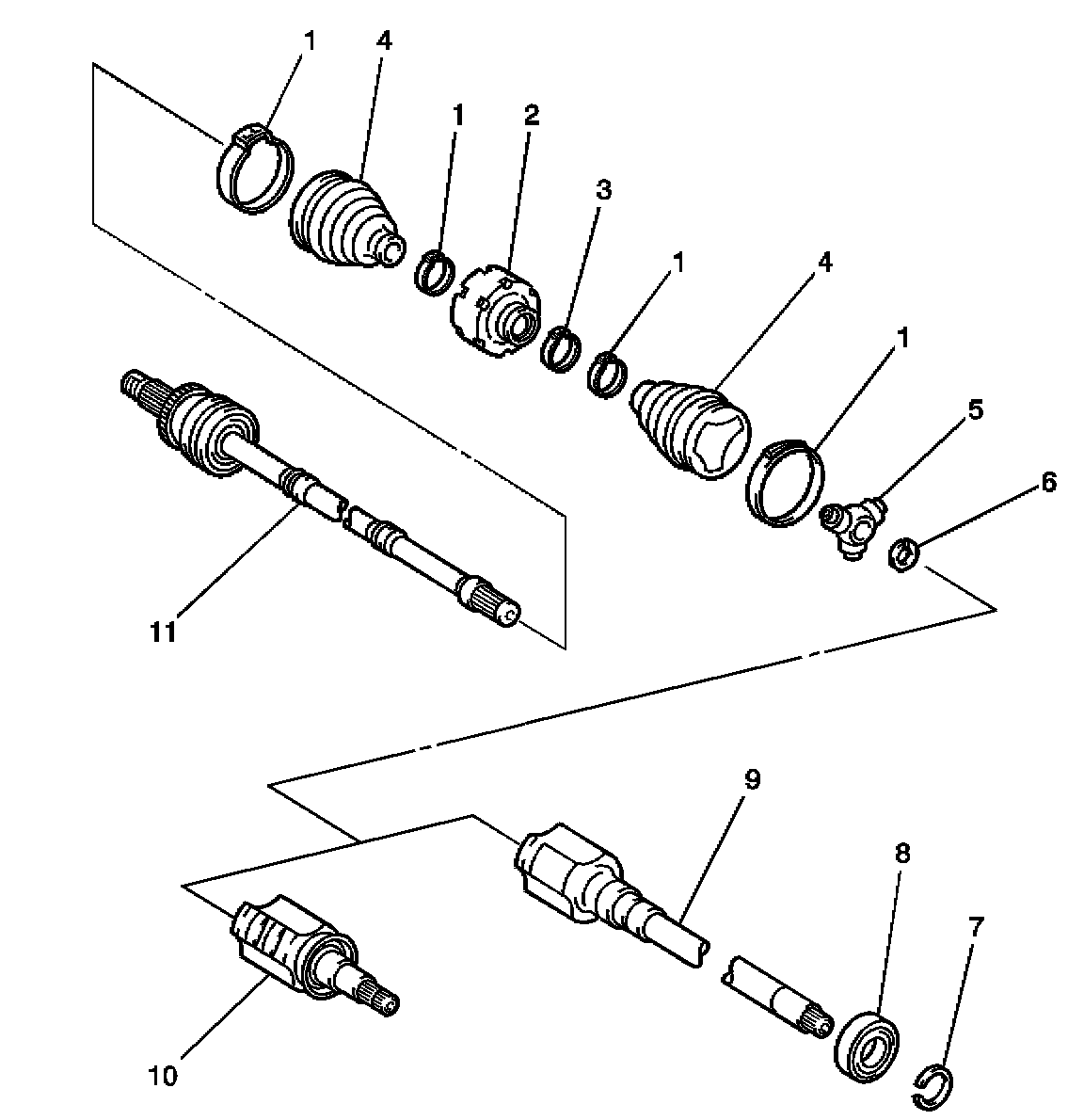

Wheel Drive Shafts Disassembled Views (Front)
With LV6 Engine
With LNK Engine
Wheel Drive Shafts Disassembled Views (Rear)
