Back View of the Connector

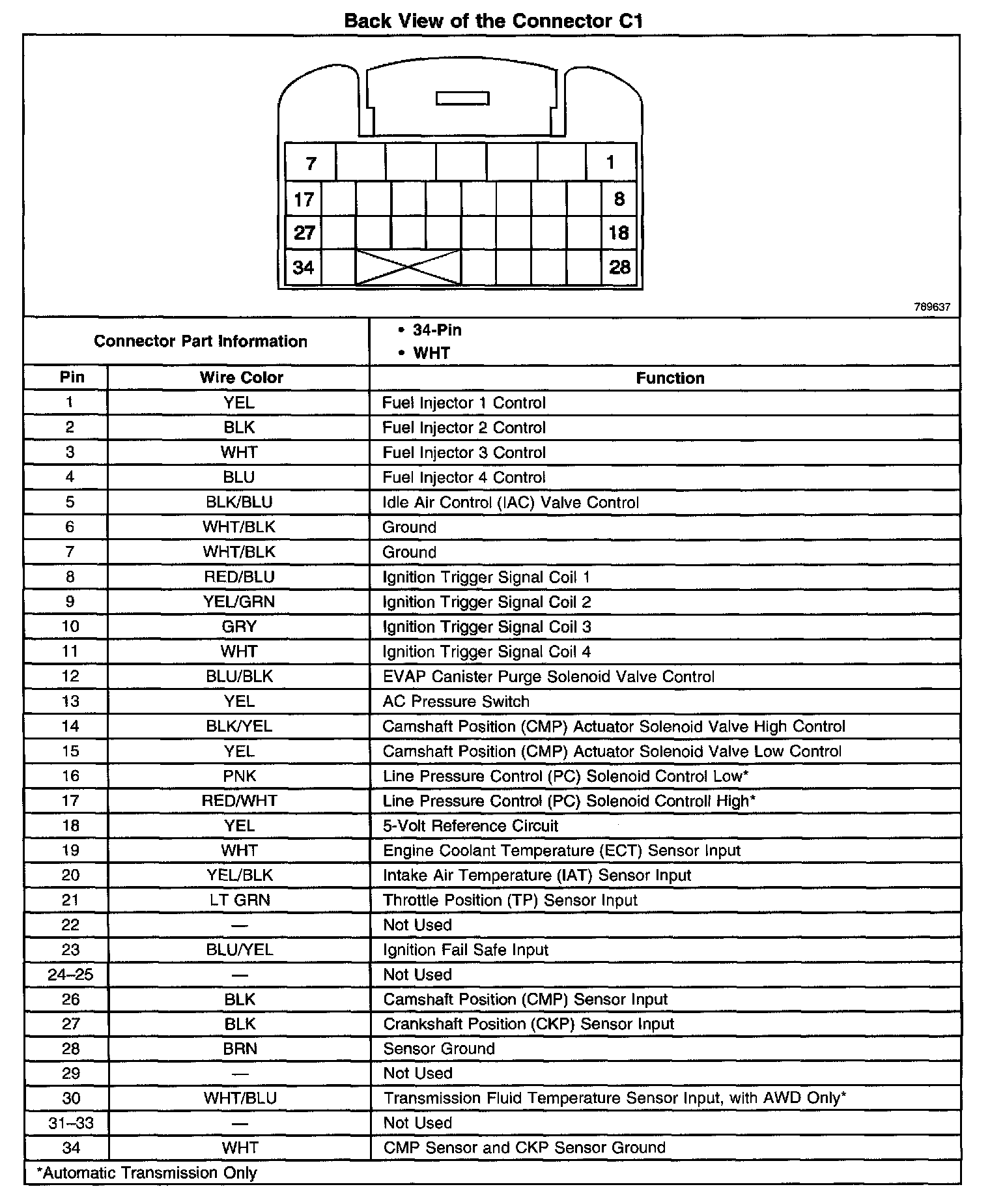

Back View Of The Connector C1:

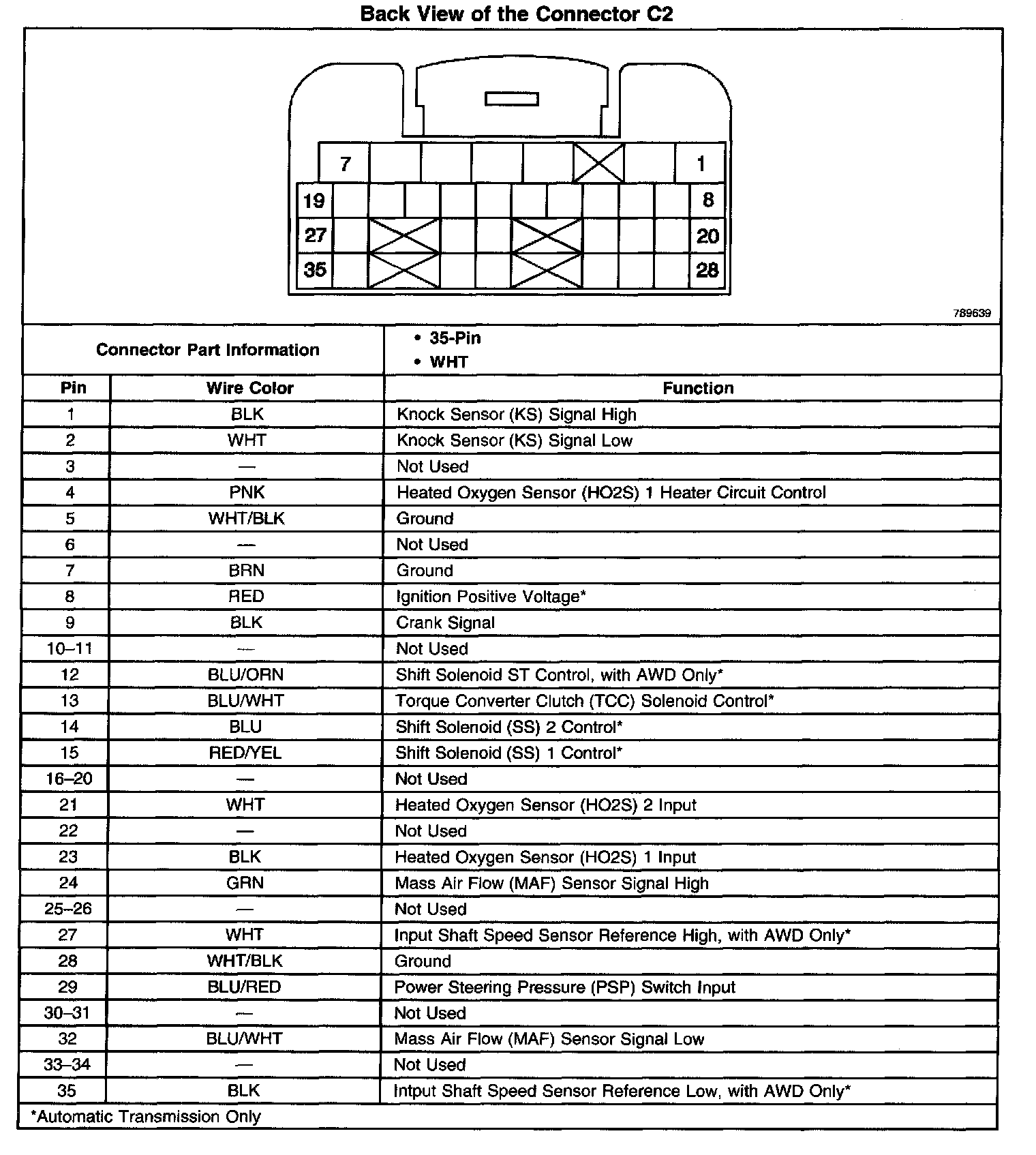

Back View Of The Connector C2:

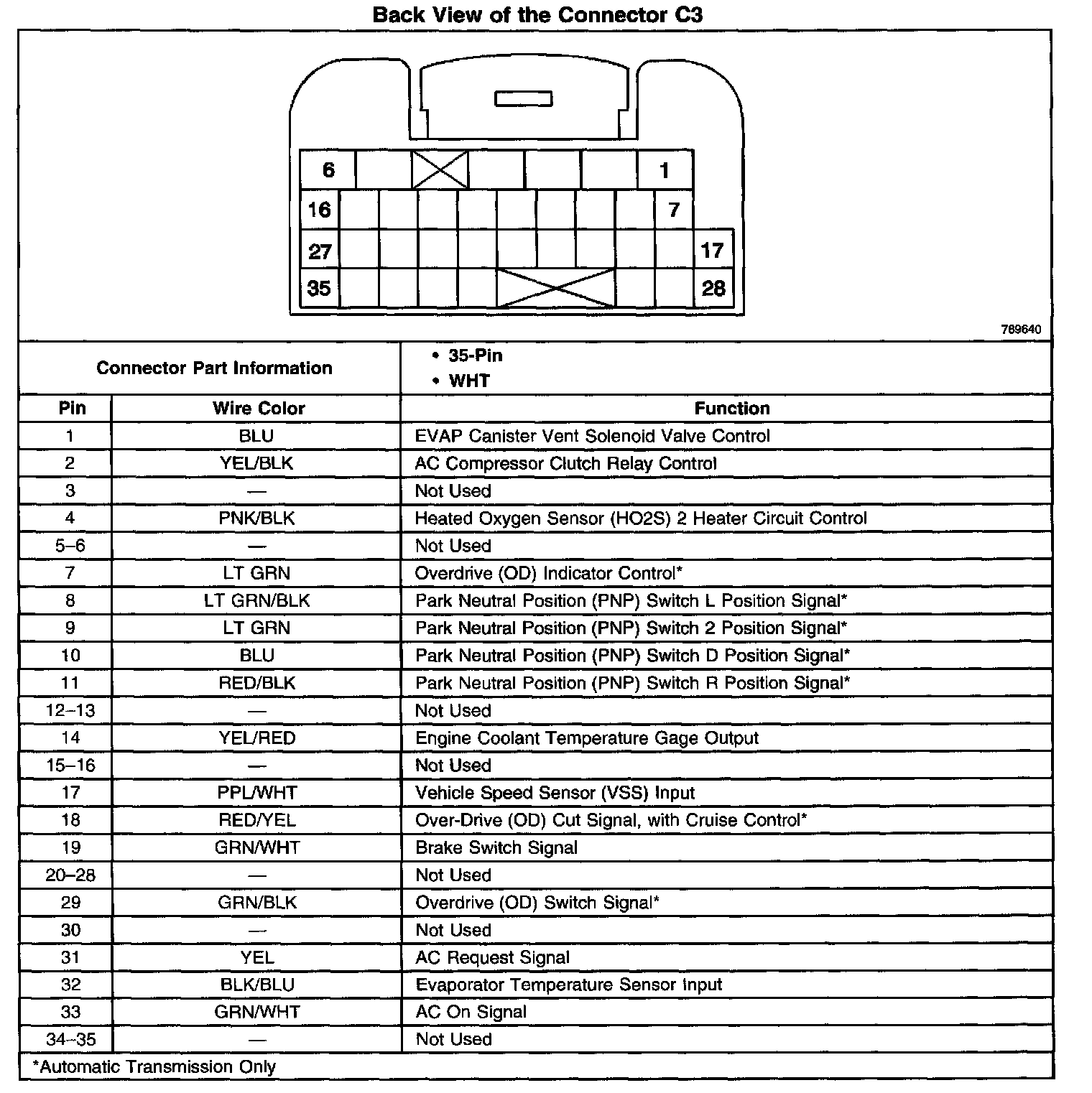

Back View Of The Connector C3:

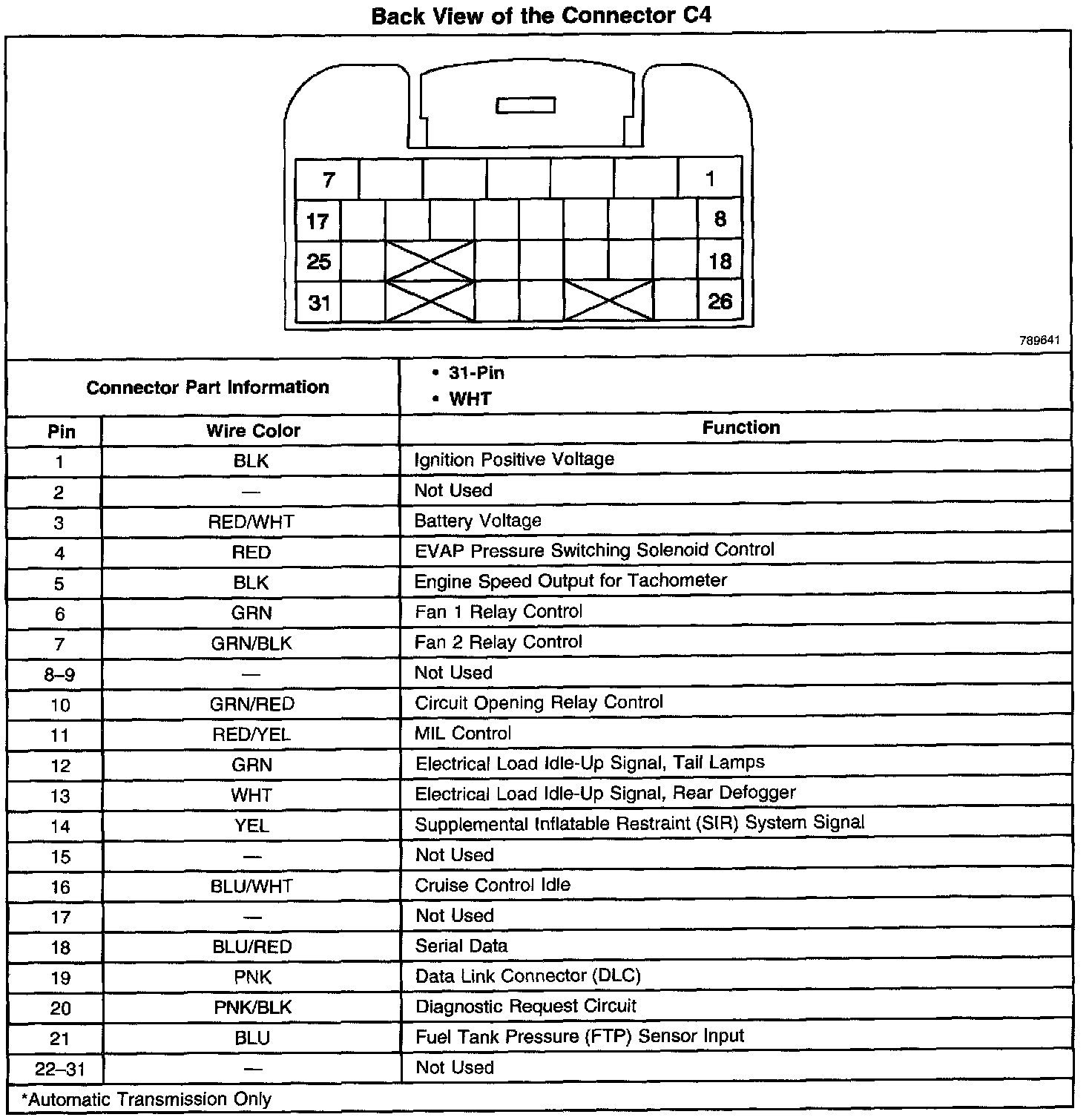

Back View Of The Connector C4:
