LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

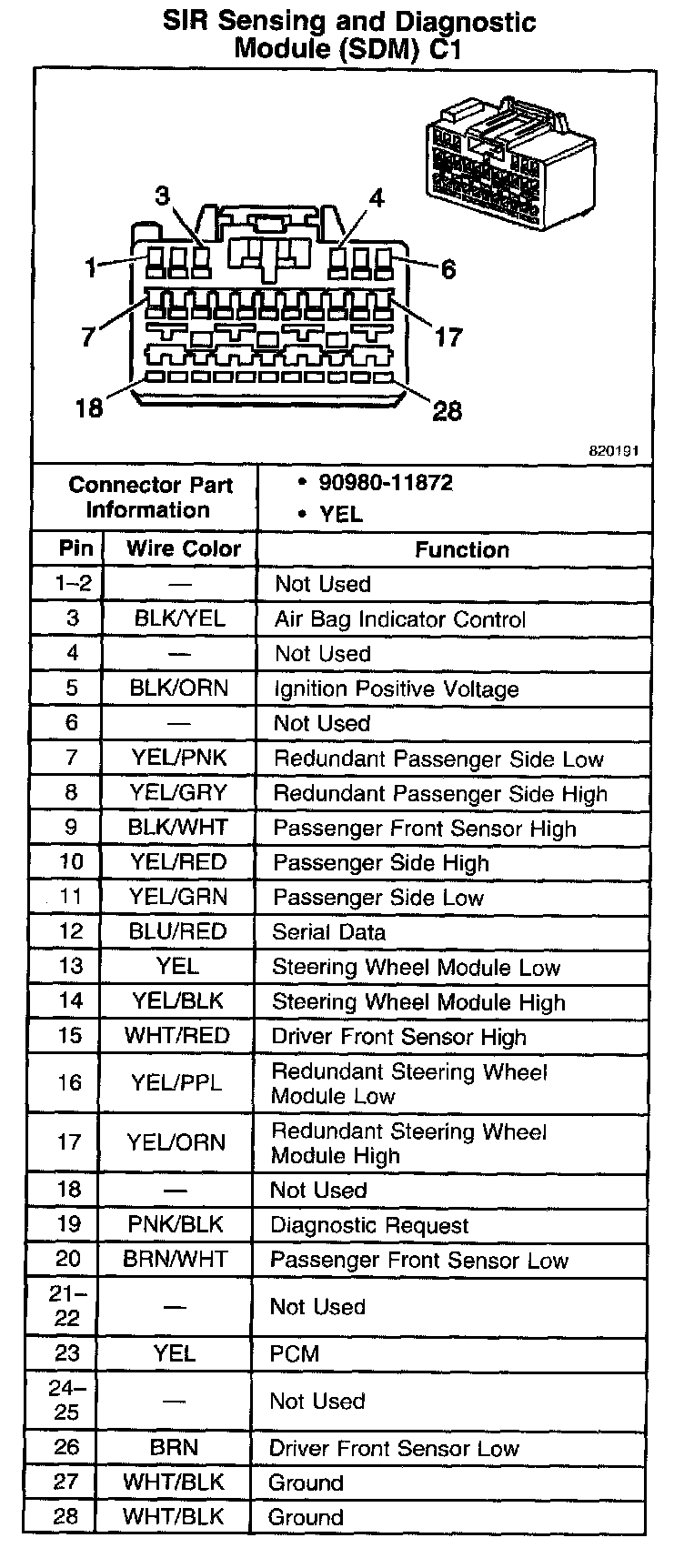

SIR Sensing And Diagnostic Module (SDM) C1:

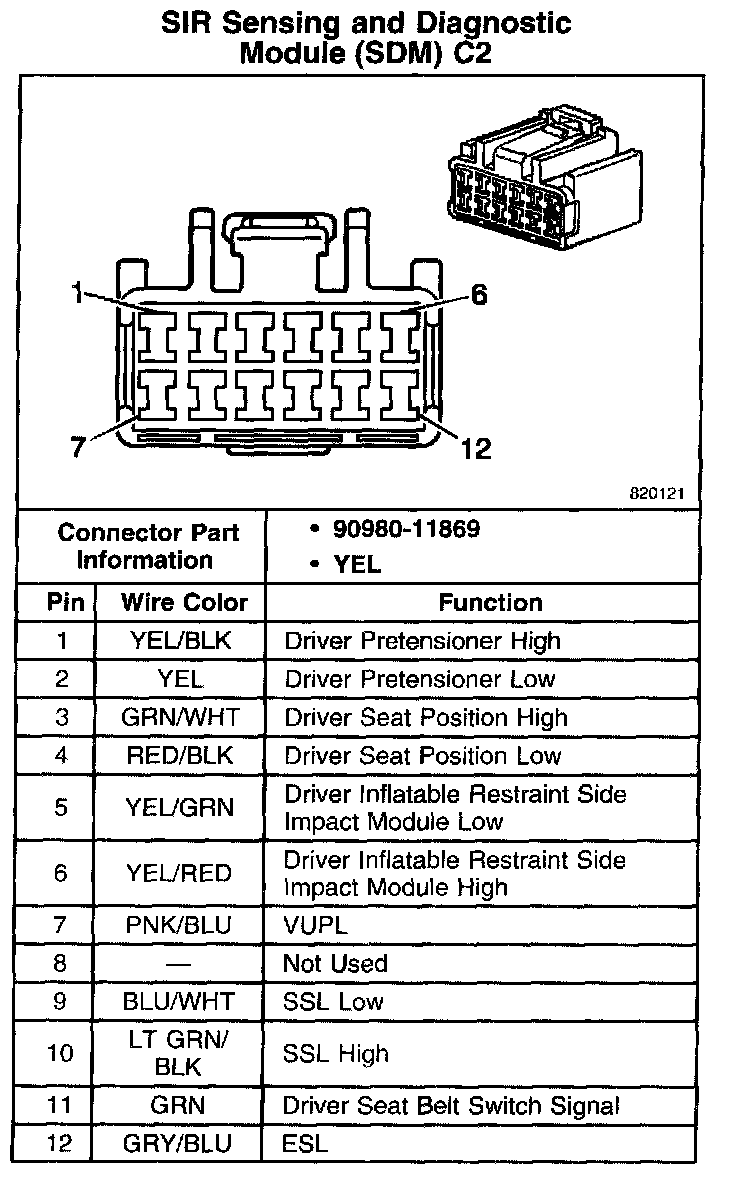

SIR Sensing And Diagnostic Module (SDM) C2:
SIR Sensing And Diagnostic Module (SDM) C3:
