Home >> Pontiac >> 2004 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Ignition Switch

Ignition Switch

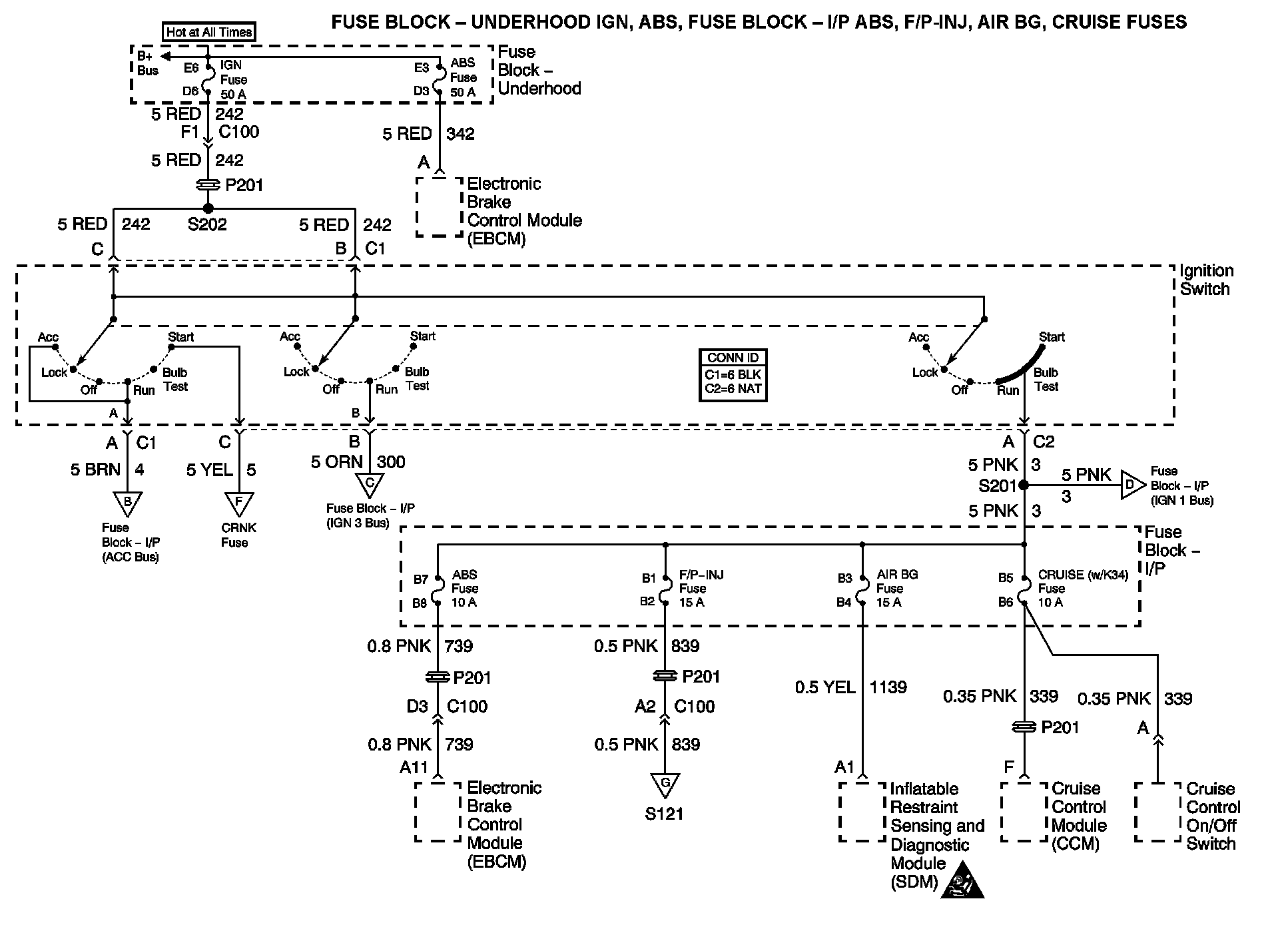

Power Distribution Diagram 5:
