Number One Cylinder: Locations

NUMBER 1 CYLINDER

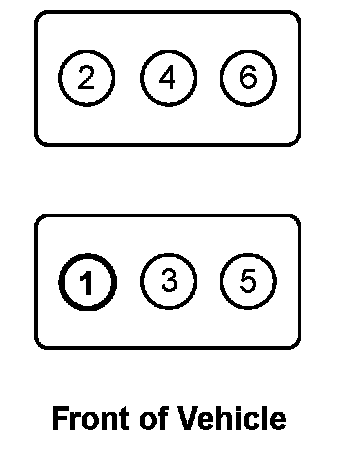

Starting from the front of the engine, the left bank cylinders are 1, 3, 5. The right bank cylinders are 2, 4, 6.

For ignition system firing order, Specifications
