Home >> Pontiac >> 2004 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

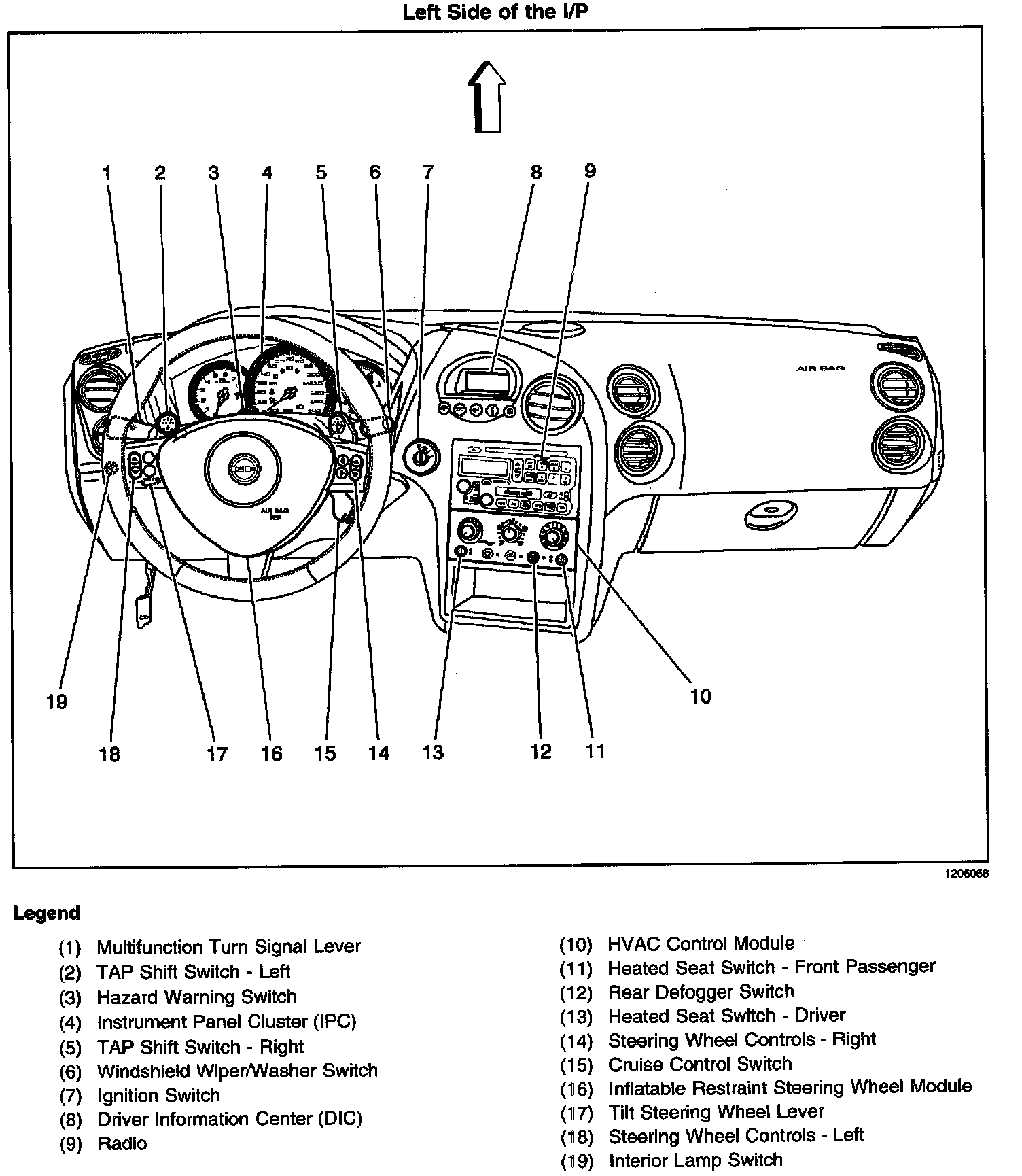

Left Side Of The I/P:

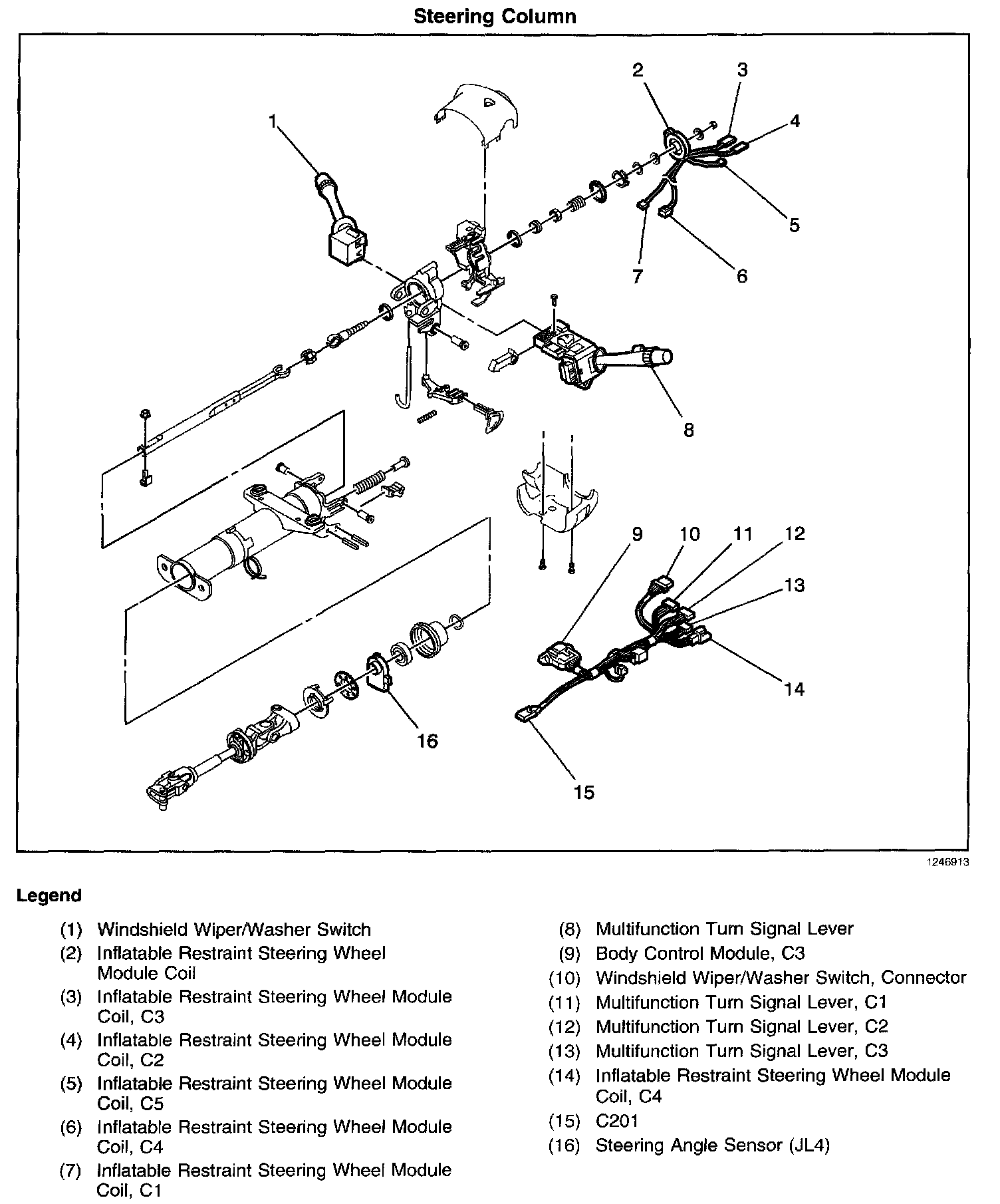

Steering Column:
