Home >> Pontiac >> 2004 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

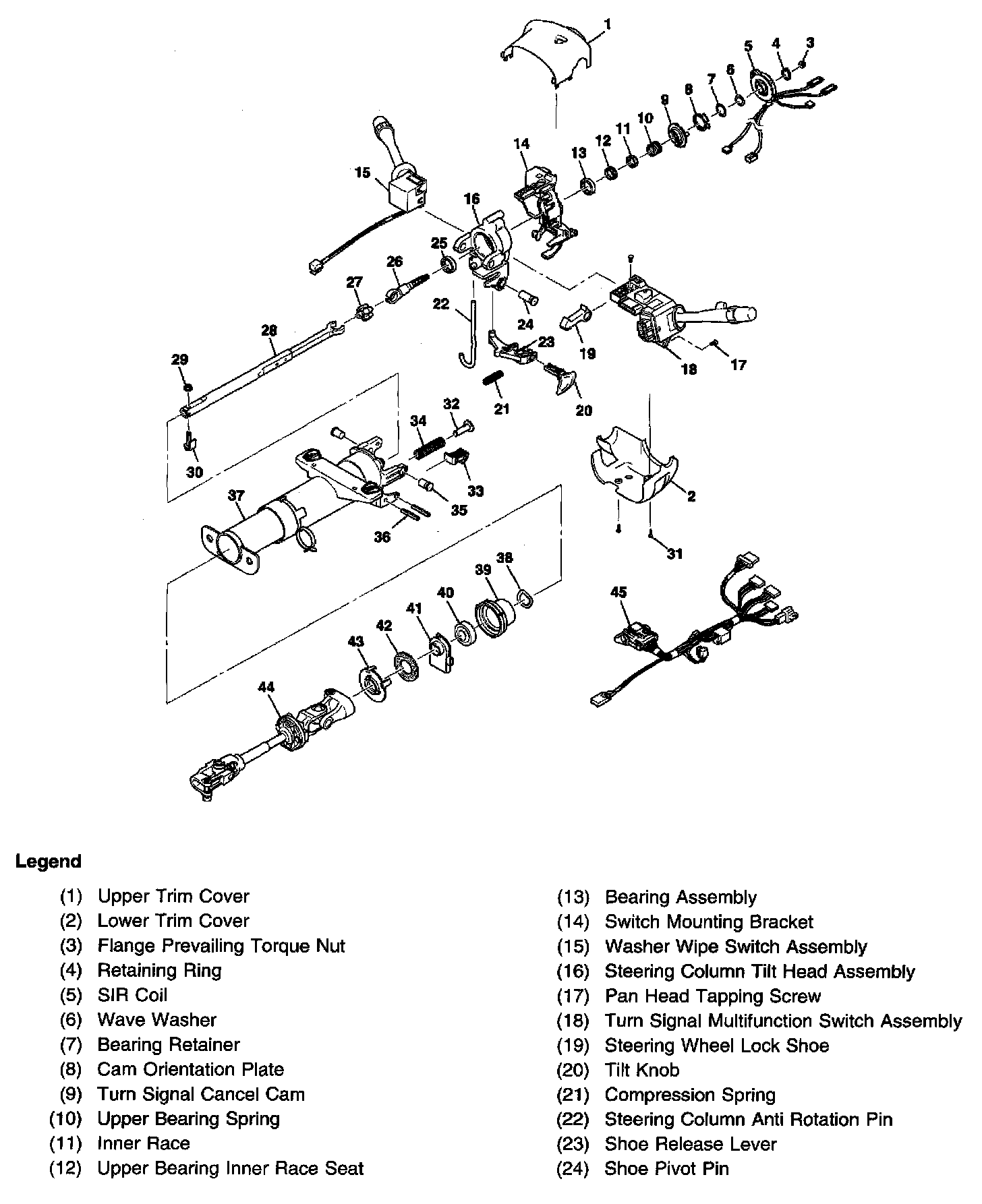

Steering Column Disassembled View (Part 1 Of 2):



Steering Column Disassembled View (Part 2 Of 2):
