Home >> Pontiac >> 2004 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly

Axle Shaft Assembly

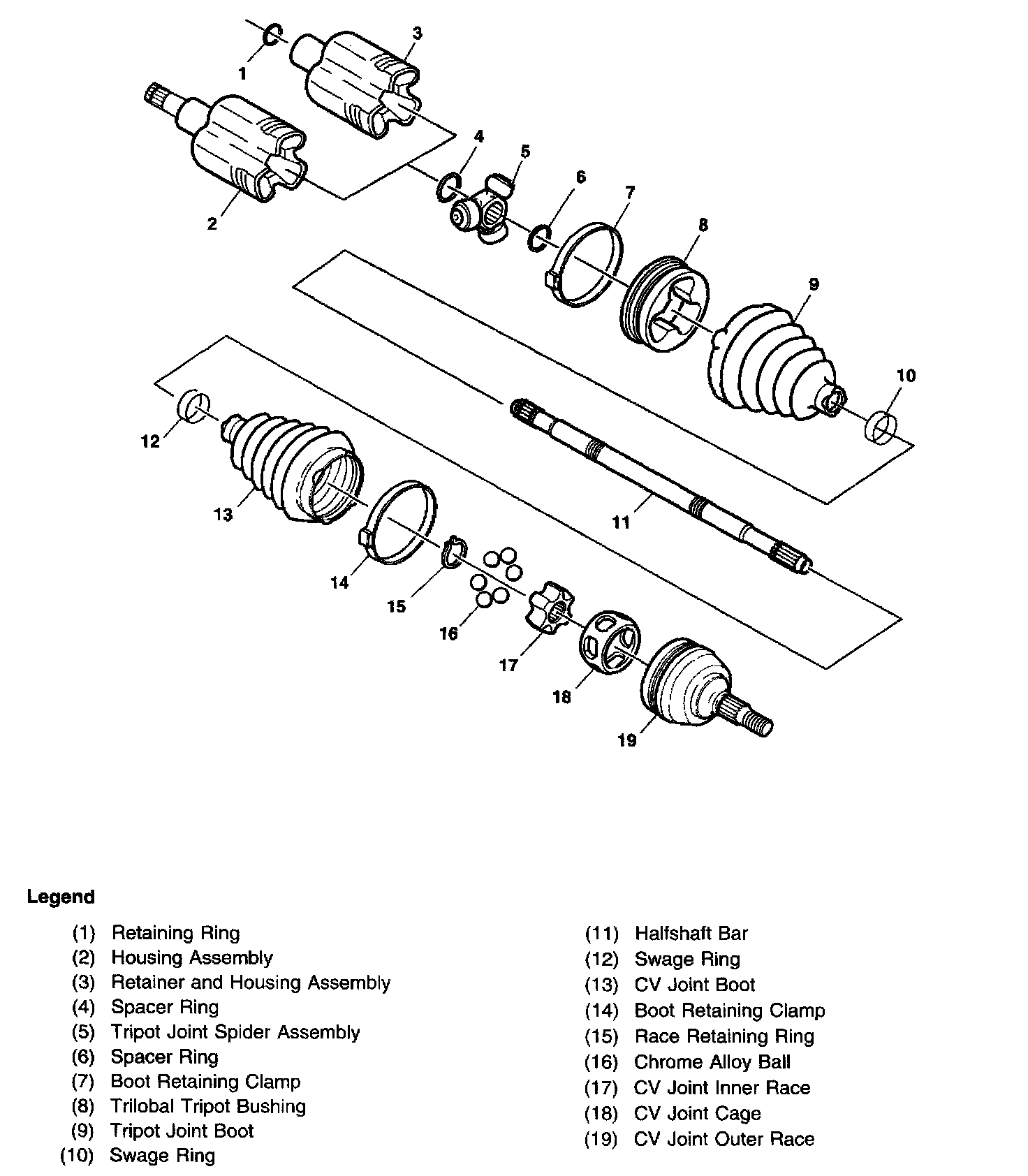

Wheel Drive Shafts Disassembled Views:
