Air Bag Control Module

Inflatable Restraint Seat Belt Pretensioner - Left:



Inflatable Restraint Seat Belt Pretensioner - Right:

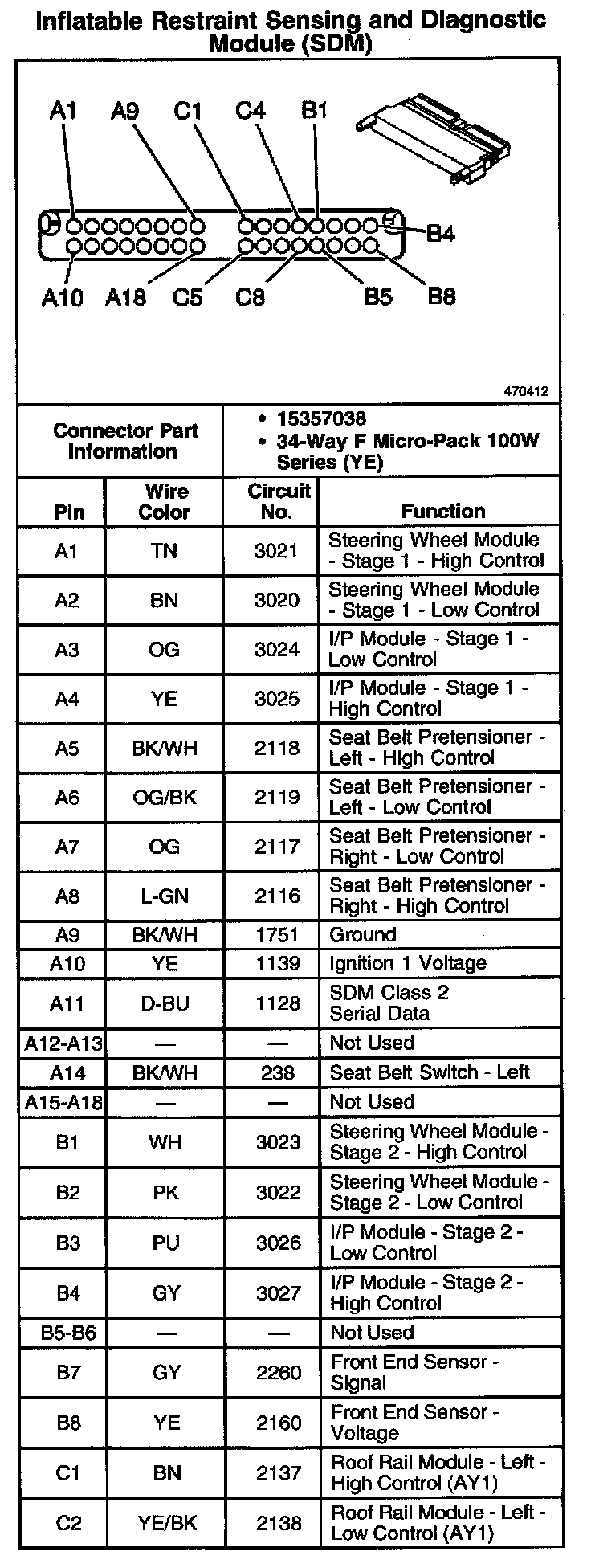

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 1:

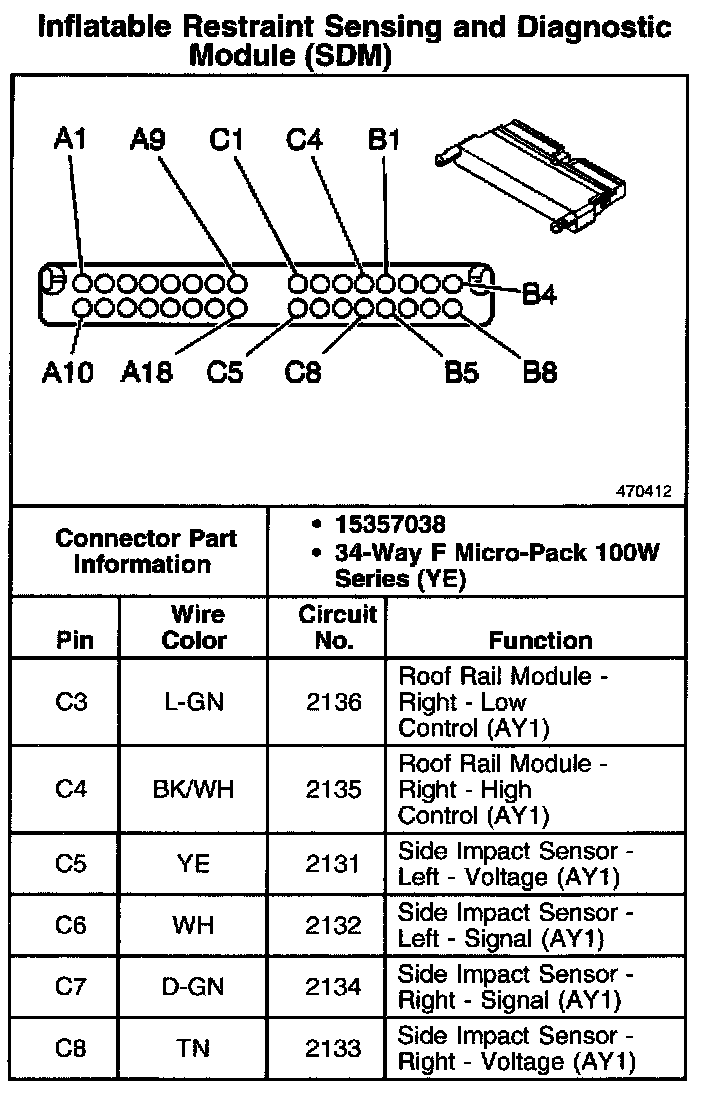

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 2:
