GTO V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Connector Locations
Connector Locations
Harness Routing Views (Transmission Harness):

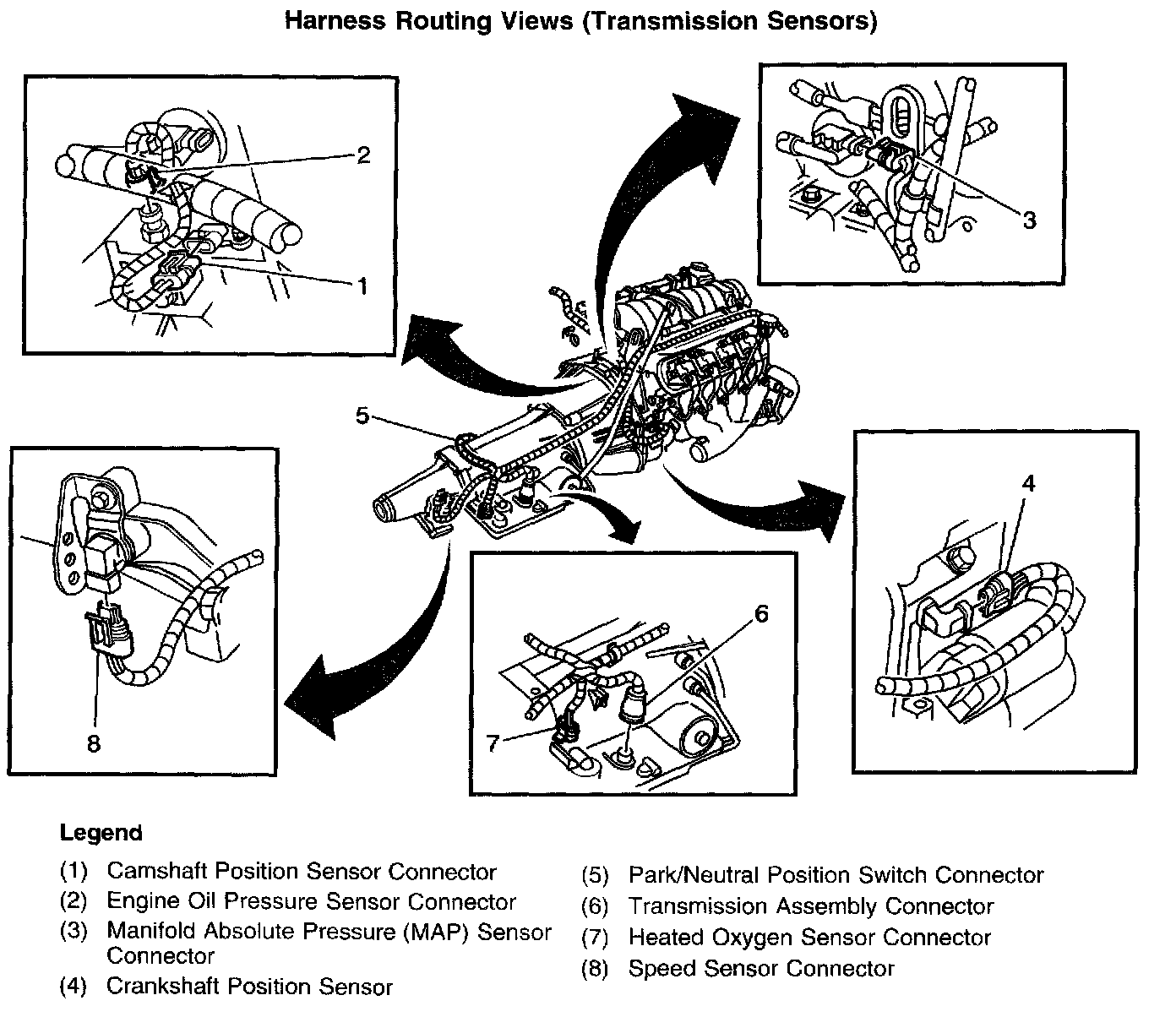

Harness Routing Views (Transmission Sensors):

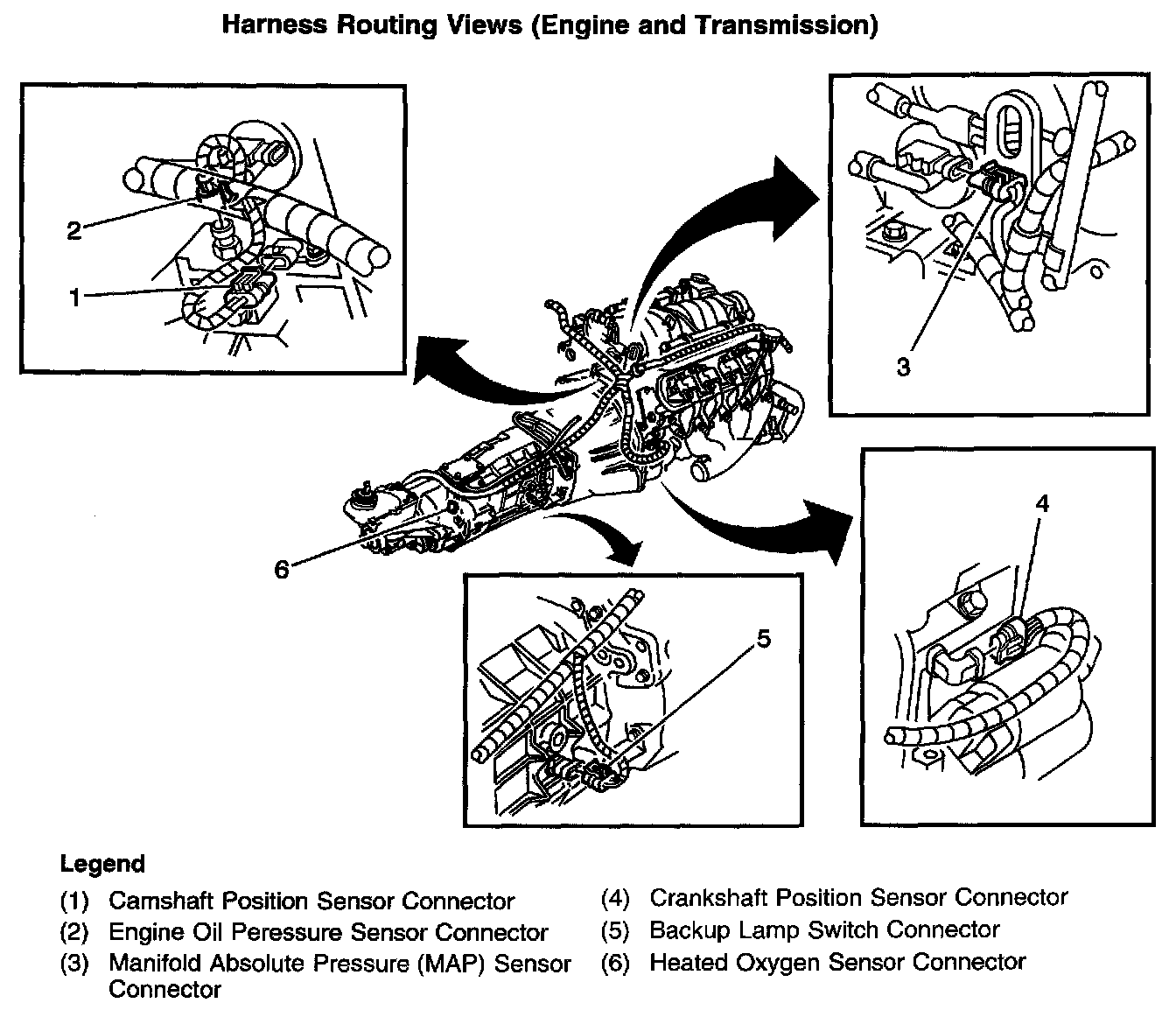

Harness Routing Views (Engine And Transmission):

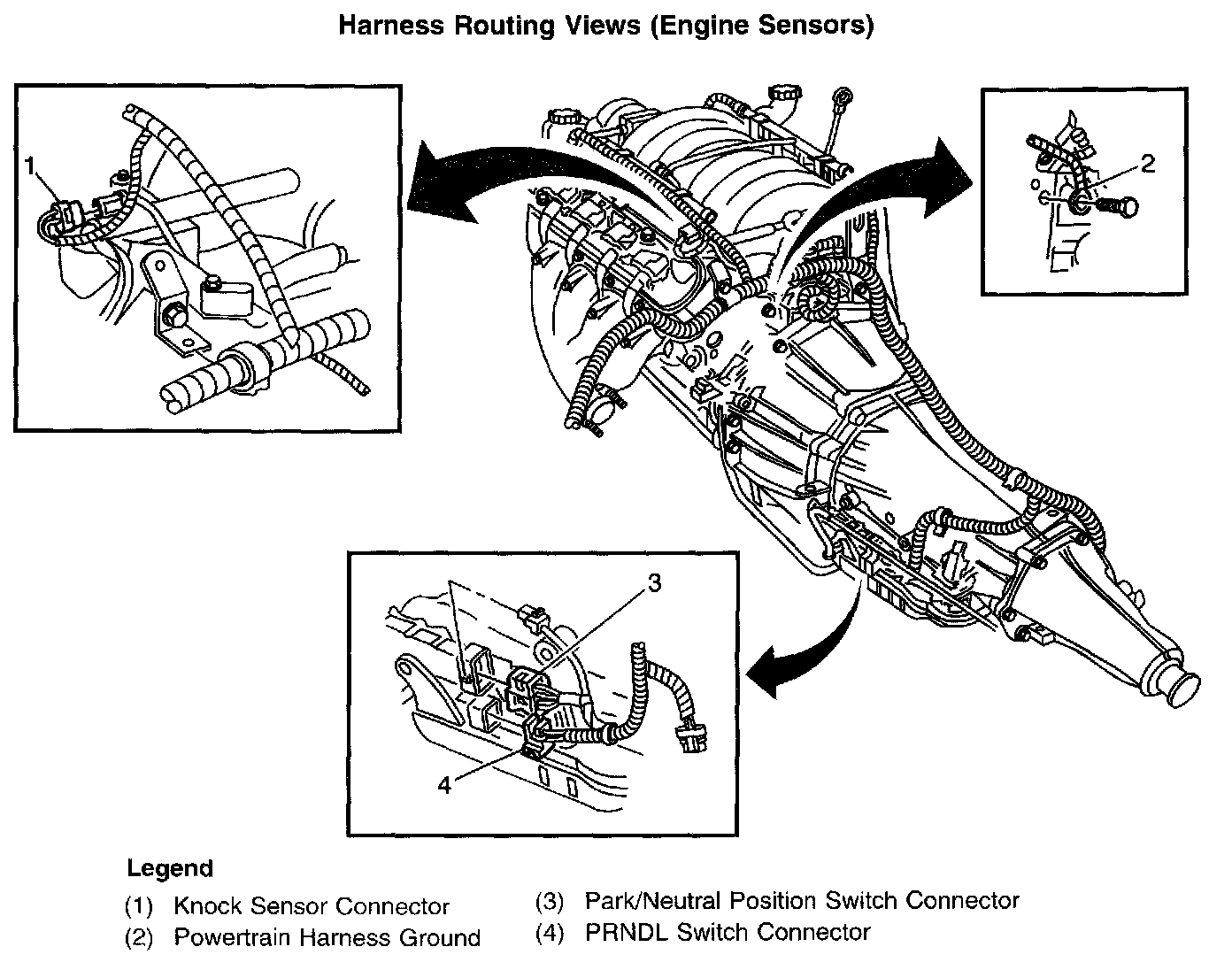

Harness Routing Views (Engine Sensors):
