Pontiac
>>
2004
>>
GTO V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>

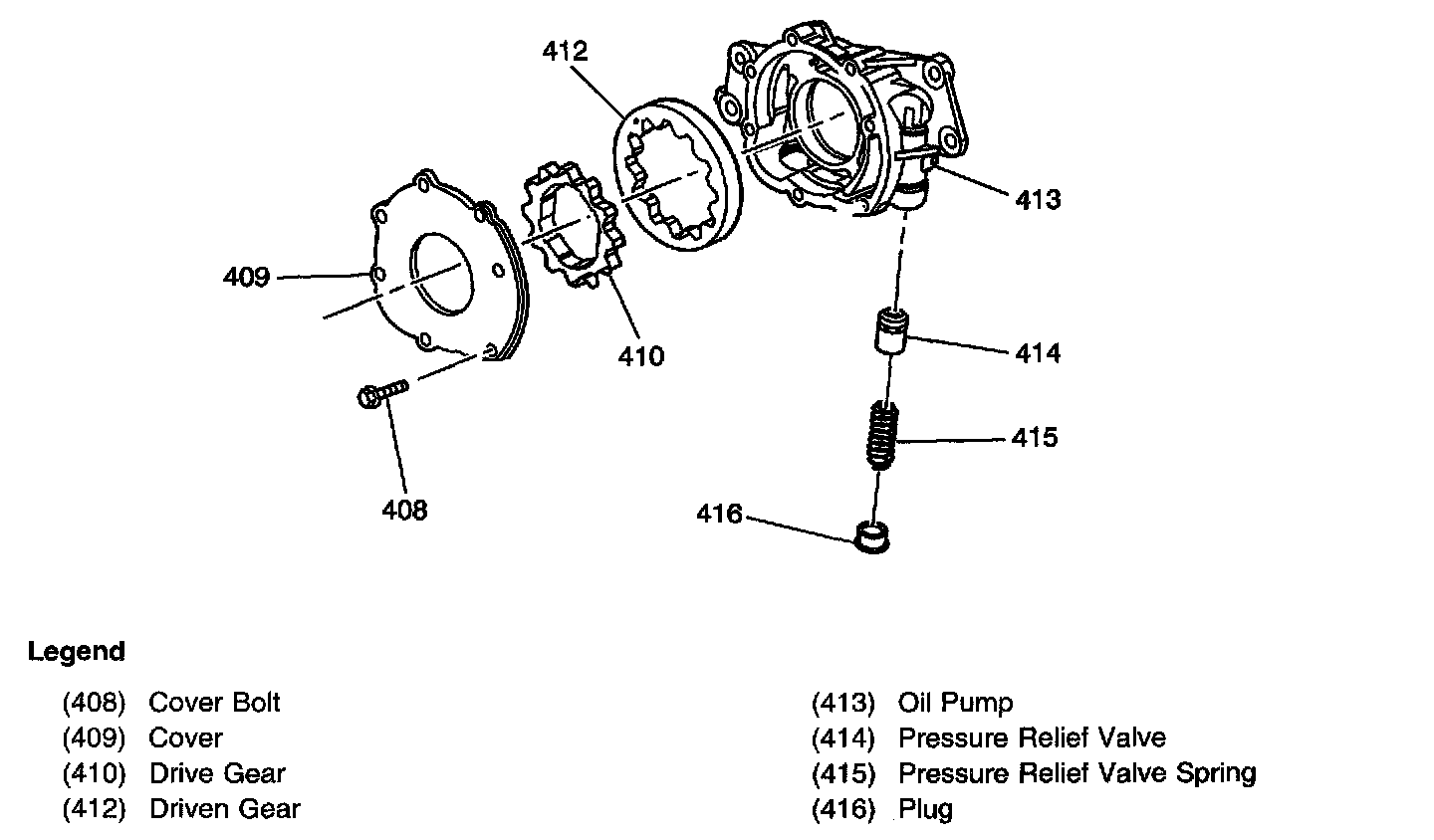

Oil Pump Assembly
Oil Pump Assembly
Oil Pump Assembly
