Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head and Components

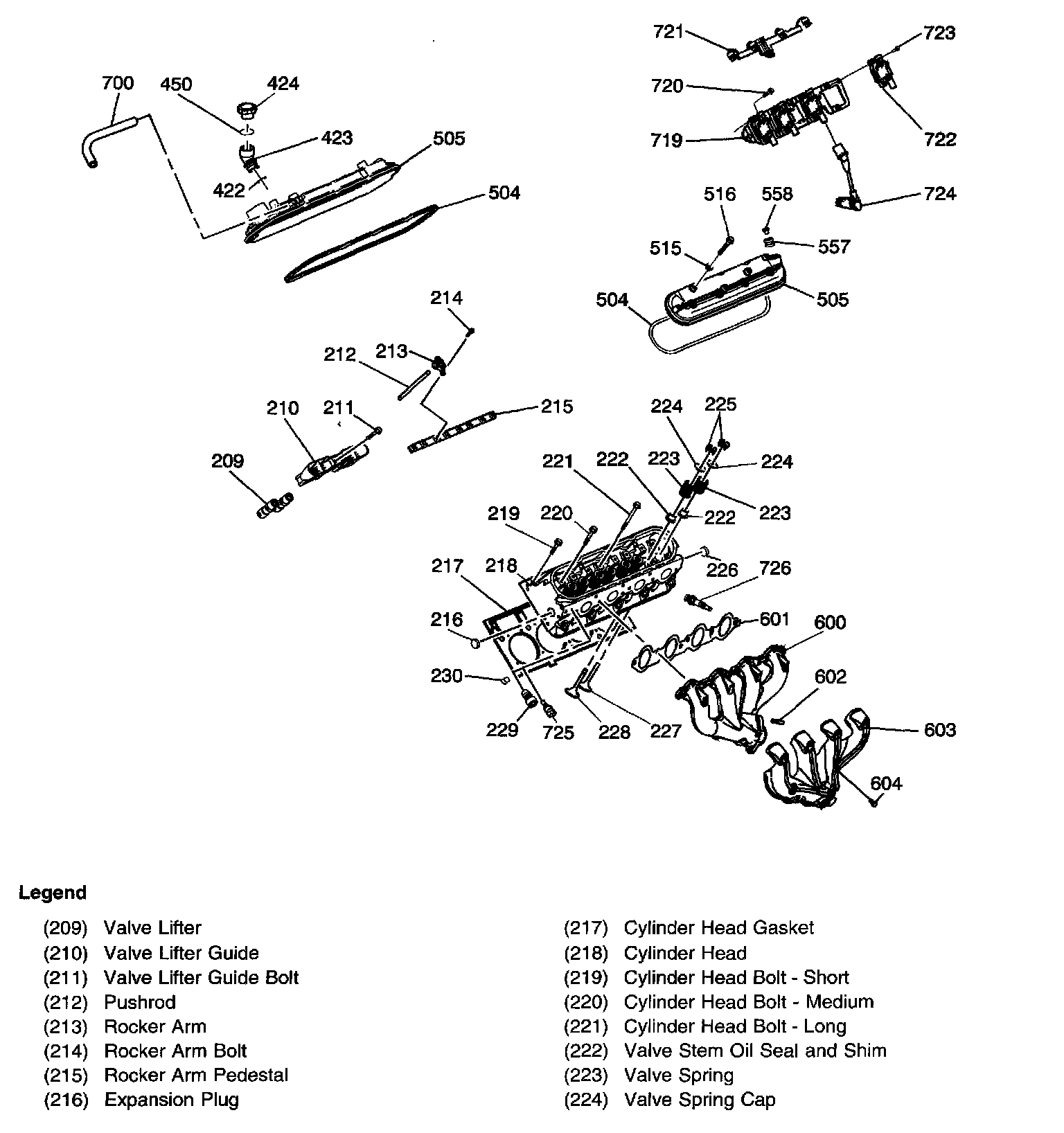

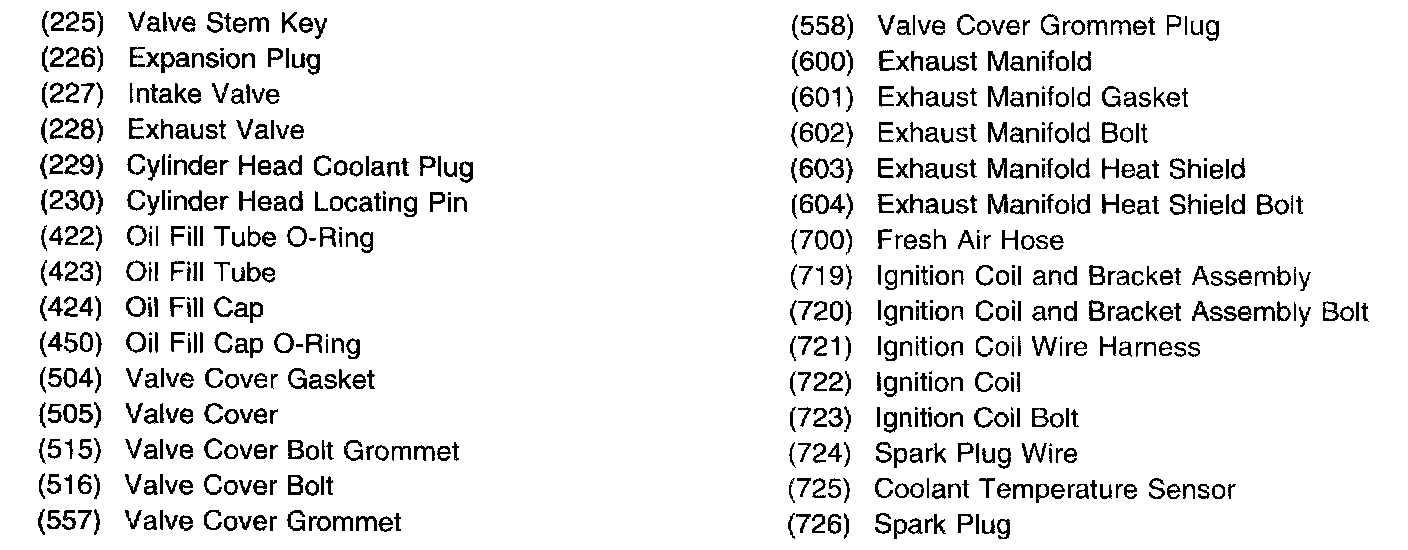

Cylinder Head and Components

Cylinder Head /Upper Engine
