Home >> Pontiac >> 2004 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Intake Manifold, Cylinder Head, and Components

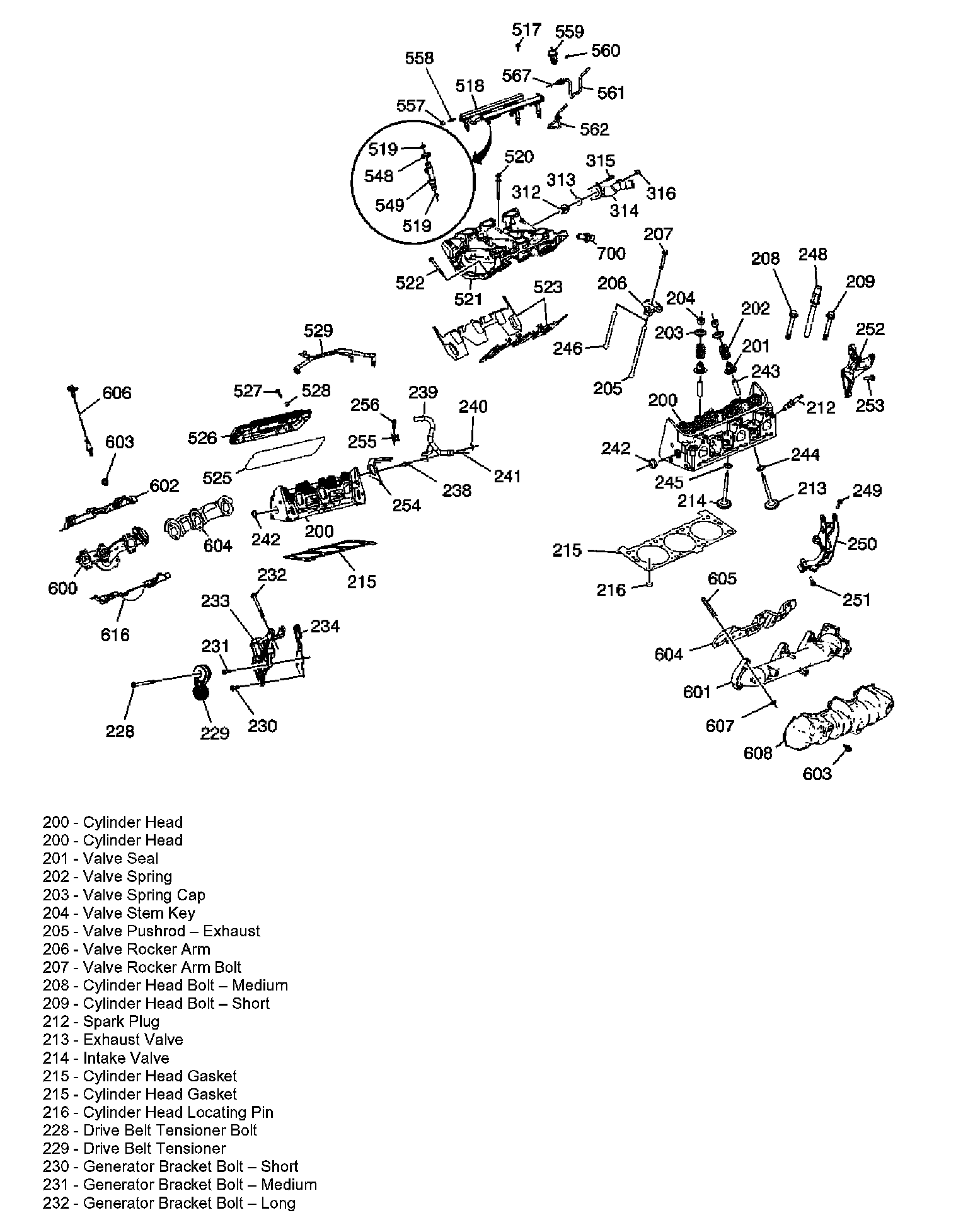

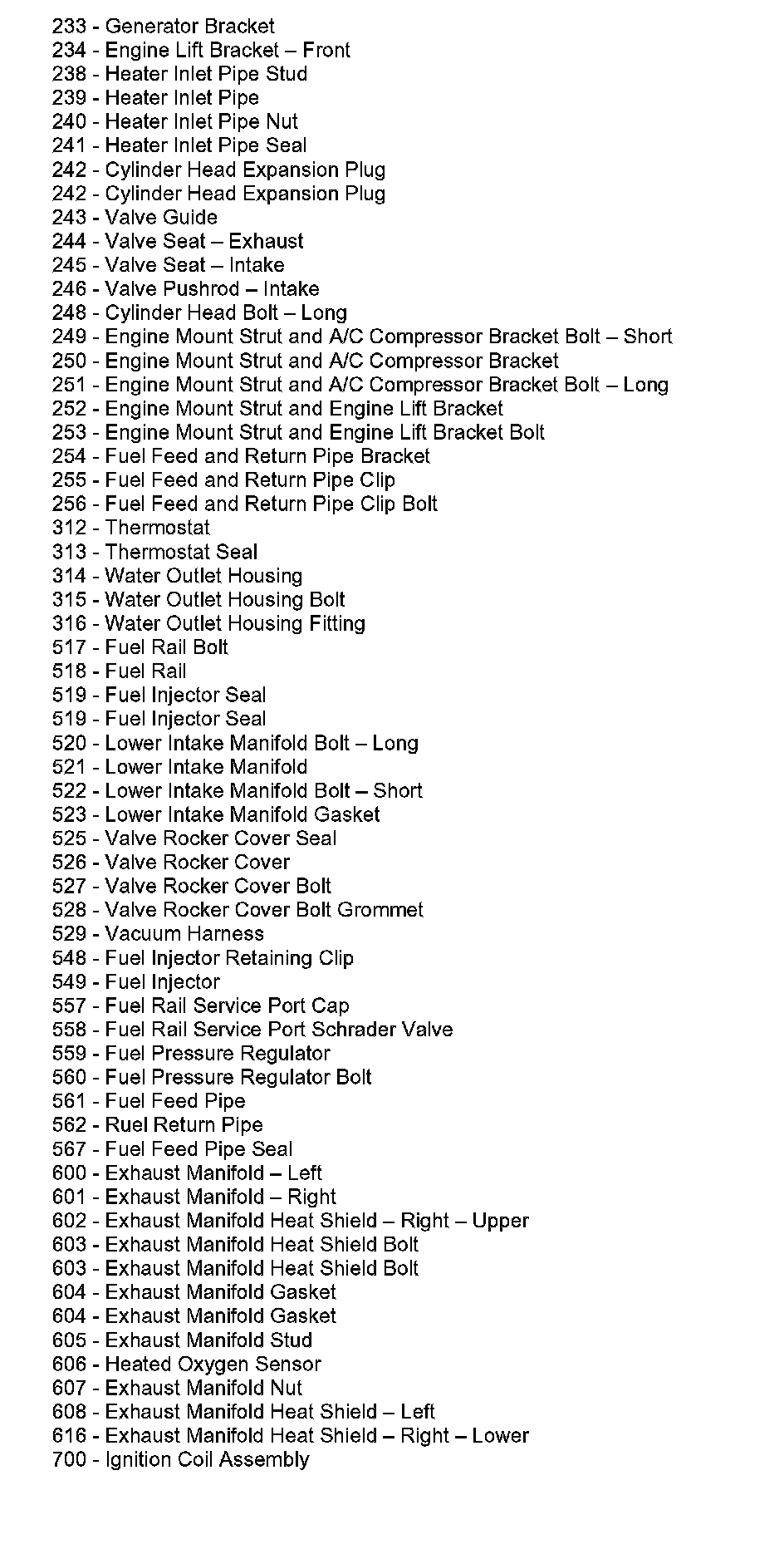

Lower Intake Manifold, Cylinder Head, and Components
