Aztek AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
Brake Lamp

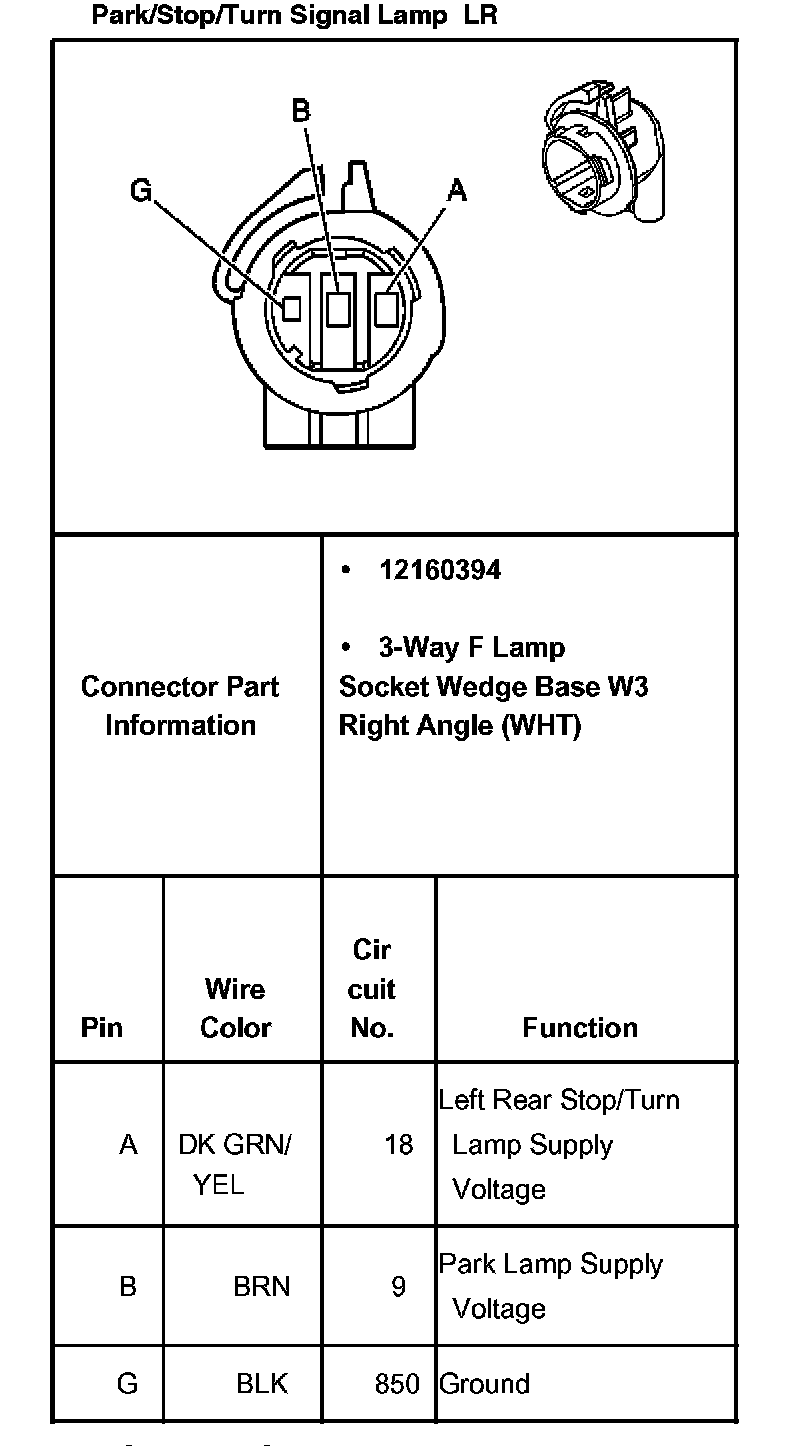

Park/Stop/Turn Signal Lamp - LR:

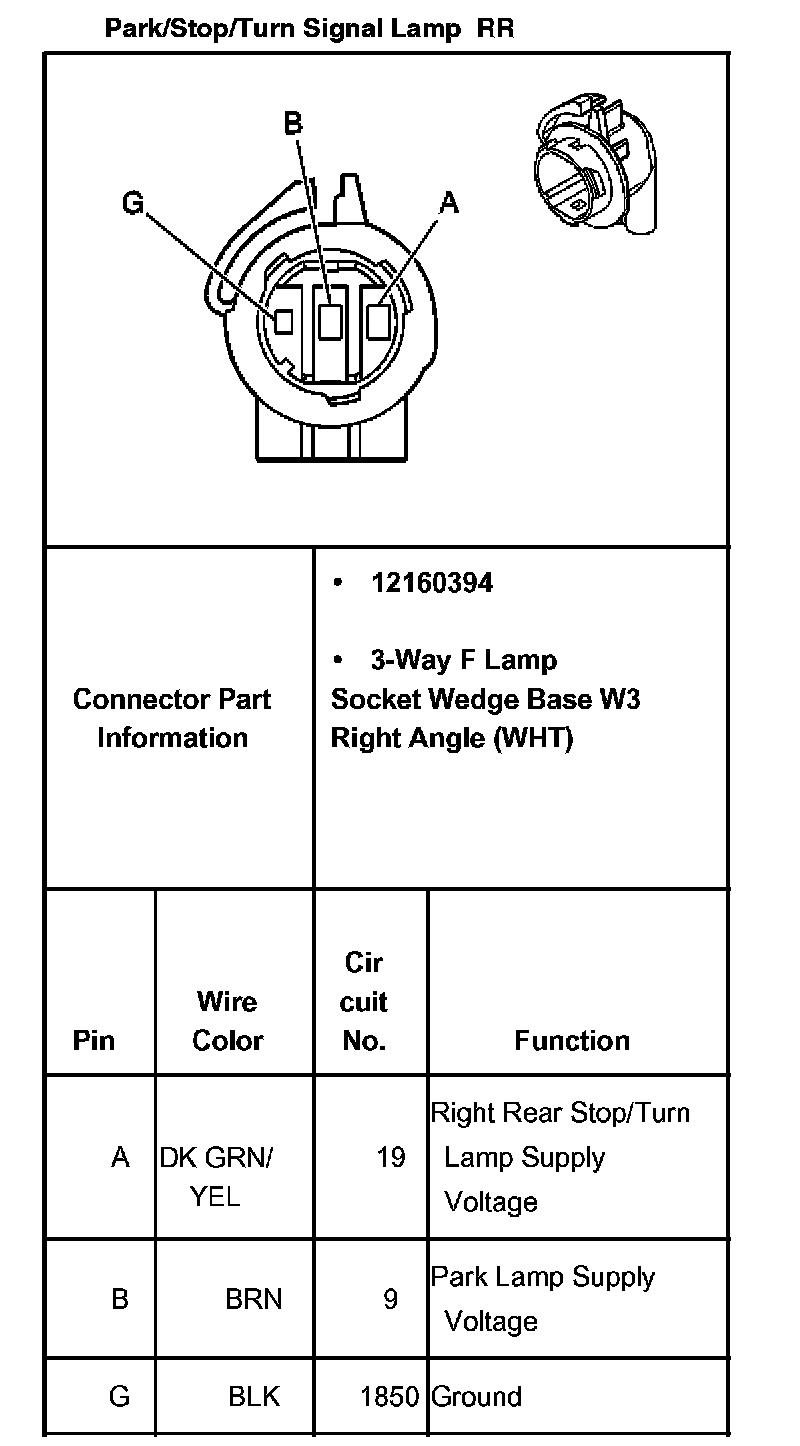

Park/Stop/Turn Signal Lamp - RR:

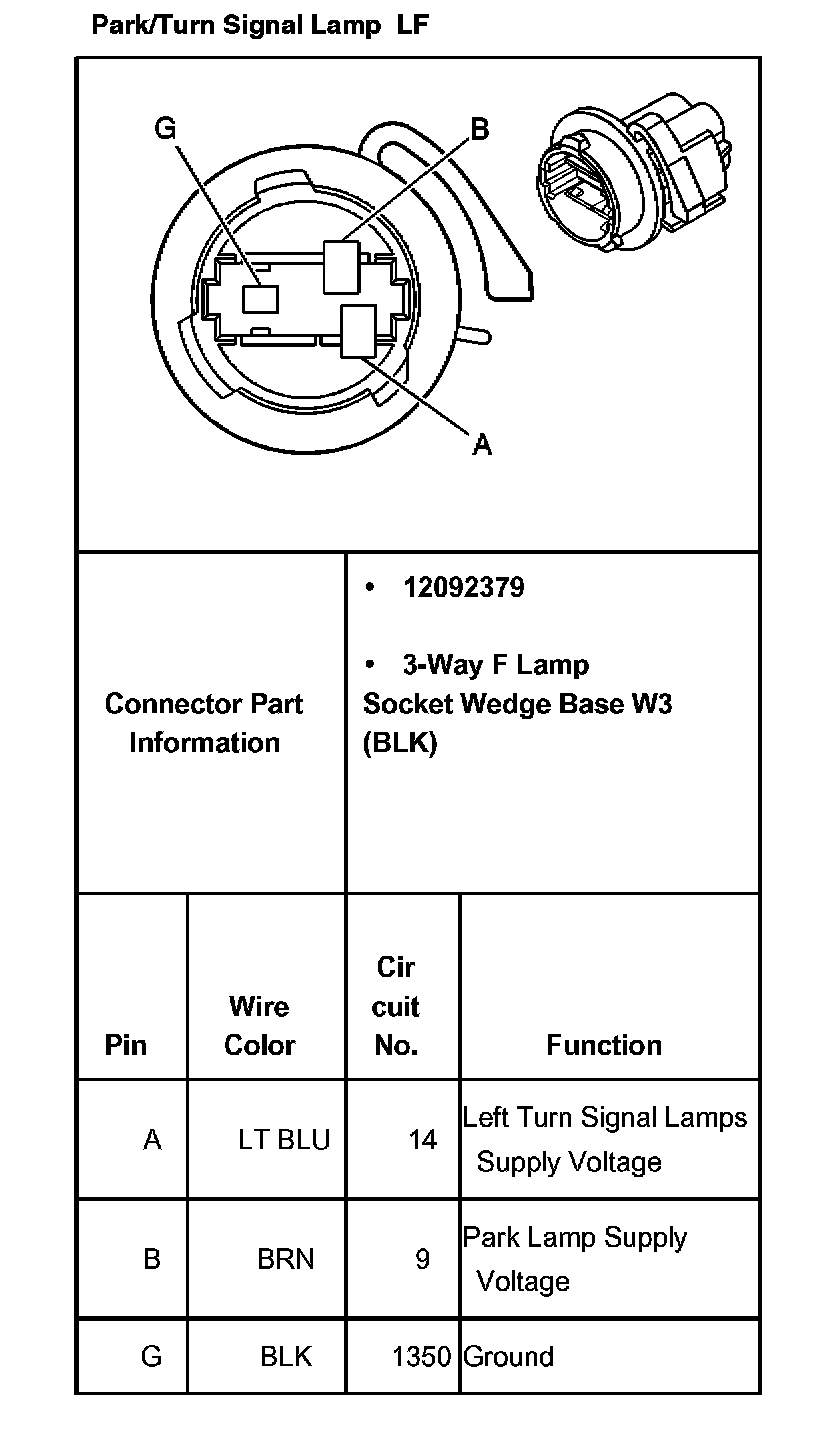

Park/Turn Signal Lamp - LF:

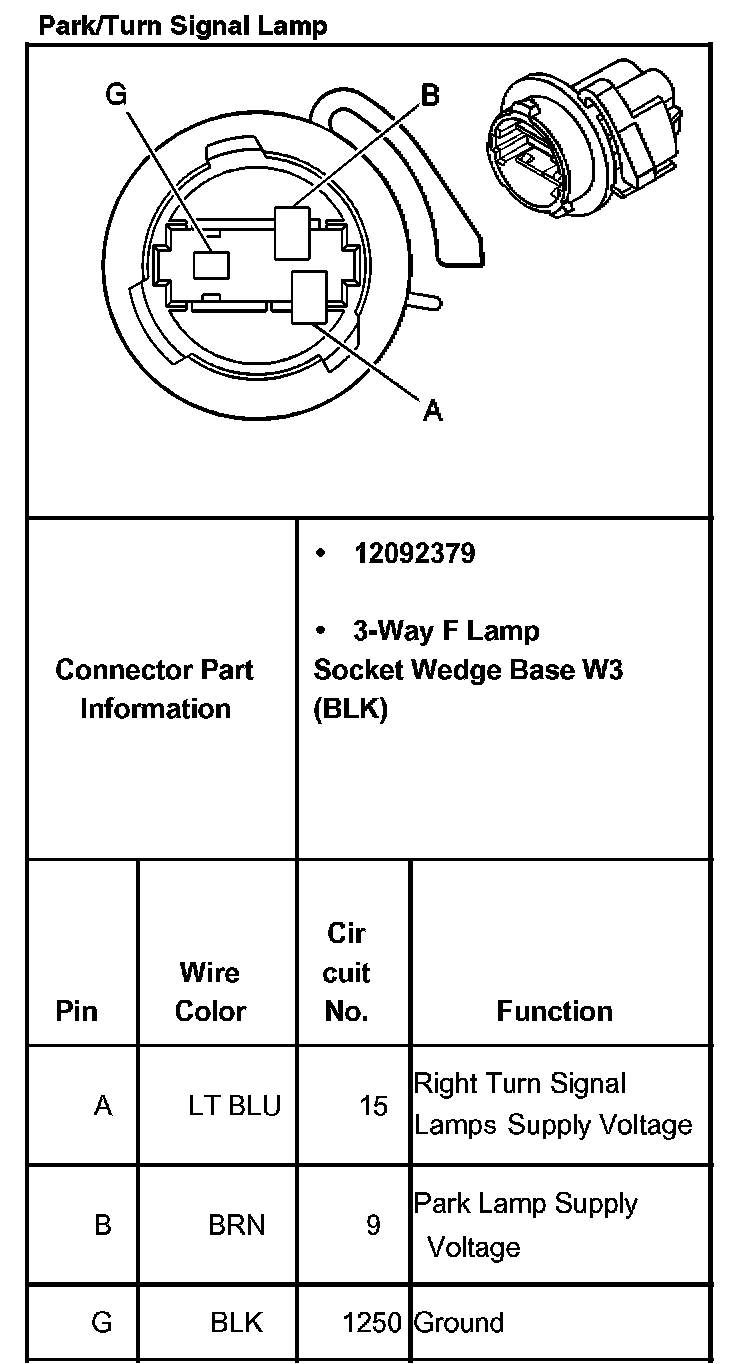

Park/Turn Signal Lamp - RF:
