Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Shift Interlock Control Module >> Locations

Shift Interlock Control Module: Locations

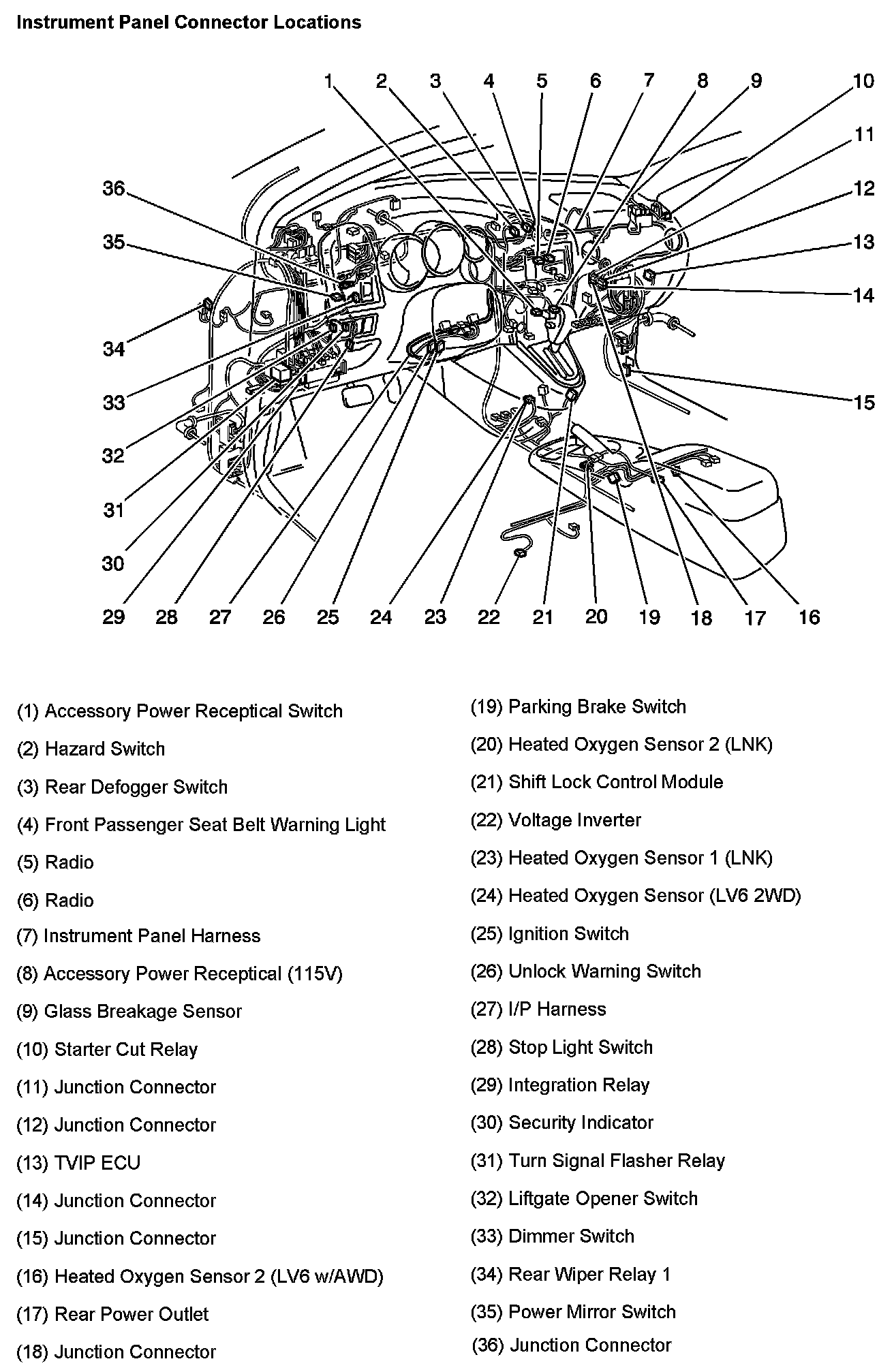

Instrument Panel Connector Locations:
