Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Powertrain Management >> Locations >> PCM Controlled Devices

PCM Controlled Devices

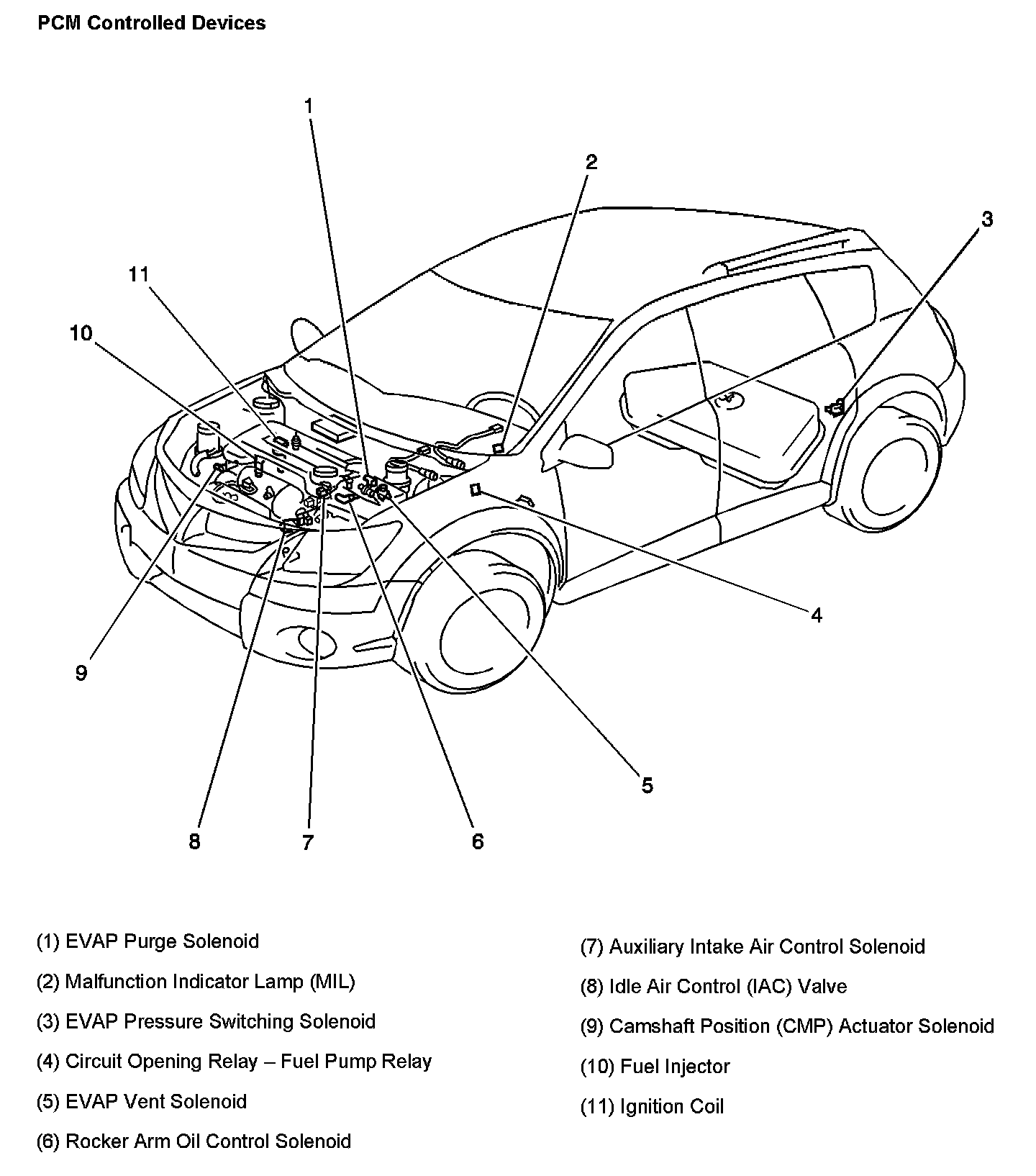

PCM Controlled Devices:



Top View Of Fuse Block-Instrument Panel (I/P):
