Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Chain and Housing Components

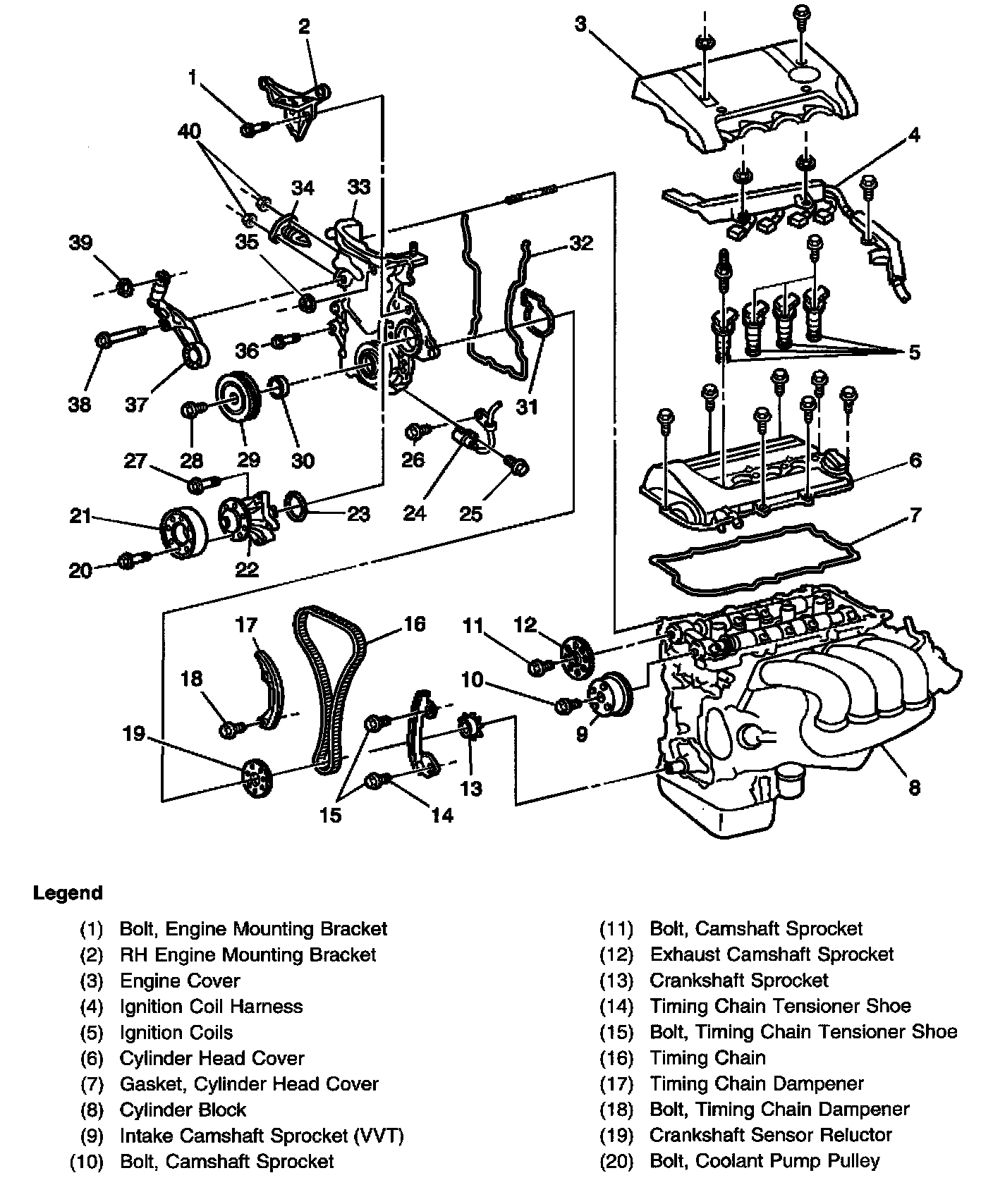

Timing Chain and Housing Components

Part 1 Of 2:



Part 2 Of 2:
