Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Rear Axle Mounting Components

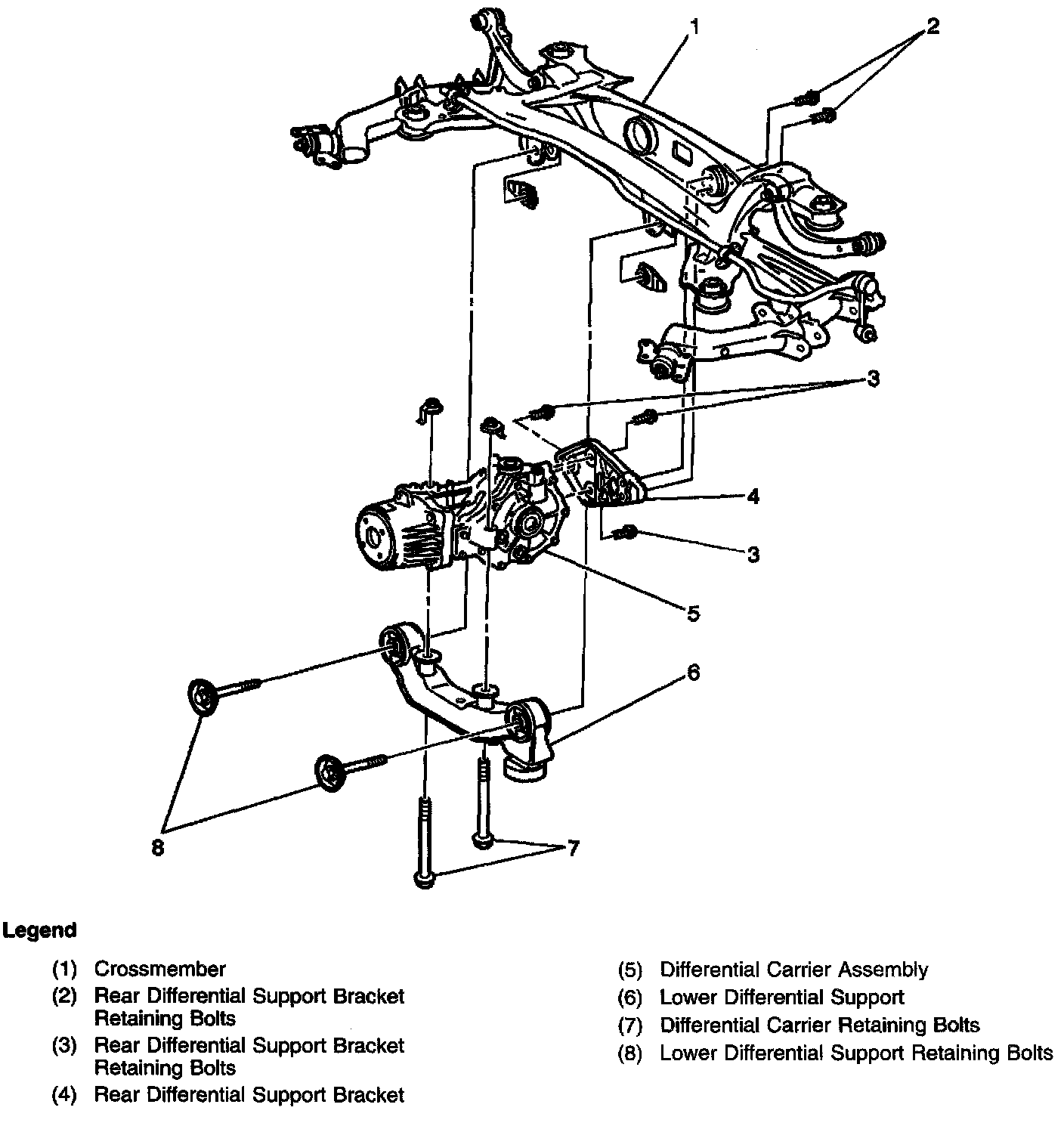

Rear Axle Mounting Components

Rear Axle Mounting Components:
