Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Rear Axle Internal Components

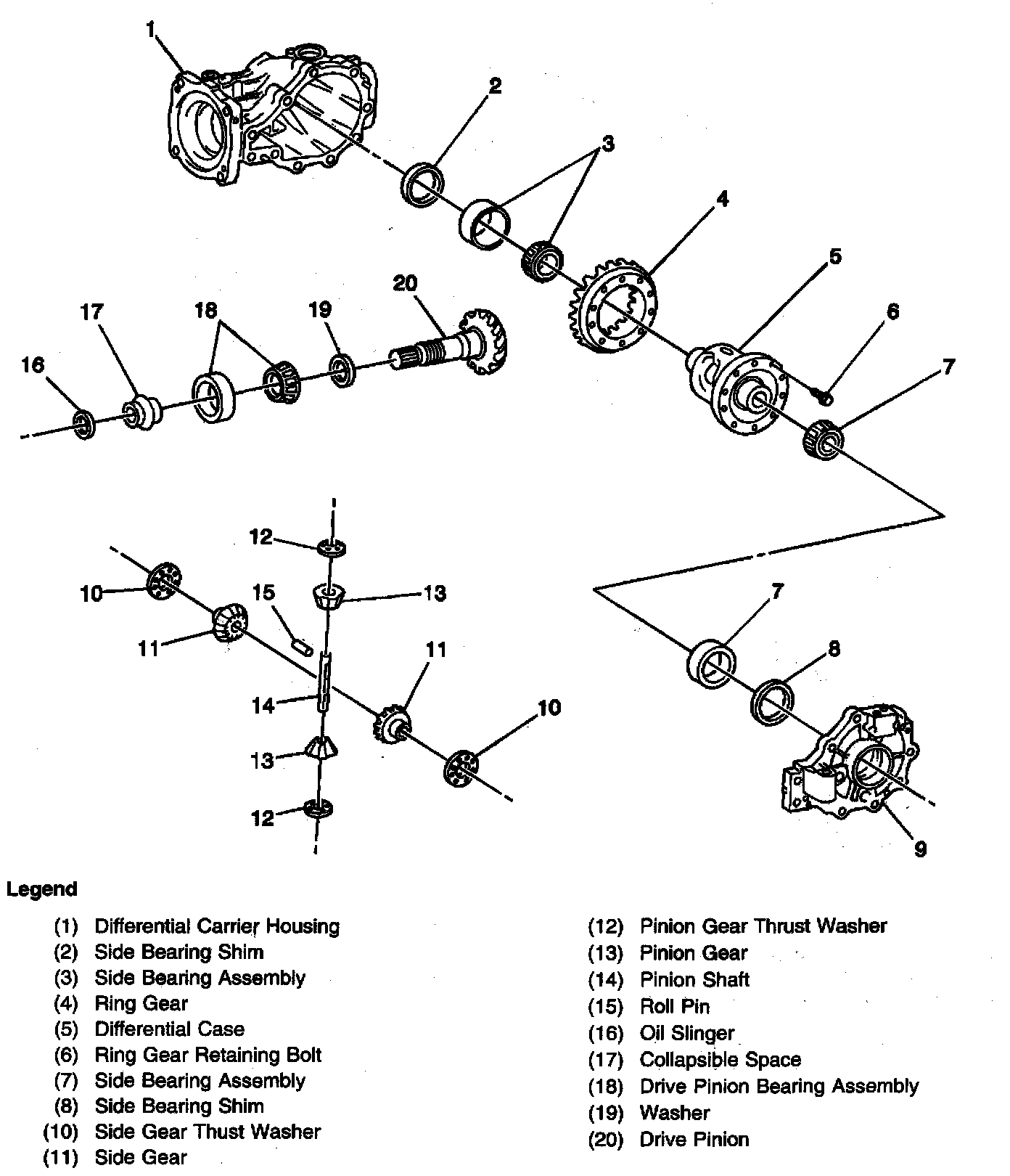

Rear Axle Internal Components

Rear Axle Internal Components:
