Pontiac
>>
2003
>>
Vibe L4-1.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Axle Disassembled View
Rear Axle Disassembled View

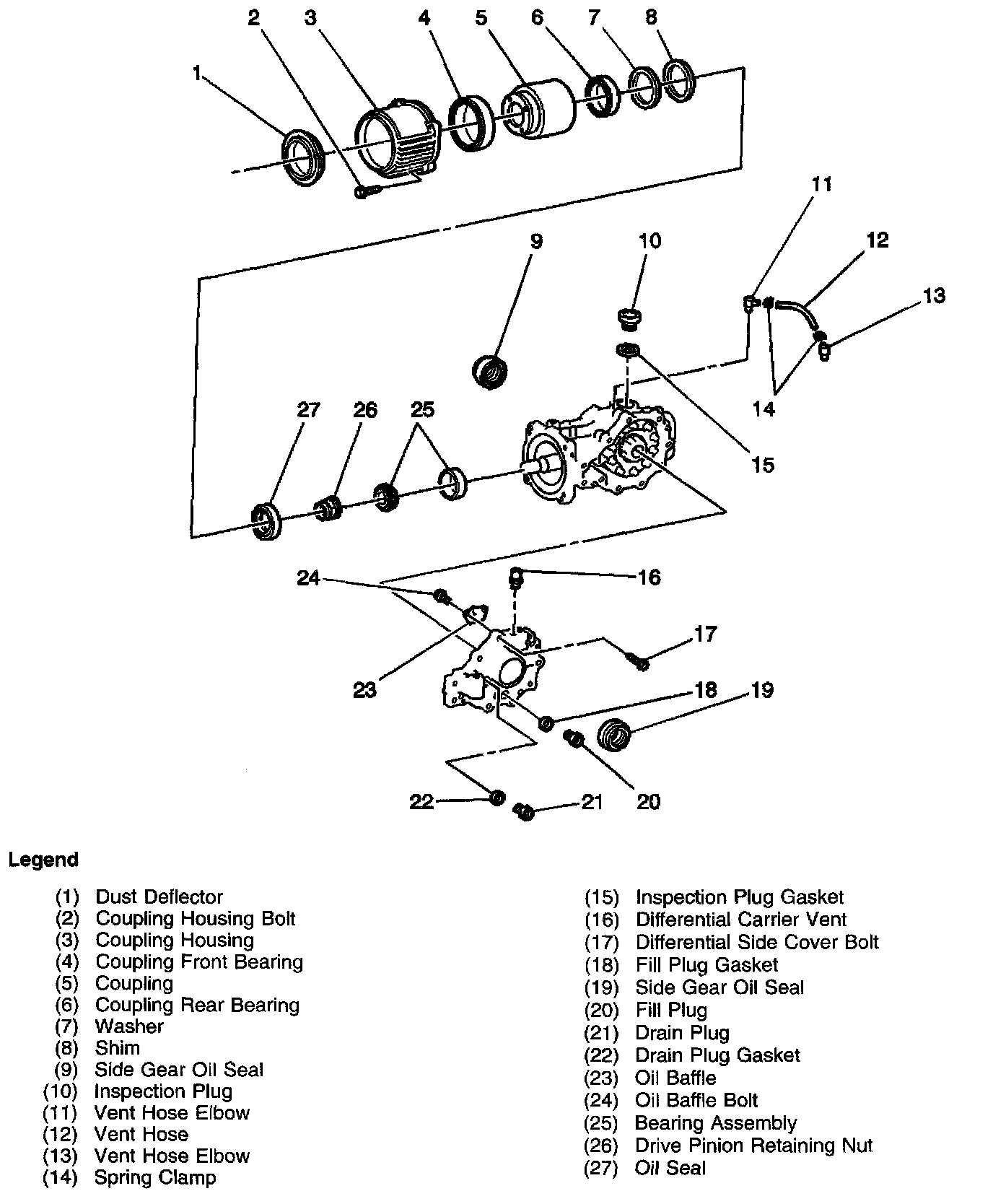

Rear Axle Disassembled View:
