Junction Block-Instrument Panel Right C1

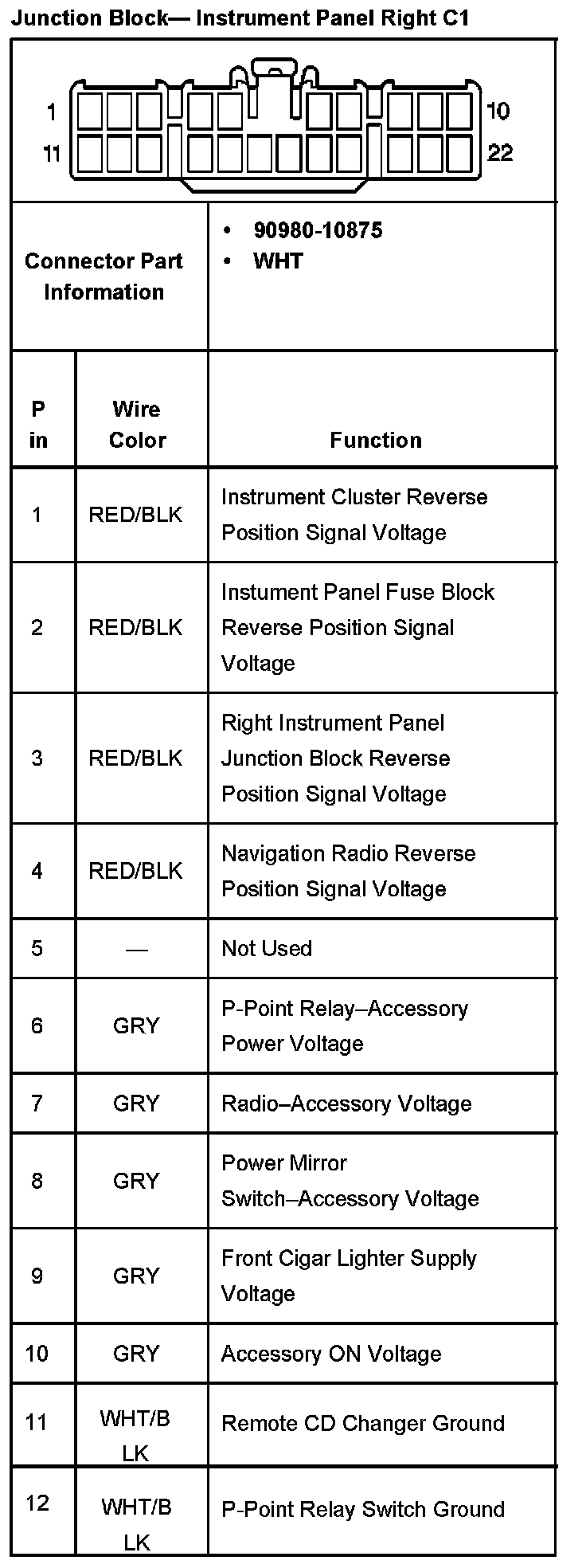

Junction Block-Instrument Panel Right C1 Part 1:



Junction Block-Instrument Panel Right C1 Part 2:
