Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

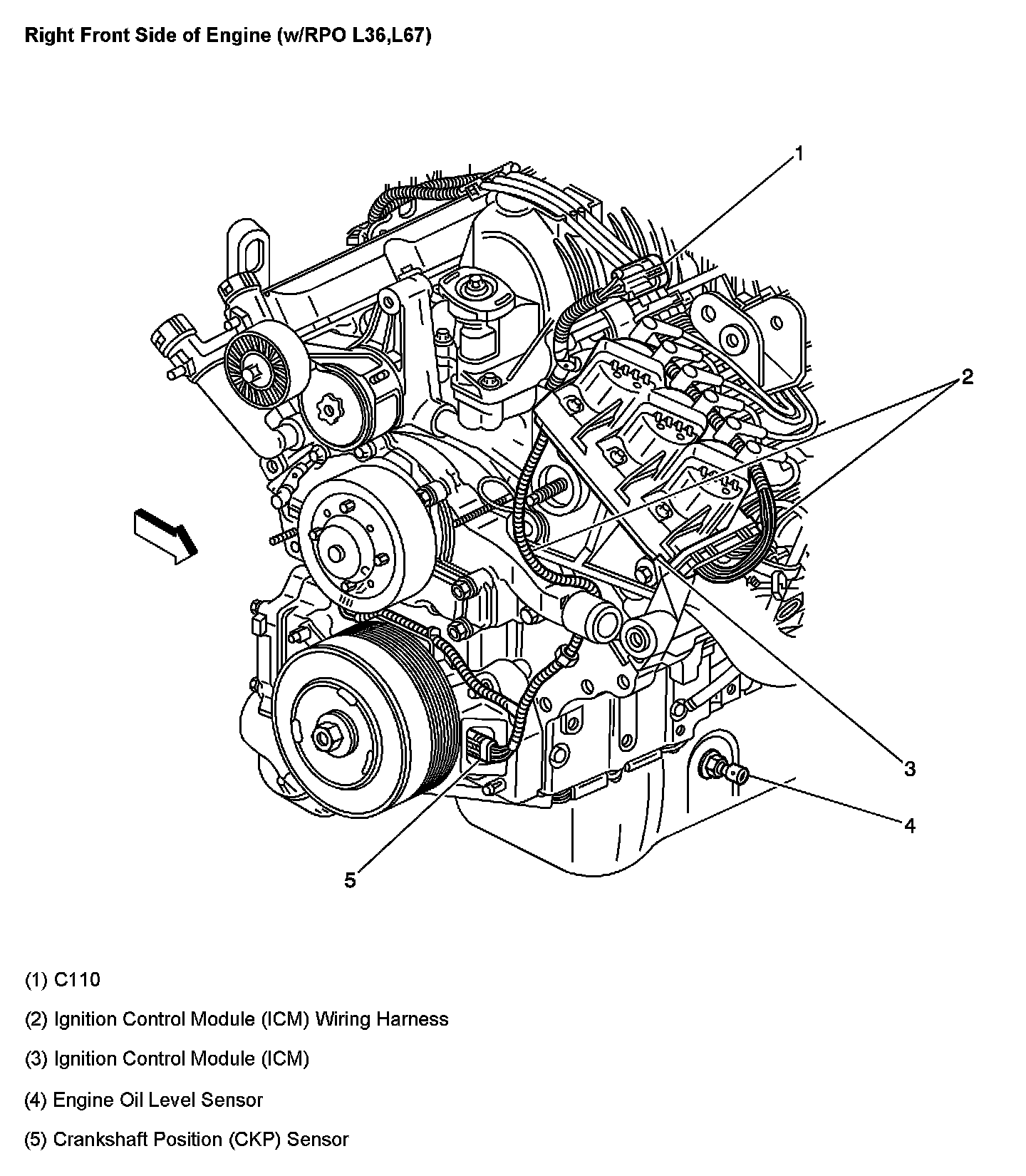

Right Front Side Of Engine:

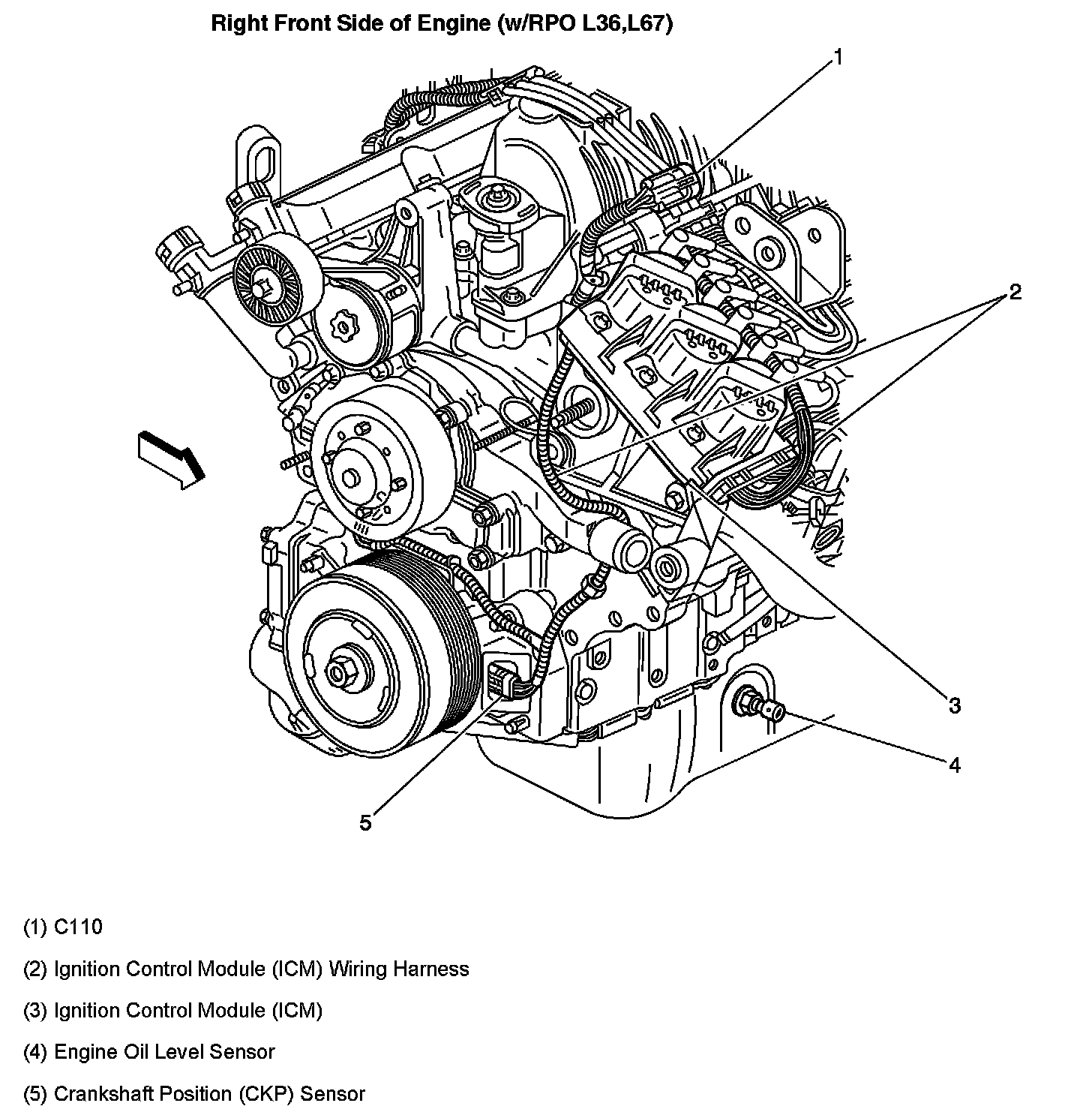

Right Front Side Of Engine:
