Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Components

Internal Components

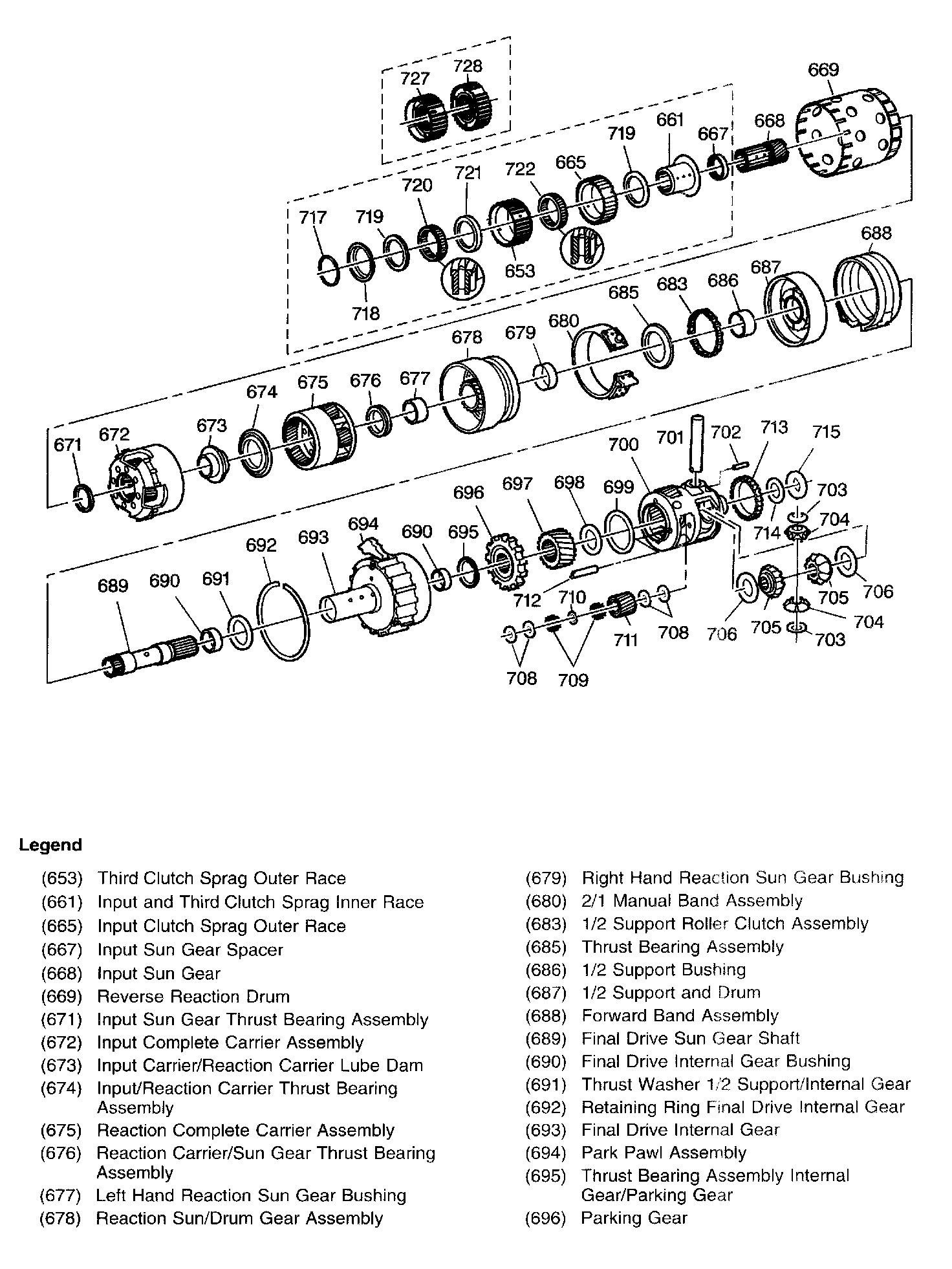

Internal Components Part 1 of 4:

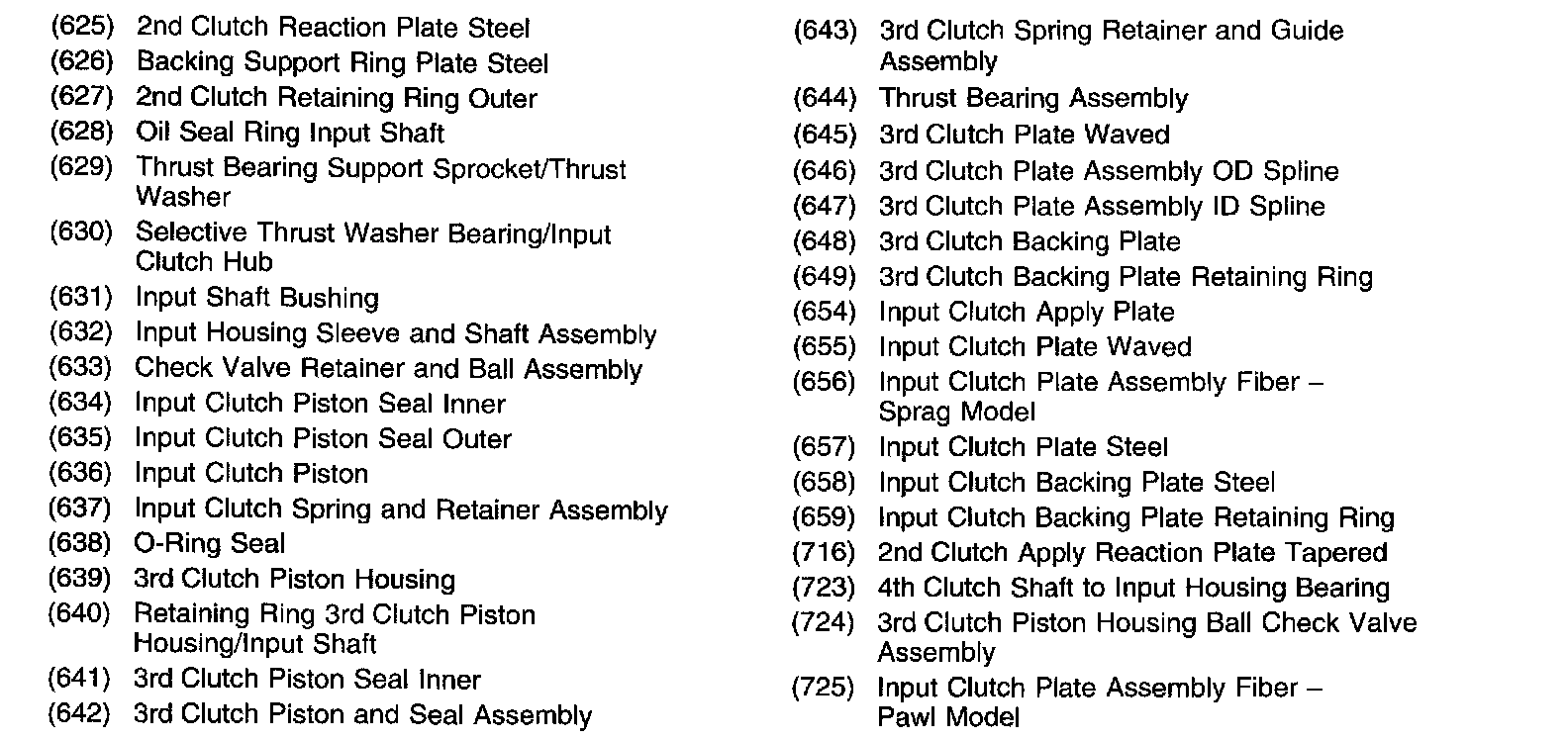

Internal Components Part 2 of 4:

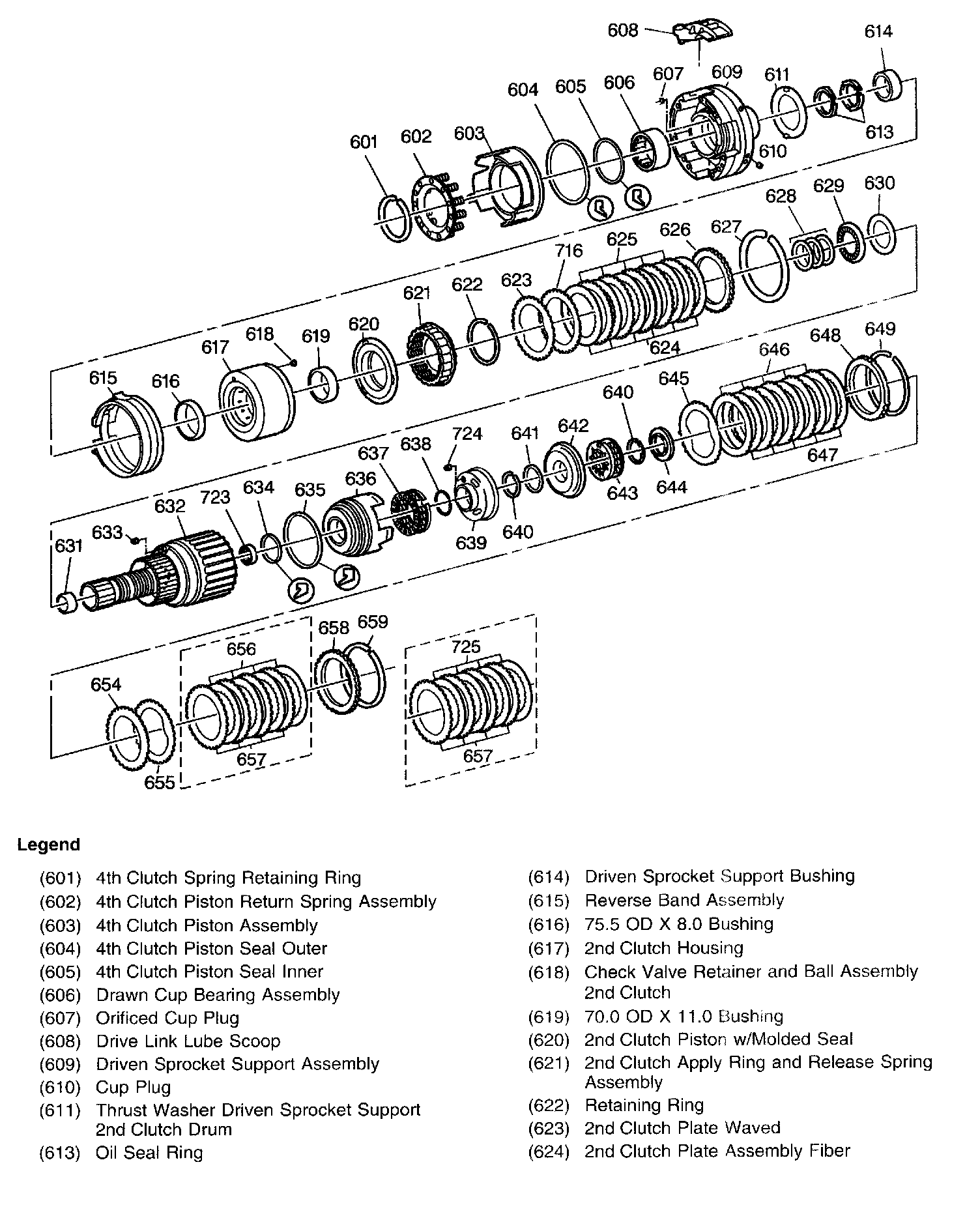

Internal Components Part 3 of 4:

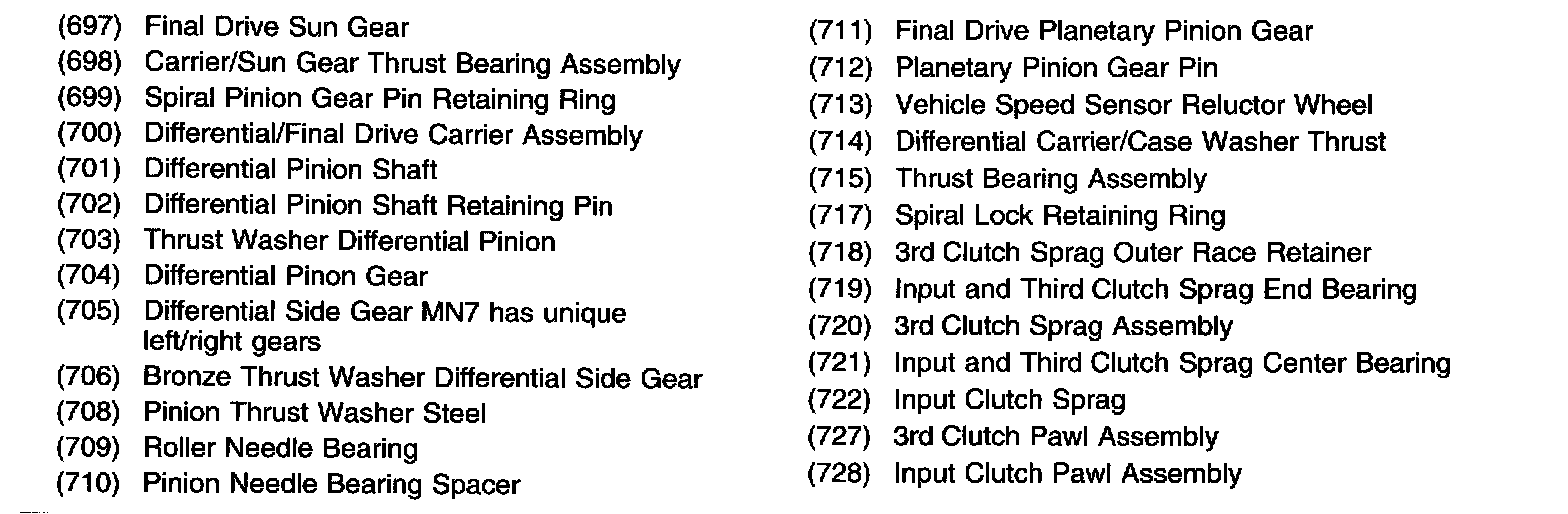

Internal Components Part 4 of 4:
