Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Control Valve Body Assembly

Control Valve Body Assembly

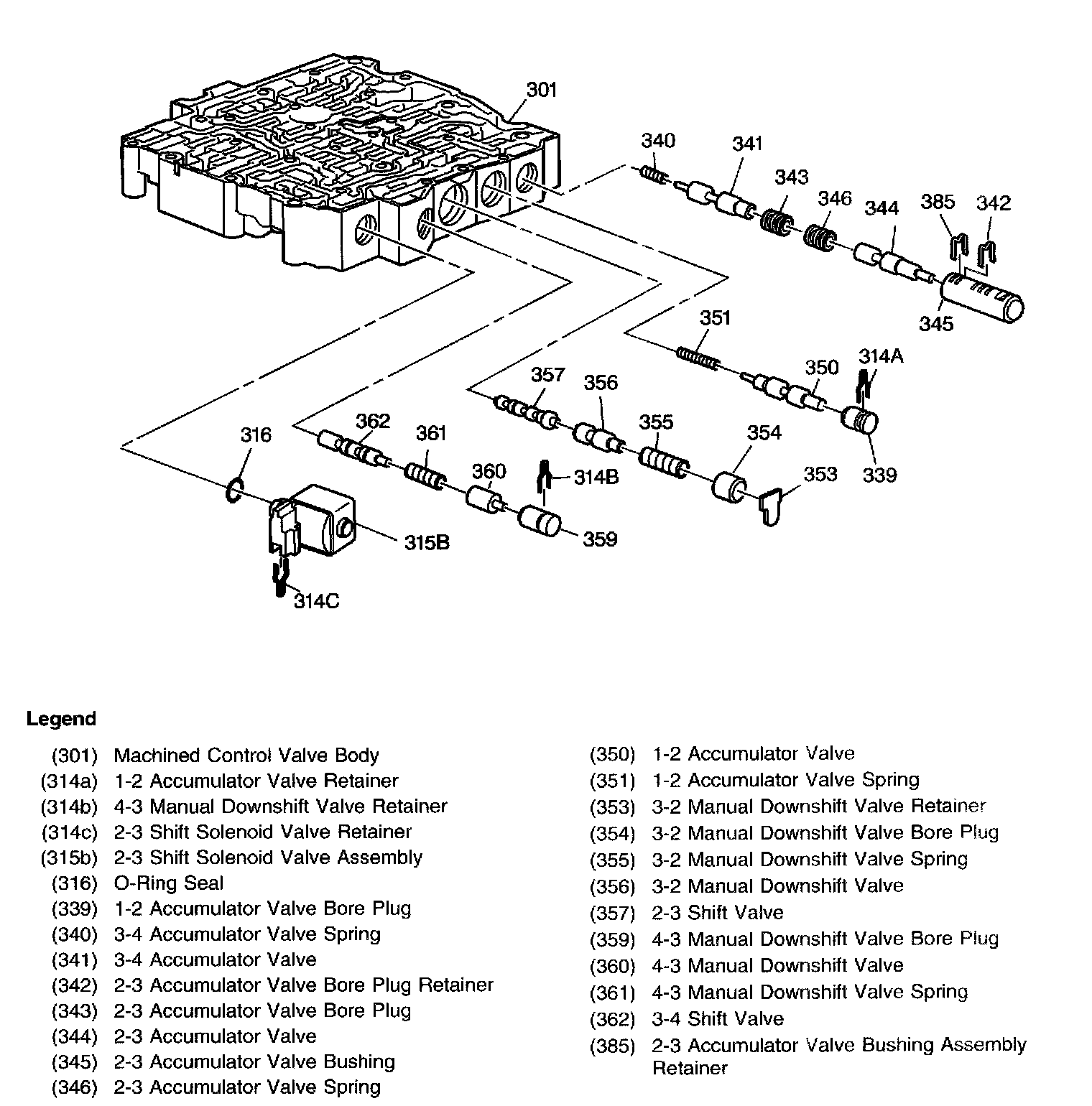

Control Valve Body Assembly Part 1 of 2:

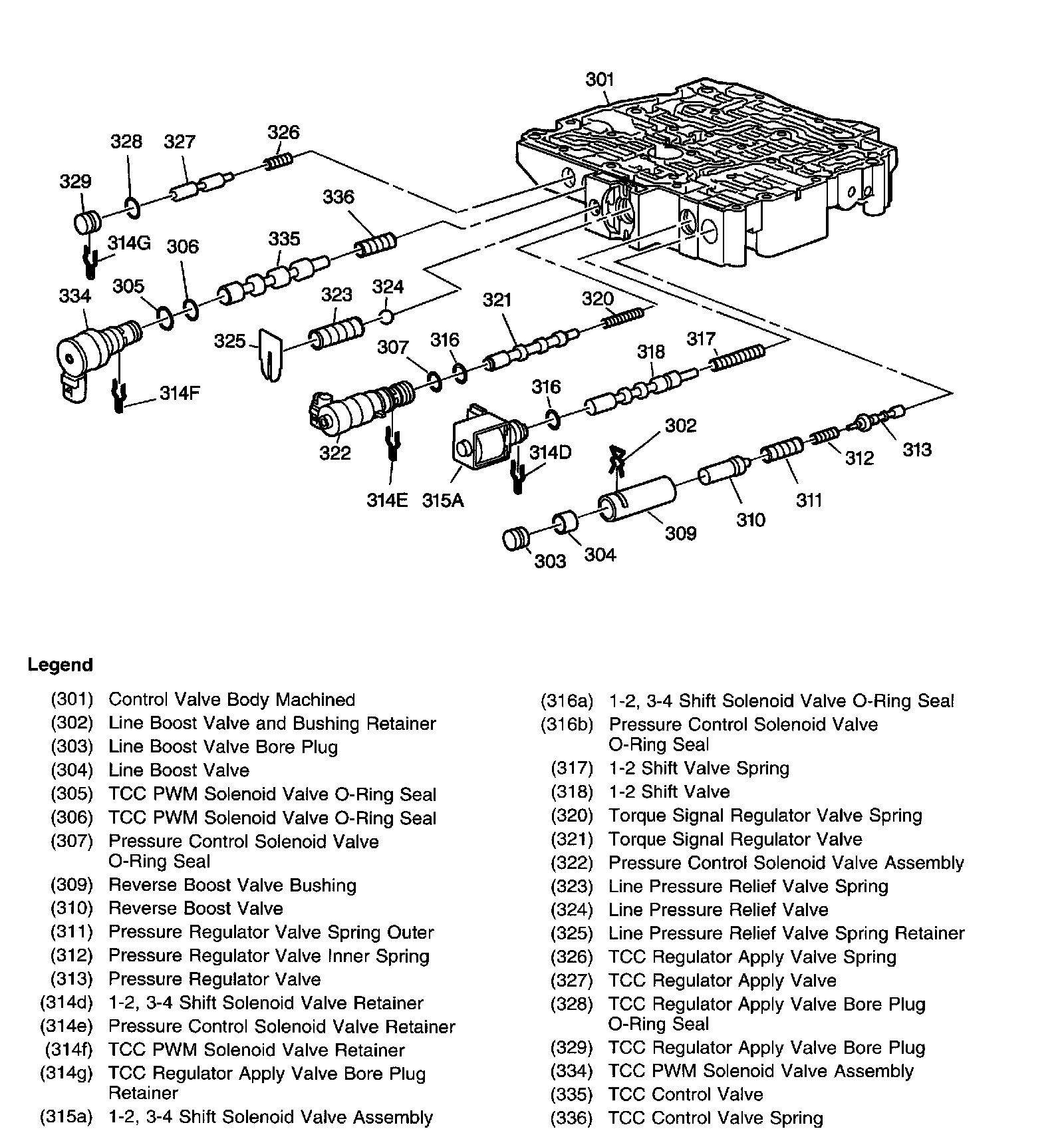

Control Valve Body Assembly Part 2 of 2:
