Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Case Cover Assembly

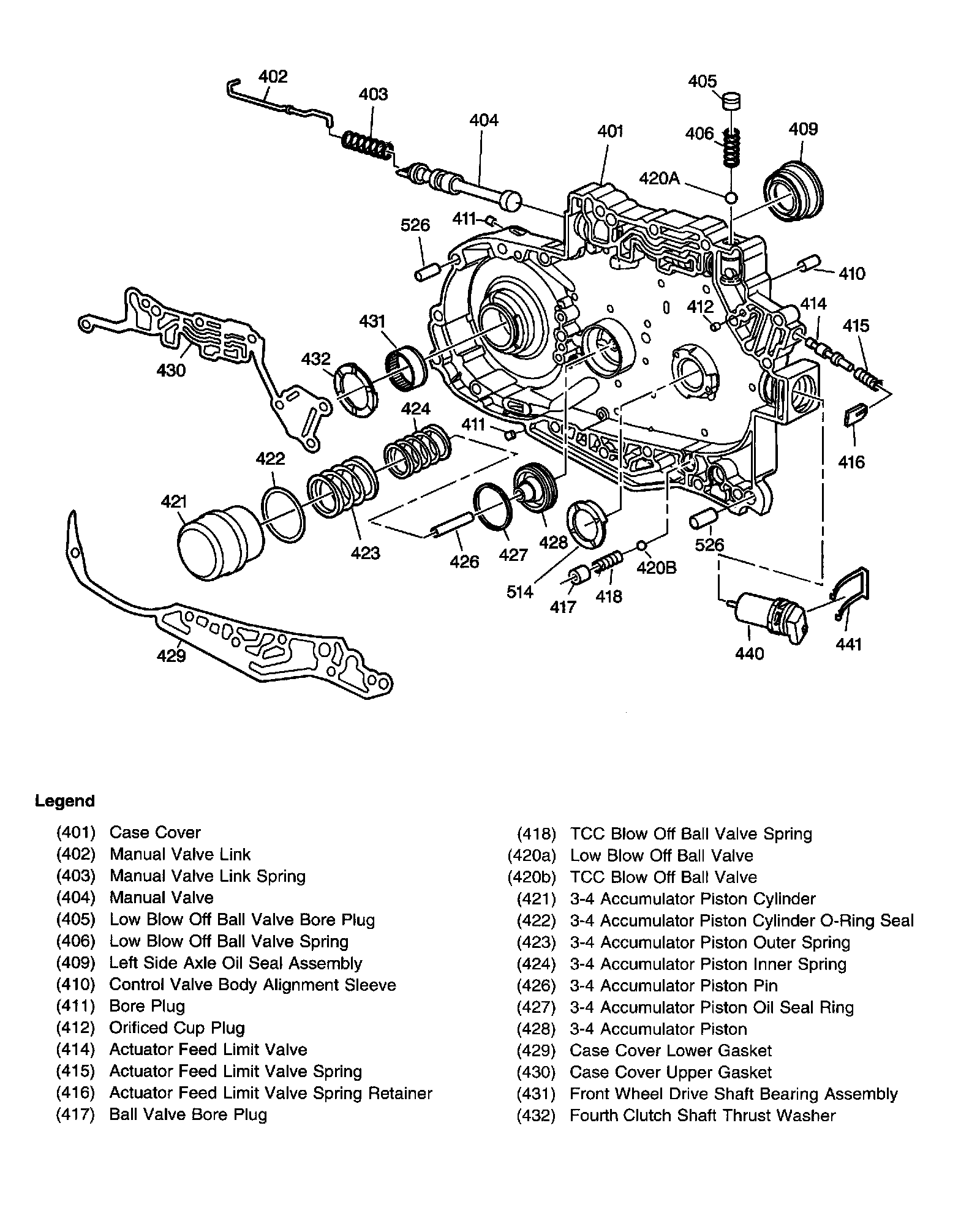

Case Cover Assembly

Case Cover Assembly Part 1 Of 2:



Case Cover Assembly Part 2 Of 2:
