Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

Window Switch - Driver, C1, 4-Door:




Window Switch - Driver, C2, 4-Door Part 1:




Window Switch - Driver, C2, 4-Door Part 2:

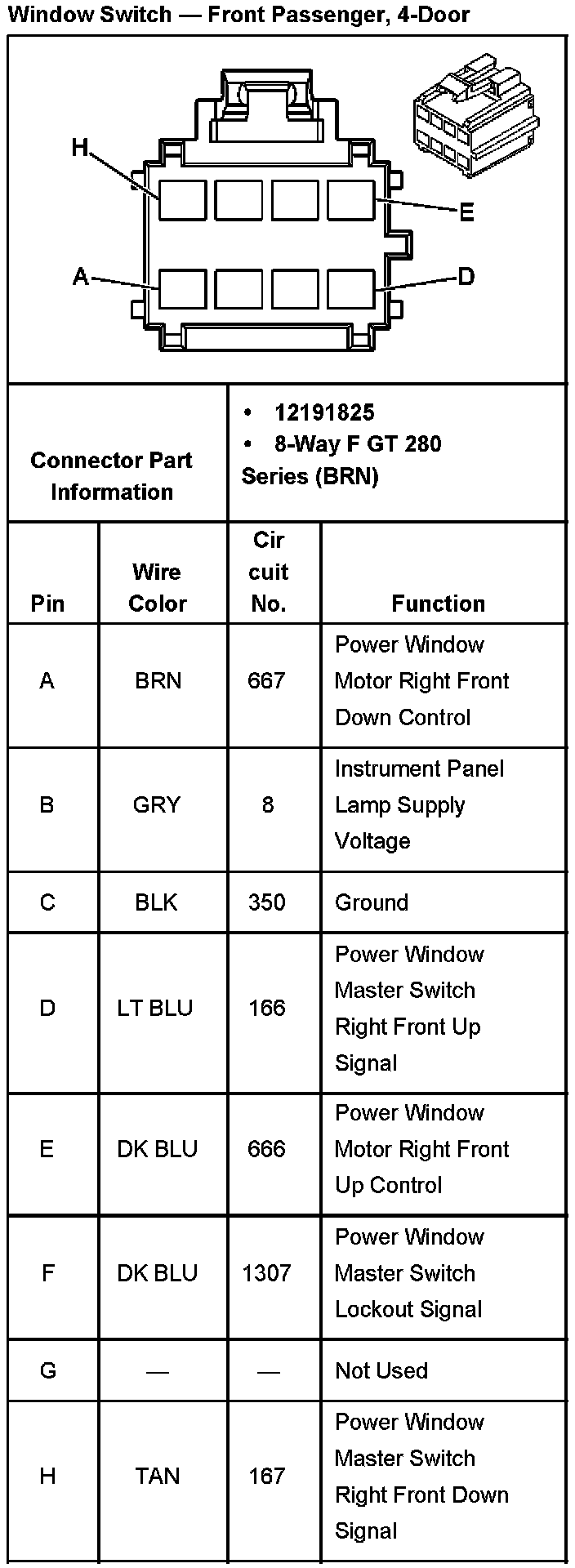

Window Switch - Front Passenger, 4-door:




Window Switch - LR:




Window Switch - RR:
