Daytime Running Lamp Control Unit

Daytime Running Lamps (DRL) Control Module, C1:

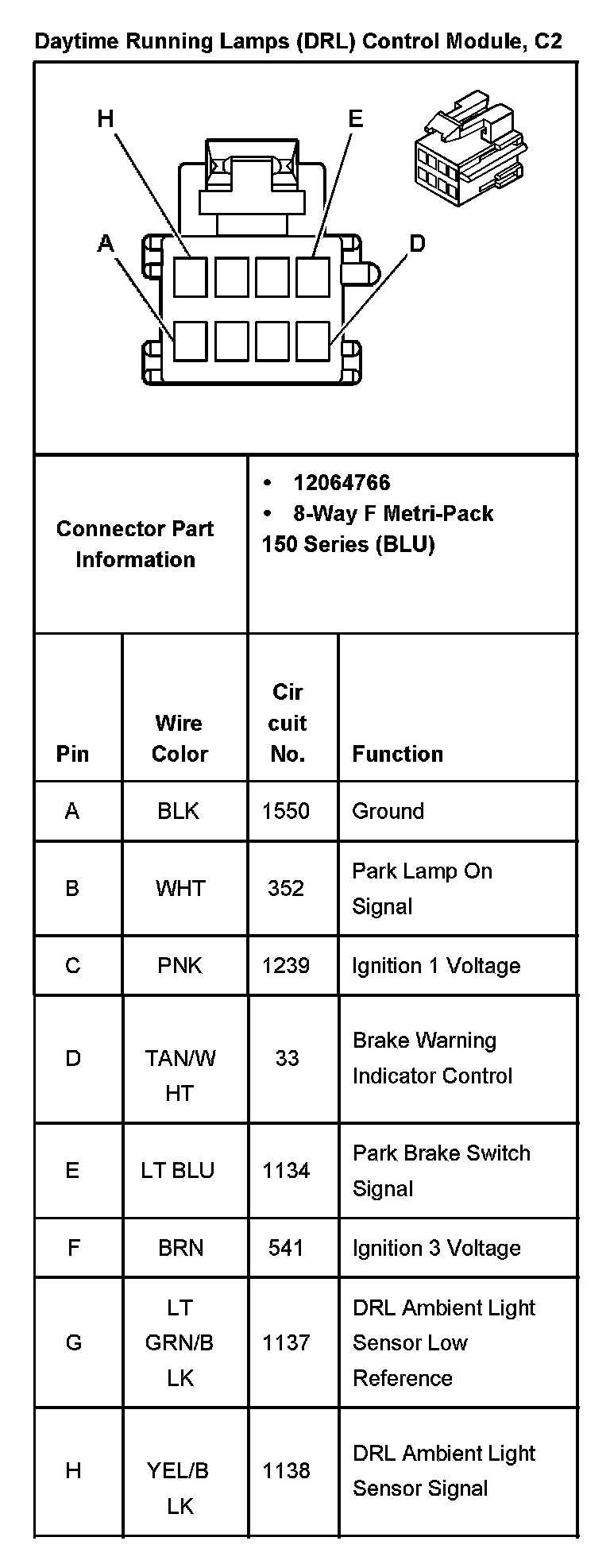

Daytime Running Lamps (DRL) Control Module, C2:
