Powertrain Control Module (PCM) Connector C2

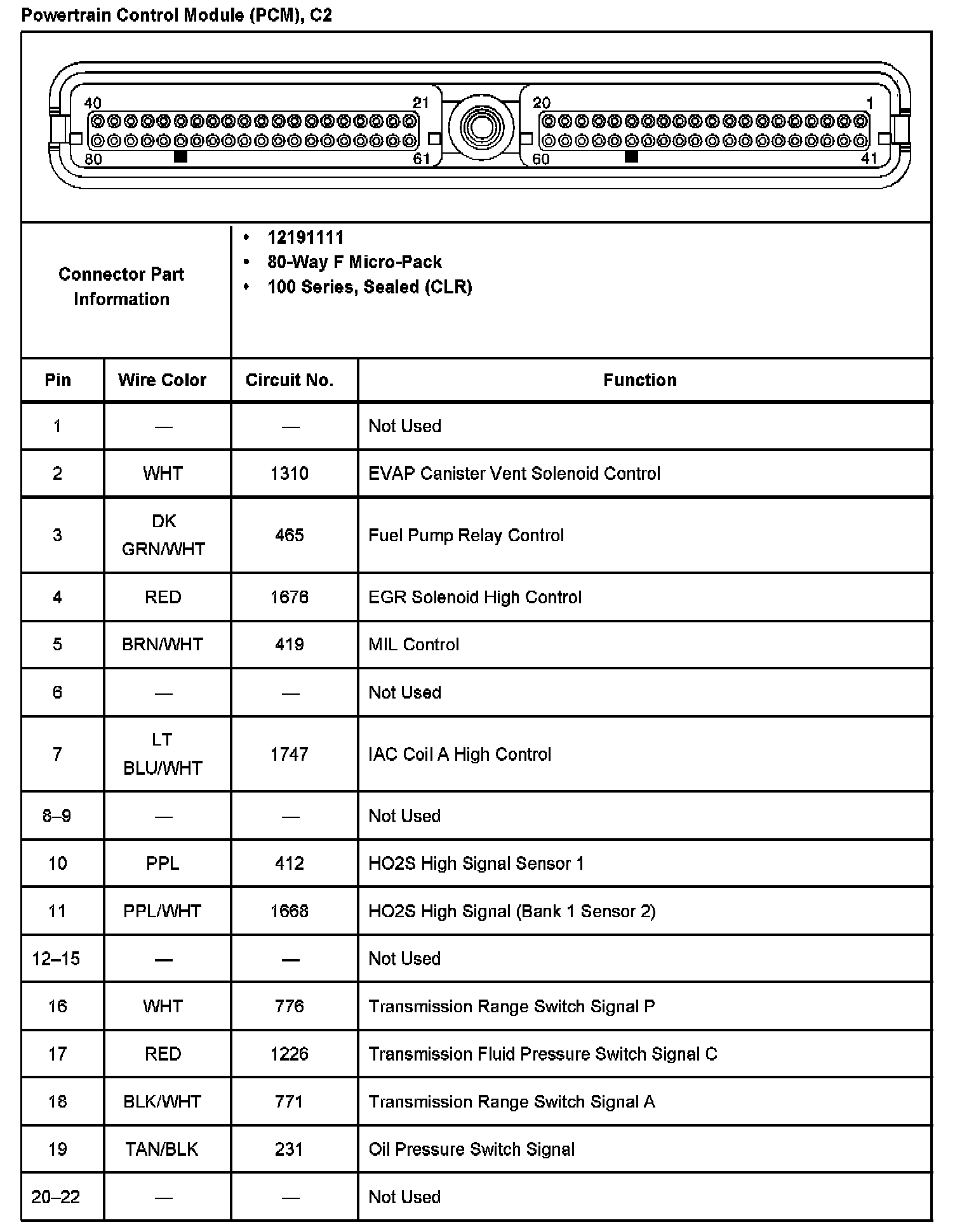

Powertrain Control Module (PCM) - C2 Part 1:



Powertrain Control Module (PCM) - C2 Part 2:



Powertrain Control Module (PCM) - C2 Part 3:



Powertrain Control Module (PCM) - C2 Part 4:
